Tripp Lite SRW15US SmartRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back

Tripp Lite SRW15US SmartRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW15US
  • EAN: 0059045602700 0373321838660
SmartRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Exertis IT 15U Switch-Depth WM Rack 10100350 Register free see stock
Northamber SmartRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back TLRAK0111

Related Products

Description

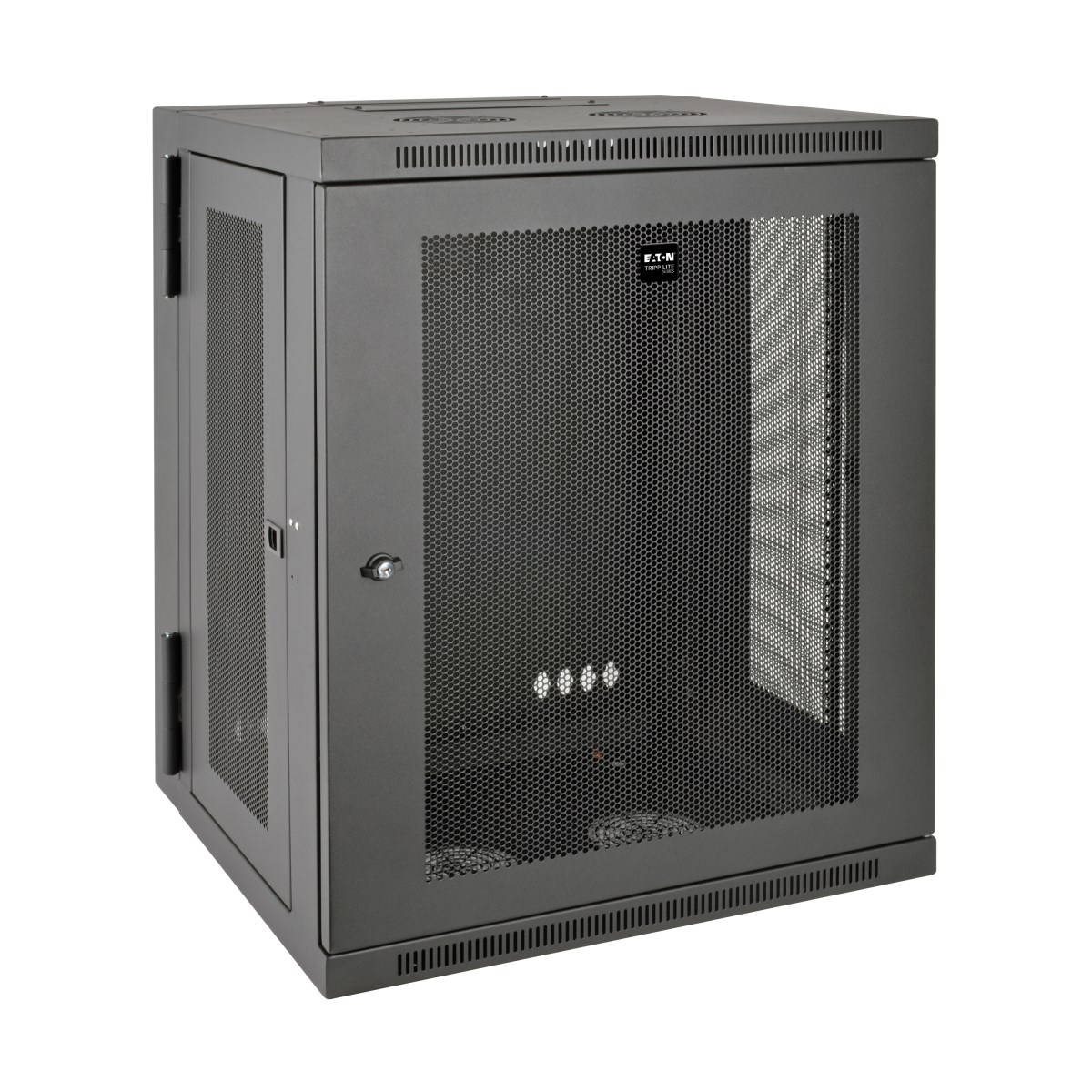

The SRW15US SmartRack® 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

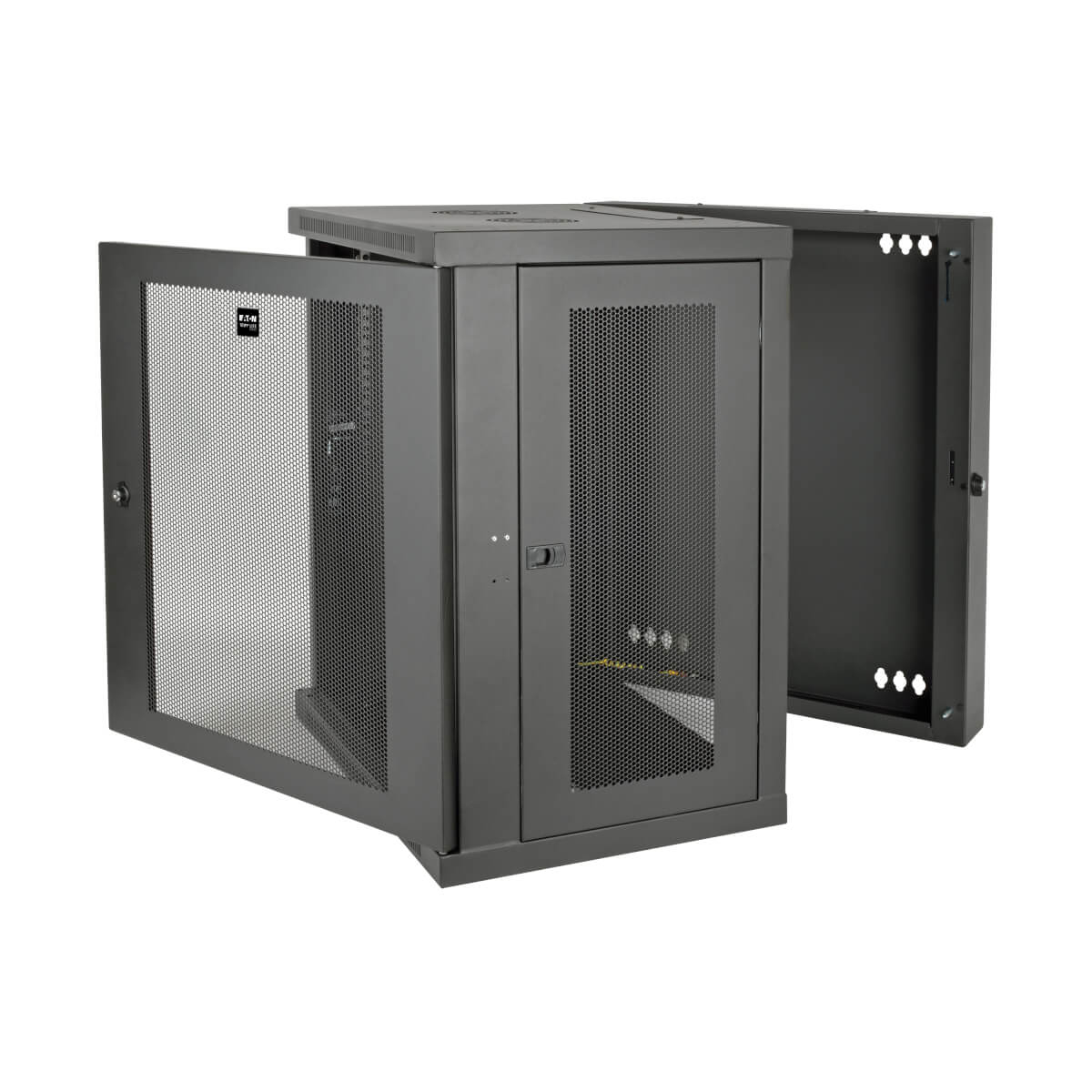

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

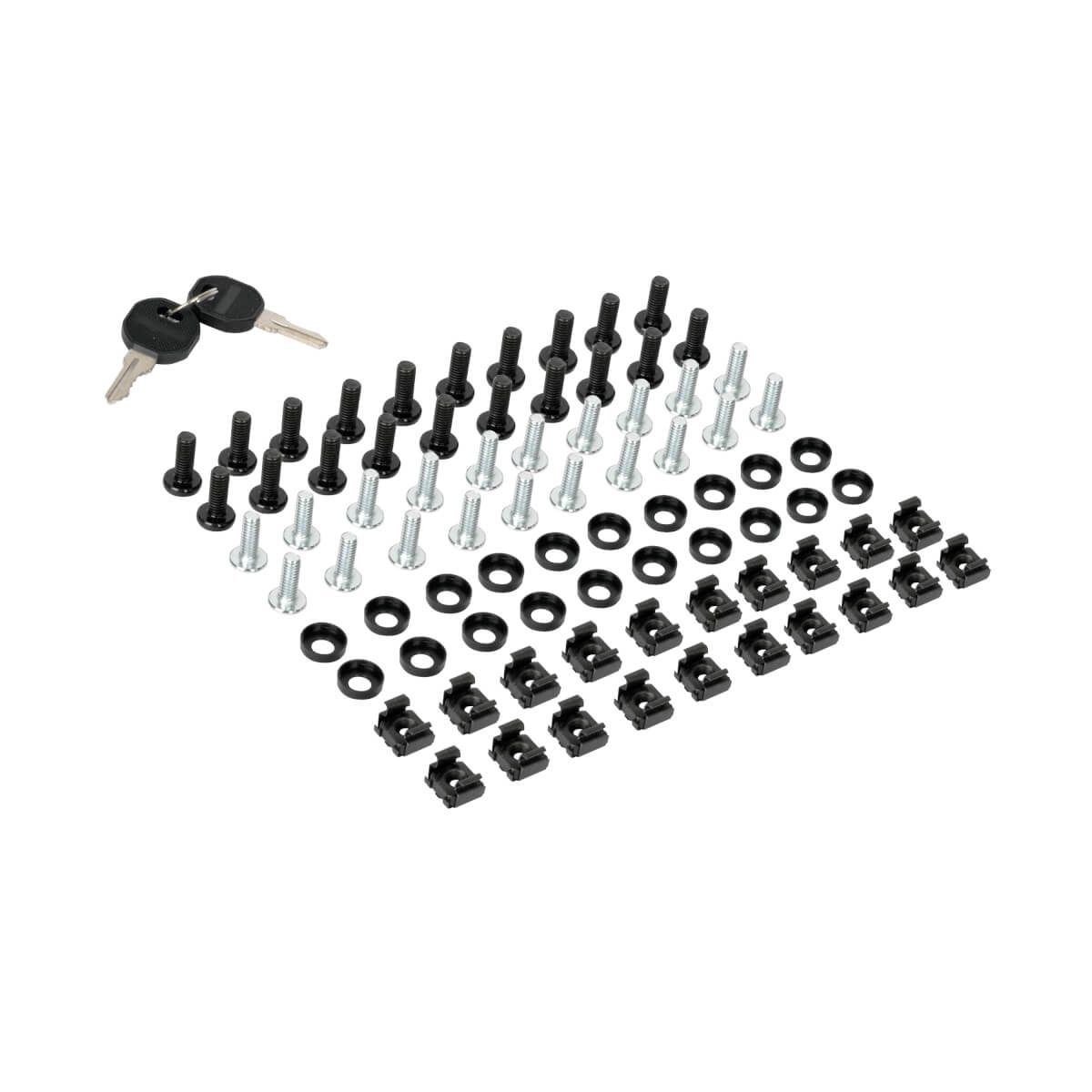

The SRW15US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

Specifications

Weight & dimensions
Package depth670.1 mm
Package width840 mm
Package height612.1 mm
Package weight33.1 kg
Width599.9 mm
Depth548.6 mm
Height770.4 mm
Weight33.1 kg
Maximum weight capacity102.1 kg
Features
Rack capacity15U
TypeWall mounted rack
Maximum weight capacity102.1 kg
Product colourBlack
CertificationNOM, EIA-310-E, IEC 60297-3-100, DIN 41494, IP20, RoHS
Packaging data
Package depth670.1 mm
Package width840 mm
Package height612.1 mm
Package weight33.1 kg
Technical details
Package width840 mm
Package height612.1 mm
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity15U
Colour
Product colourBlack
Certificates
CertificationNOM, EIA-310-E, IEC 60297-3-100, DIN 41494, IP20, RoHS
Logistics data
Master (outer) case width840 mm
Master (outer) case length670.1 mm
Master (outer) case height612.1 mm
Master (outer) case gross weight33.1 kg
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
