Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
TEG1016D 16 Ports Ethernet Switch |
34736 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £71.12 |
Description

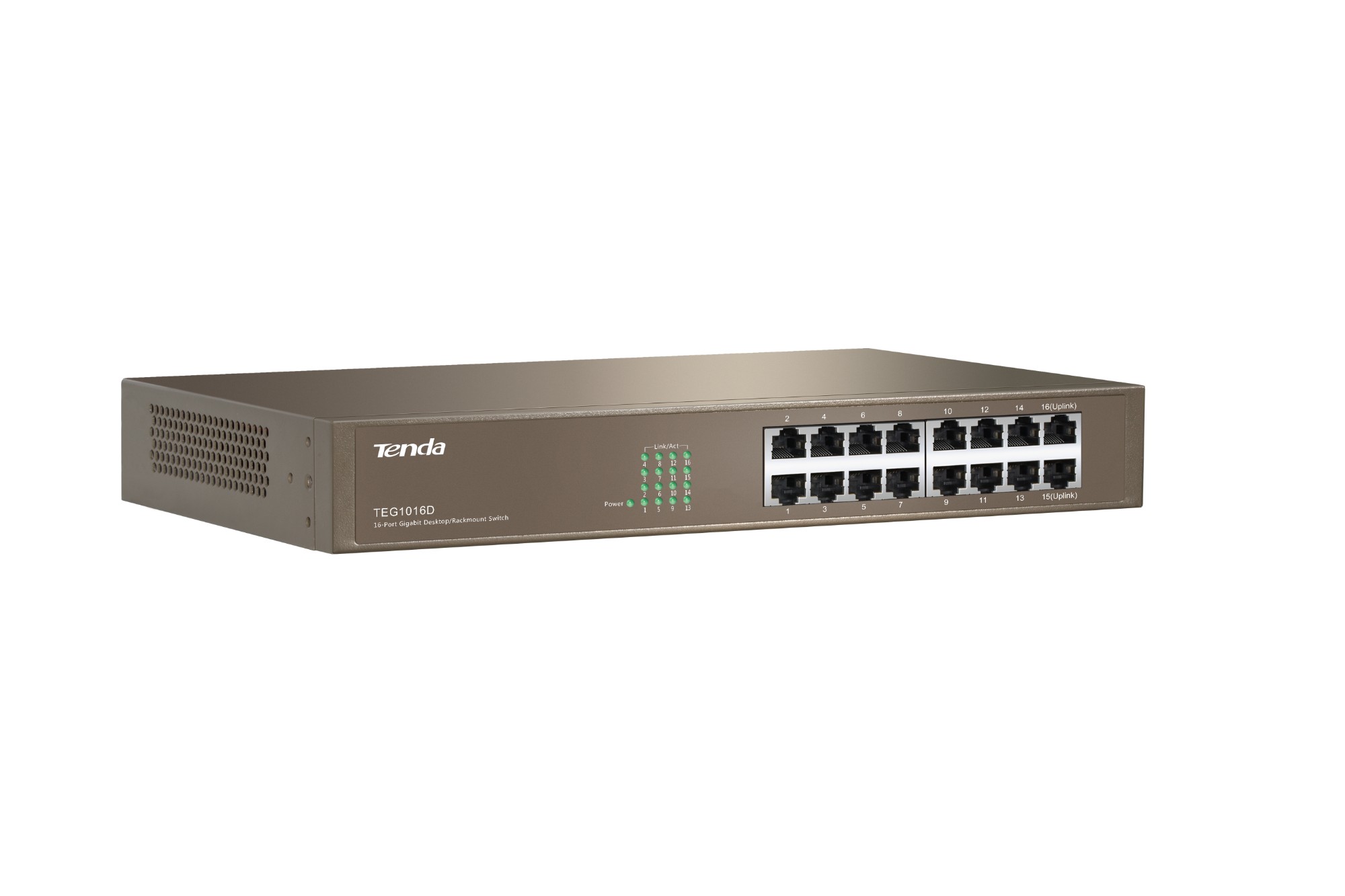

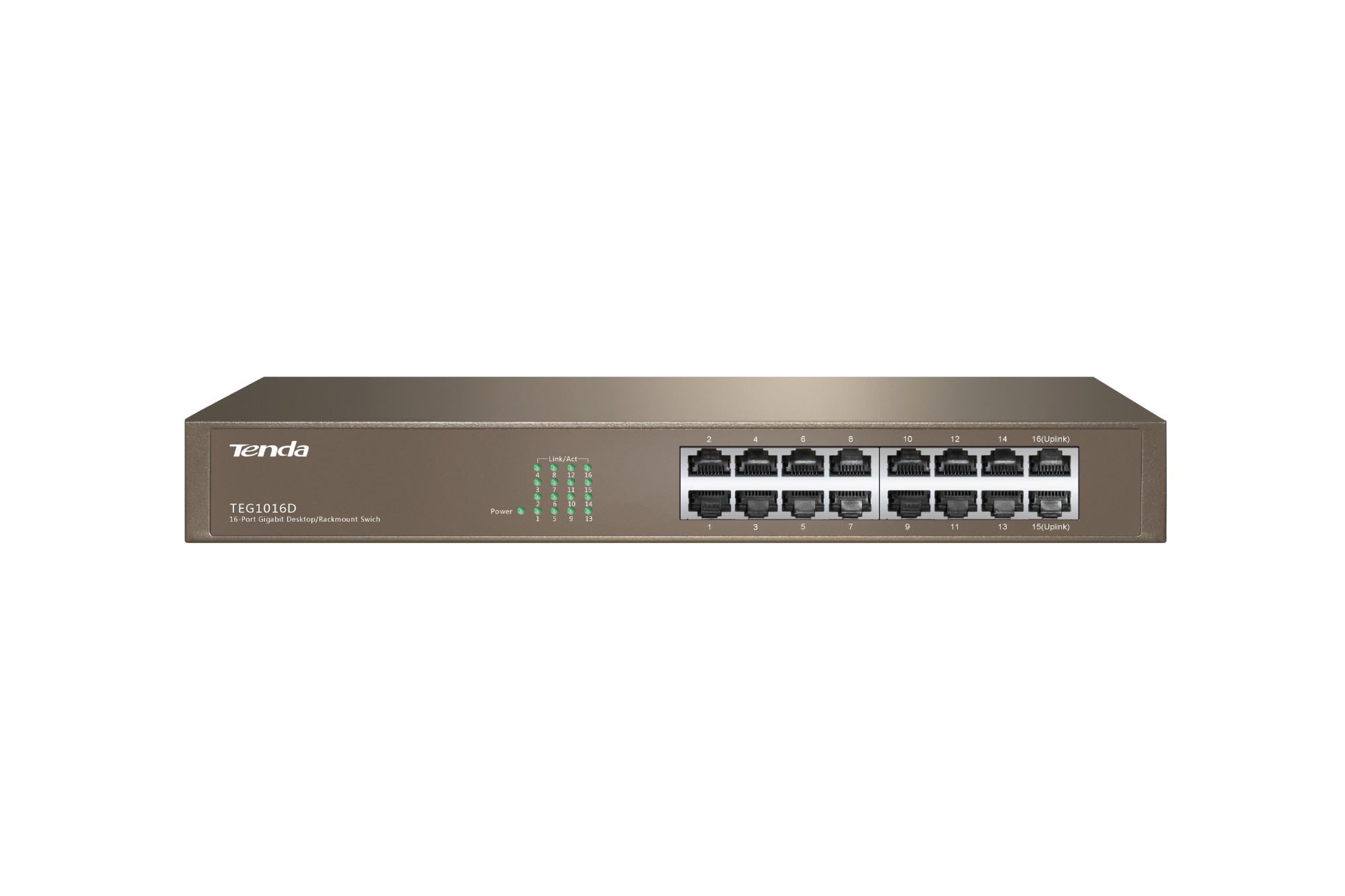

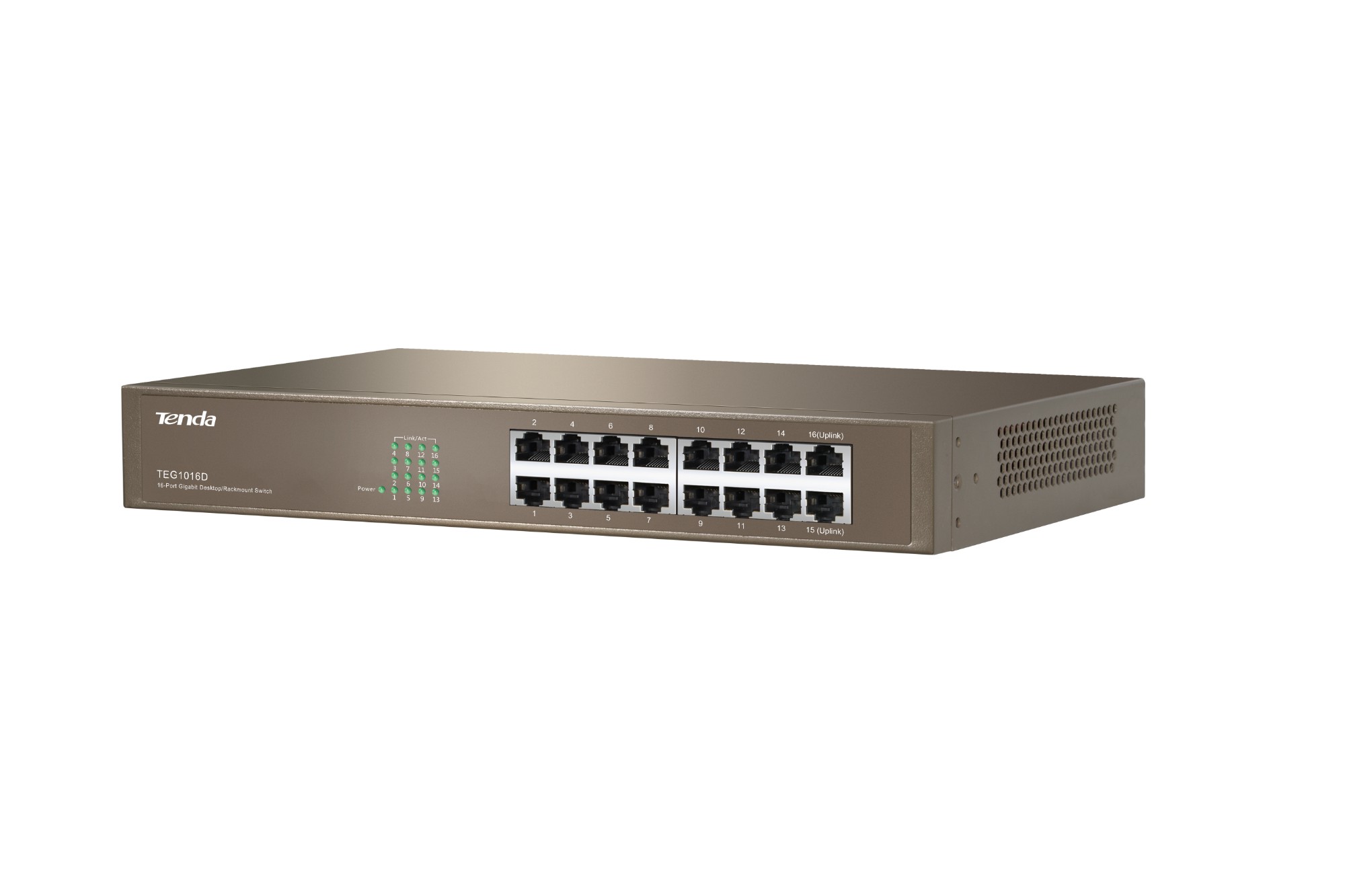

The TEG1016D and TEG1024D are a 16 and 24 port Gigabit switches respectively. They support auto MDI/MDIX, store-and-forward switching, and have an 8,000 MAC address table. The TEG1016D has a 32Gbps backplane bandwidth while the TEG1024D has a 48Gbps backplane bandwidth. They have compact 11” metal cases that are convenient to put on a desk or shelf for a small office network, but they are equally at home in a rack using the included 1U mounting kit.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Network | |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 32 Gbit/s |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Product colour | Blue |
| Stackable | Yes |
| Rack mounting | Yes |
| Certification | QA |
| Power | |
| Power consumption (typical) | 25 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Size (imperial) | 27.9 cm (11") |
| Power requirements | 100 - 240 V |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Connectivity LEDs | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Performance | |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Blue |
| Stackable | Yes |
| Rack mounting | Yes |
| Certificates | |
| Certification | QA |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
