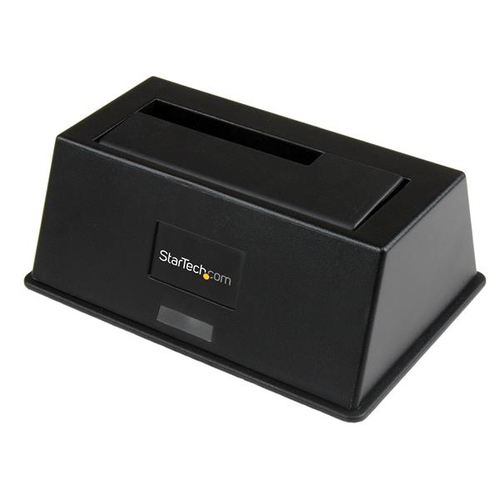

StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

  • Brand: StarTech.com
  • Category:
  • SKU: SDOCKU33BV
  • EAN: 0065030855303 4923113120259 03 ...3120259 0311484634378 0163121453930 0803982805416 0132018242124 0361733764424 0898029660561 4058829201746 5054629400272 5054533554849 0033628856230 0650308553038 5054484554844more
StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay (SDOCKU33BV)

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro ESTACI N ACOPLAMIENTO USB 3.0 V932990 Register free see stock
TD Synnex UK .com USB 3.0 SATA III Docking Station SSD / HDD with UASP - External Hot-Swap Dock w/ support for 2.5"/3.5" drives (SDOCKU33BV) - Storage controller - 2.5", 3.5" - SATA 6Gb/s - USB 3.0 - for P/N: SVA12M2NEUA, SVA12M5NA, USBDUP15, USBDUPE115, USBDUPE17 4428453
DSM Distribution USB 3.0 SATA III Docking Station SSD / HDD with UASP - External Hot-Swap Dock w/ support for 2.5"/3.5" drives (SDOCKU33BV) - Storage controller - 2.5", 3.5" - SATA 6Gb/s - USB 3.0 - for P/N: SVA12M2NEUA, SVA12M5NA, USBDUP15, USBDUPE115, USBDUPE17 V932990
EET USB 3.0 UAS HDD DOCK SDOCKU33BV
Ingram Micro CS ESTACI N ACOPLAMIENTO USB 3.0 V932990

Retail Prices

Merchant Product Condition Updated Price
Rapid Online - Rapid Electronics Ltd. StarTech.com SDOCKU33BV USB 3.0 To SATA 6Gbps Hard Drive Docking S... New 3452 hours ago £67.20
Amazon New 1764 hours ago £58.59
Amazon New 1764 hours ago £58.59

Description

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

Specifications

Hard drive
Storage media typeHDD, SSD
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of storage drives supported1
Ports & interfaces
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity1
DC-in jackYes
Technical details
UASP supportYes
Package width161 mm
Package height94 mm
Standard interfacesUSB 3.2 Gen 1 (3.1 Gen 1)
Maximum data transfer rate6 Gbit/s
Plug and PlayYes
On/off switchYes
ChipsetASMedia - ASM1053 - 6G
Sustainability complianceYes
Harmonized System (HS) code84733080
Compliance certificatesCE, RoHS
Features
UASP supportYes
Maximum data transfer rate6 Gbit/s
LED indicatorsActivity, Power
Plug and PlayYes
On/off switchYes
ChipsetASMedia - ASM1053 - 6G
Cooling
Built-in fanNo
Power
AC input voltage100-240 V
Output voltage12 V
Weight & dimensions
Weight318 g
Packaging data
Package depth170 mm
Package width161 mm
Package height94 mm
Package dimensions (WxDxH)92 x 160 x 170 mm
Package weight704 g
Packaging content
Included power plug typesEU, NA, UK
AC adapter includedYes
Cables includedUSB
ManualYes
Operational conditions
Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%
Indication
LED indicatorsActivity, Power
Ethernet LAN features
LED indicatorsActivity, Power
Sustainability
Sustainability complianceYes
Other features
Standard interfacesUSB 3.2 Gen 1 (3.1 Gen 1)
ChipsetASMedia - ASM1053 - 6G
Compliance certificatesCE, RoHS
Logistics data
Master (outer) case width187 mm
Master (outer) case length476 mm
Master (outer) case height387 mm
Products per master (outer) case10 pc(s)
Harmonized System (HS) code84733080
