StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)
- Brand: StarTech.com
- Category:
- SKU: SV831DUSBAU
- EAN: 0065030837248 0092281809946 50 ...1809946 5052883870602 0065030832526 0013040012025 5054533324473 0132017610207more
StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
8 Port Rack Mount USB VGA KVM Switch w/ Audio (Audio Cables Included) | 10011667 | ||||
8 PORT RACK MOUNT USB VGA KVM | V931226 | ||||
.com 8 Port VGA KVM Switch - 1U Rack Mount - USB VGA KVM Switch with Audio - 1920 x 1440 @60hz - KVM Video Switch (SV831DUSBAU) - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop - for P/N: RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RKCONS | 4672696 | ||||
8 Port Rack Mount USB VGA KVM Switch w/ Audio (Audio Cables Included) | SV831DUSBAU | ||||
8 Port VGA KVM Switch - 1U Rack Mount - USB VGA KVM Switch with Audio - 1920 x 1440 @60hz - KVM Video Switch (SV831DUSBAU) - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop - for P/N: RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RKCONS1701, | V931226 | ||||
8 Port Rack Mount USB VGA KVM Switch w/ Audio (Audio Cables Included) | SV831DUSBAU | ||||
8 PORT USB VGA KVM SWITCH | SV831DUSBAU | ||||
Ingram Micro CS | 8 PORT RACK MOUNT USB VGA KVM | V931226 |
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Currys Business | StarTech.com 8 Port VGA KVM Switch - 1U Rack Mount - USB VGA KVM Switch with Audio - 1920 x 1440 @60hz - KVM Video Switch (SV831DUSBAU) - KVM / audio switch - 8 ports | New | 1480 hours ago | £385.18 |
Amazon | New | £349.98 | ||
Amazon | New | £406.29 | ||
Amazon | New | £367.66 | ||
Amazon | New | £417.88 | ||
Amazon | New | £367.66 | ||
Amazon | New | £336.69 | ||
Amazon | New | £336.69 | ||
Amazon | New | £469.70 | ||
Amazon | New | £387.59 | ||
Amazon | New | £387.59 | ||
Amazon | New | £406.29 | ||
Amazon | New | £469.70 | ||
Amazon | New | £349.98 | ||
Amazon | New | £417.88 |
Related Products
Description

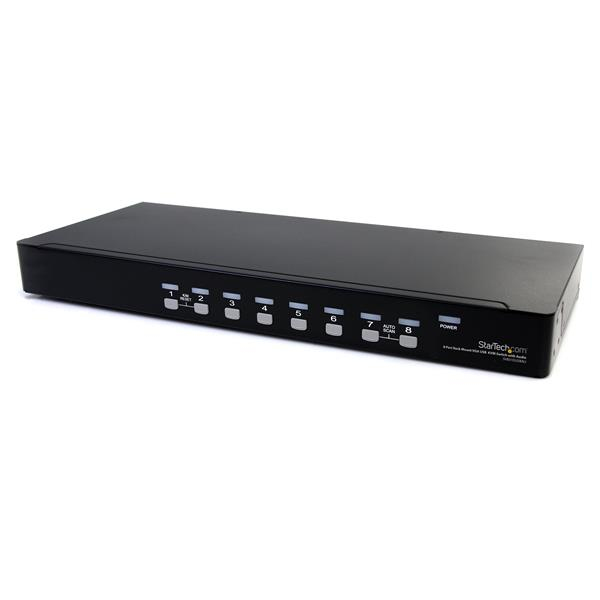

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

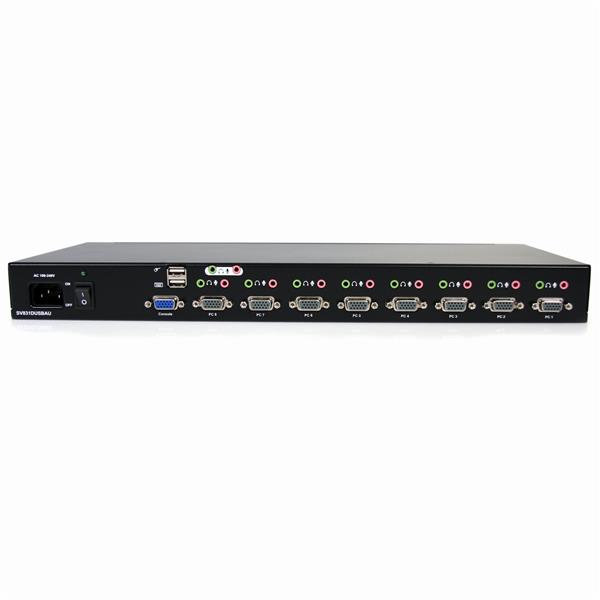

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

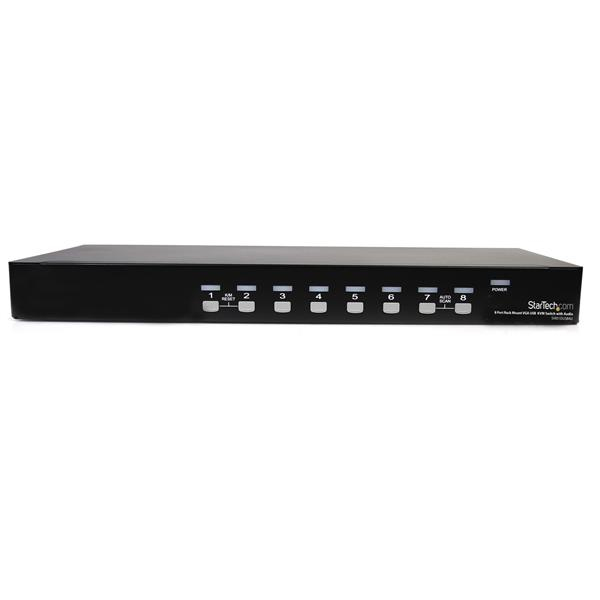

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
Specifications
Ports & interfaces | |
---|---|
Console USB ports quantity | 2 |
Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
USB connector type | USB Type-A |
Number of microphone inputs | 8 |
Number of computers controlled | 8 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | VGA |
USB 2.0 ports quantity | 2 |
Headphone outputs | 8 |
DC-in jack | Yes |
Performance | |
Daisy chain | Yes |
Plug and Play | Yes |
Maximum resolution | 1920 x 1440 pixels |
Number of users | 1 user(s) |
Maximum analog resolution | 1920 x 1440 pixels |
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
On Screen Display (OSD) | Yes |
Number of users | 1 user(s) |
LED indicators | Yes |
IP control | No |
Audio support | Yes |
Cascadable | Yes |
Compliance certificates | RoHS |
Design | |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Yes |
Certification | CE, FCC, UL |
Cascadable | Yes |
Rack capacity | 1U |
Housing material | Steel |
Display | |
On Screen Display (OSD) | Yes |
Power | |
Input current | 1.8 A |
Output current | 4 A |
Power plug type | Type M |
Output voltage | 12 V |
Power consumption (typical) | 48 W |
Input voltage | 110-240 V |
Video | |
Maximum resolution | 1920 x 1440 pixels |
Maximum analog resolution | 1920 x 1440 pixels |
Sustainability | |
Compliance certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 5 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Width | 540 mm |
Depth | 180 mm |
Height | 45 mm |
Weight | 2.6 kg |
Package width | 123 mm |
Package depth | 591 mm |
Package height | 264 mm |
Package weight | 4.7 kg |
Packaging data | |
Package width | 123 mm |
Package depth | 591 mm |
Package height | 264 mm |
Package weight | 4.7 kg |
Packaging content | |
Rubber feet | Yes |
Cables included | AC |
Manual | Yes |
AC adapter included | Yes |
Certificates | |
Certification | CE, FCC, UL |
Other features | |
IP control | No |
Audio support | Yes |
Logistics data | |
Harmonized System (HS) code | 85176200 |
