StarTech.com 4-Port Multi Monitor Adapter - DisplayPort 1.2 MST Hub - 4x 1080p - DisplayPort Video Splitter for Extended Desktop Mode on Windows PCs Only - DP to Quad DP Monitors
- Brand: StarTech.com
- Category:
- SKU: MSTDP124DP
- EAN: 0065030860581 5054629765081
StarTech.com 4-Port Multi Monitor Adapter - DisplayPort 1.2 MST Hub - 4x 1080p - DisplayPort Video Splitter for Extended Desktop Mode on Windows PCs Only - DP to Quad DP Monitors (MSTDP124DP)
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
MST hub DisplayPort to 4x DisplayPort | 10050312 | ||||
DP TO DP MULTI MONITOR ADAPTER | V933451 | ||||
.com 4-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, 4x 1080p, Video Splitter for Extended Desktop Mode on Windows PCs Only, DP to Quad DP Monitors MST Hub - DP Multi Stream Transport Hub (MSTDP124DP) - Video splitter - 4 x DisplayPort - desktop - | 4462432 | ||||
MST hub DisplayPort to 4x DisplayPort | MSTDP124DP | ||||
4-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, 4x 1080p, Video Splitter for Extended Desktop Mode on Windows PCs Only, DP to Quad DP Monitors MST Hub - DP Multi Stream Transport Hub (MSTDP124DP) - Video splitter - 4 x DisplayPort - desktop - for P | V933451 | ||||
MST Hub DisplayPort to 4 Port | 8STMSTDP124DP | ||||
Ingram Micro CS | DP TO DP MULTI MONITOR ADAPTER | V933451 |
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £198.46 | ||
Amazon | New | £140.71 | ||
Amazon | New | £152.17 | ||
Amazon | New | £214.61 | ||
Amazon | New | £194.38 | ||
Amazon | New | £146.73 | ||
Amazon | New | £158.26 | ||
Amazon | New | £152.16 | ||
Amazon | New | £167.99 | ||
Amazon | New | £203.00 | ||
Amazon | New | £140.18 | ||
Novatech Ltd | StarTech.com MST Hub - DisplayPort to 4x DisplayPort - Multi Stream Transport Hub - DP 1.2 to DP - 3840 × 2160 - DisplayPort | New | 1754 hours ago | £84.85 |
Rapid Online - Rapid Electronics Ltd. | StarTech.com MSTDP124DP MST Hub - DisplayPort To 4x DisplayPort | New | 4130 hours ago | £143.41 |
Currys Business | StarTech.com 4-Port Multi Monitor Adapter, DisplayPort 1.2 MST Hub, 4x 1080p, Video Splitter for Extended Desktop Mode on Windows PCs Only, DP to Quad DP Monitors MST Hub - DP Multi Stream Transport Hub (MSTDP124DP) - video splitter - 4 ports | New | 1730 hours ago | £86.38 |
Related Products
Description

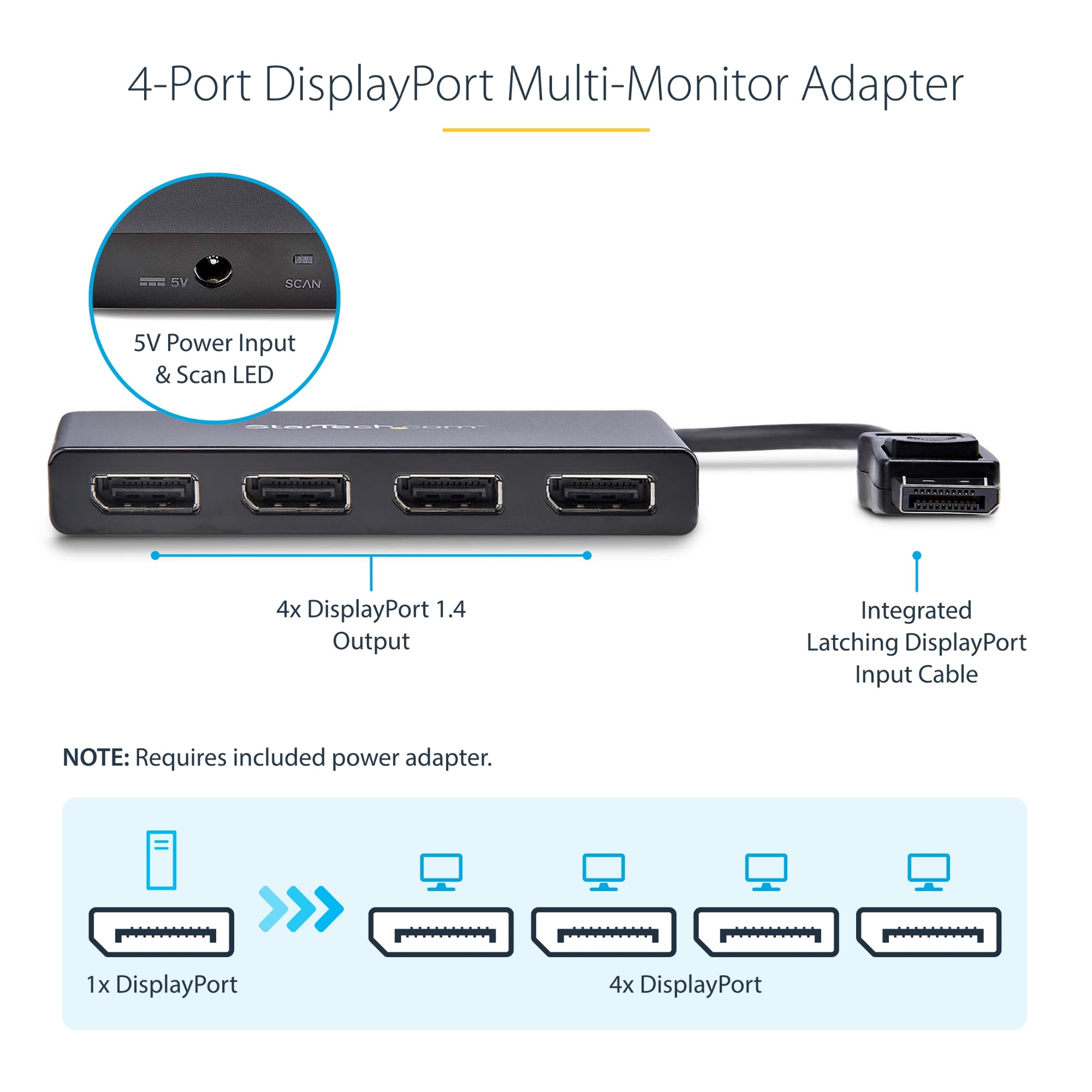

Use this adapter to connect four independent displays to a single DP 1.2 port
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

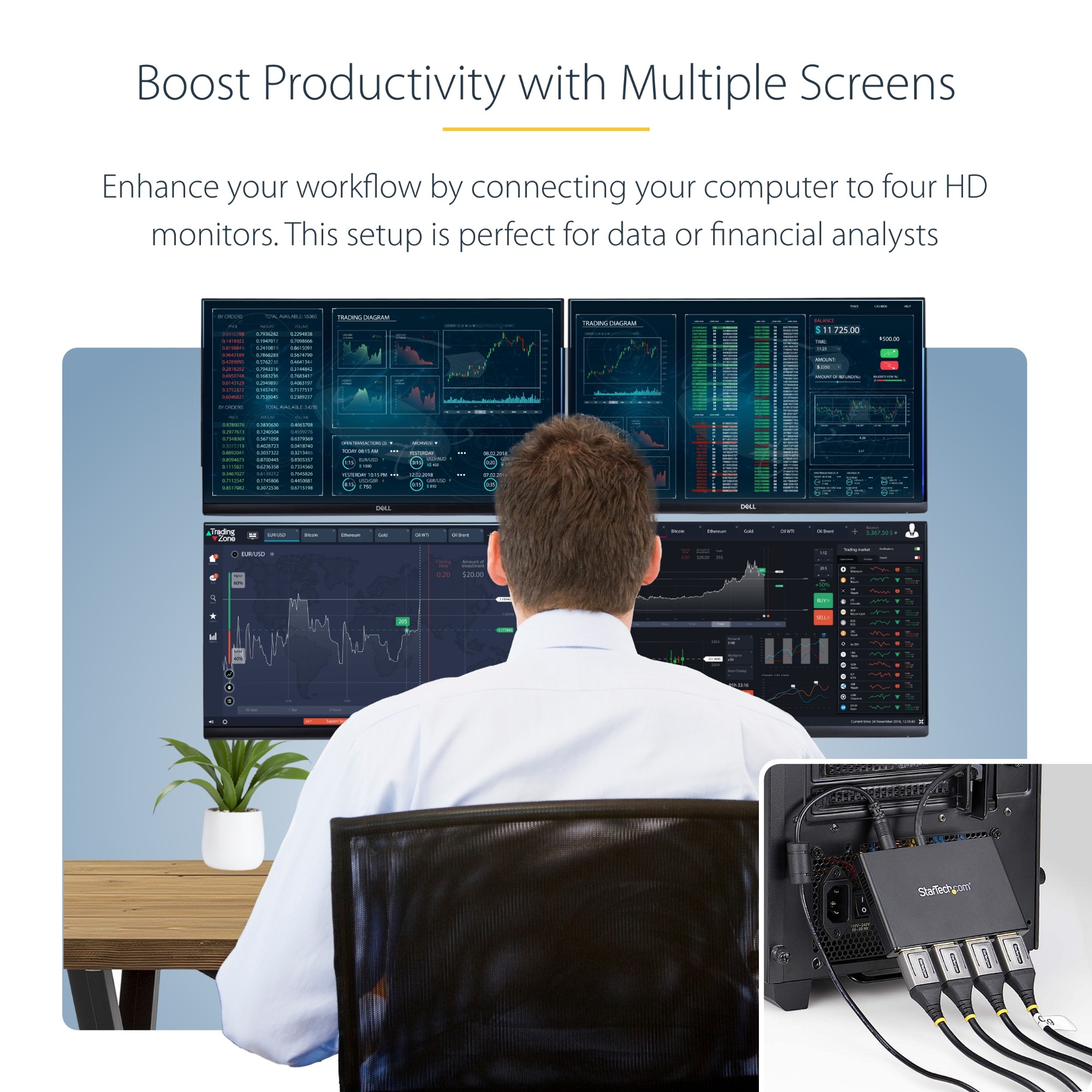

Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

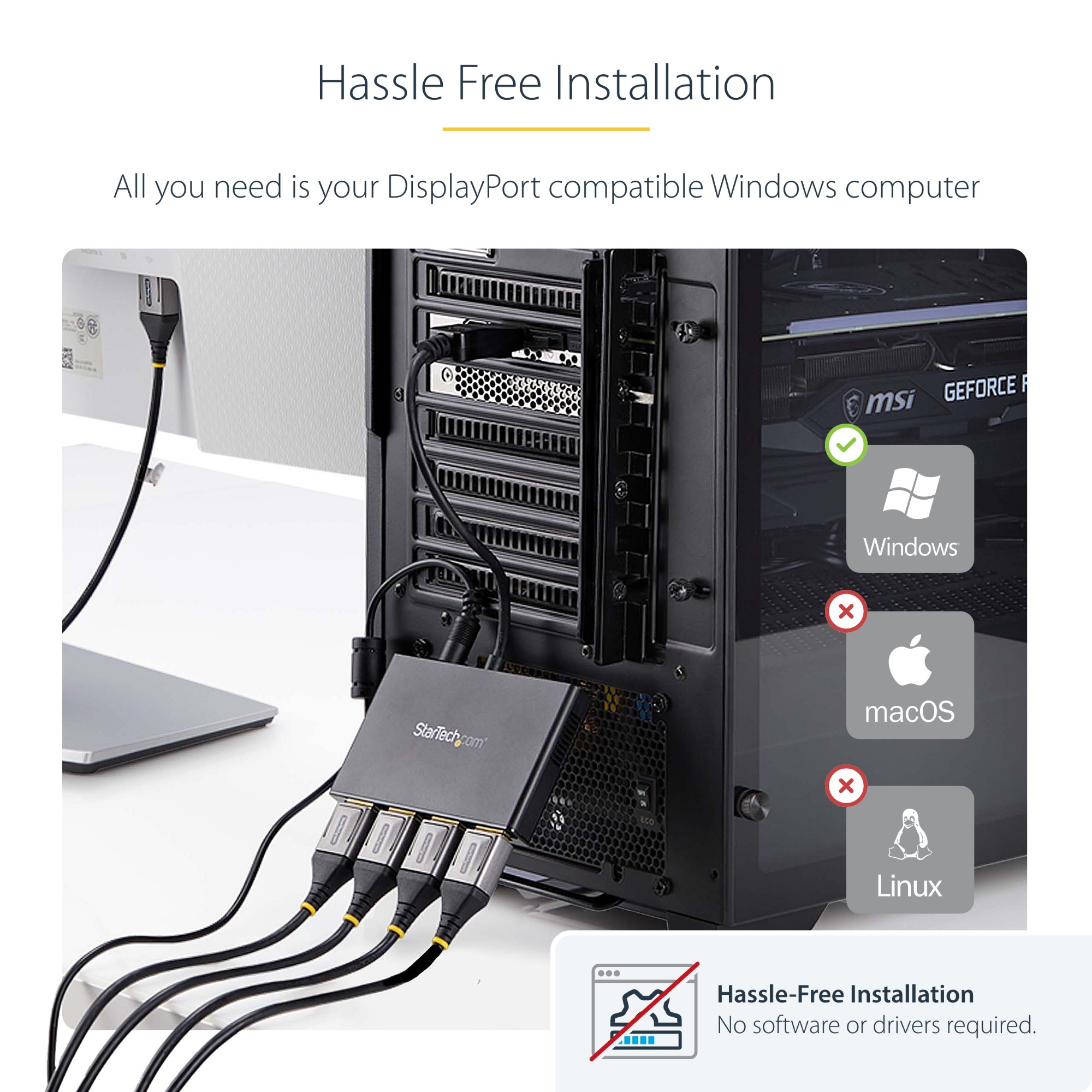

The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.

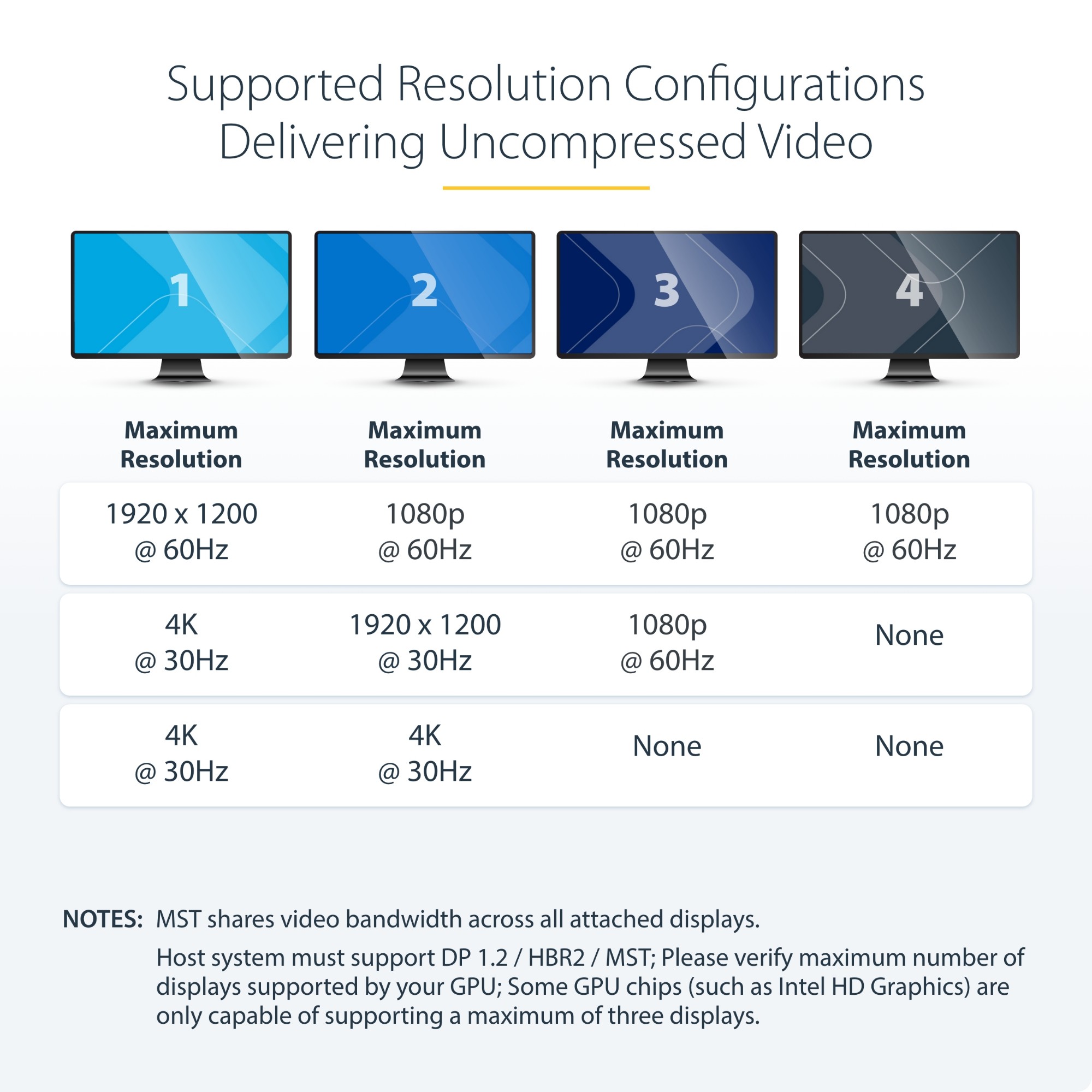

Examples of supported resolution configurations:
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
88%
1920x1200 @60hz (30%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
96%
3840x2160 @30hz (38%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
off
82%
3840x2160 @30hz (38%)
1920x1200 @30hz (30%)
1920x1080 @60hz (22%)
off
90%
Examples of unsupported resolution configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
136%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
136%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
141%
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
off
114%
The StarTech.com Advantage
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of supported resolution configurations:
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
88%
1920x1200 @60hz (30%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
96%
3840x2160 @30hz (38%)
1920x1080 @60hz (22%)
1920x1080 @60hz (22%)
off
82%
3840x2160 @30hz (38%)
1920x1200 @30hz (30%)
1920x1080 @60hz (22%)
off
90%
Examples of unsupported resolution configurations
Screen 1 Resolution
Screen 2 Resolution
Screen 3 Resolution
Screen 4 Resolution
Total % of Bandwidth
2560x1600 @60hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
136%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
1920x1200 @60hz (30%)
1920x1200 @60hz (30%)
136%
3840x2160 @30hz (38%)
2560x1600 @60hz (38%)
2560x1440 @60hz (35%)
1920x1200 @60hz (30%)
141%
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
3840x2160 @30hz (38%)
off
114%
The StarTech.com Advantage
Specifications
Ports & interfaces | |
---|---|
Video ports quantity | 4 |
Video port type | DisplayPort |
Video out | 4x DisplayPort |
DC-in jack | Yes |
Features | |
Housing material | Plastic |
Maximum refresh rate | 30 Hz |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
Maximum resolution | 3840 x 2160 pixels |
Plug and Play | Yes |
Product colour | Black |
Certification | CE, FCC, RoHS |
Power | |
Input current | 0.5 A |
Output current | 3 A |
Power consumption (typical) | 15 W |
Output voltage | 5 V |
AC input voltage | 110 - 240 V |

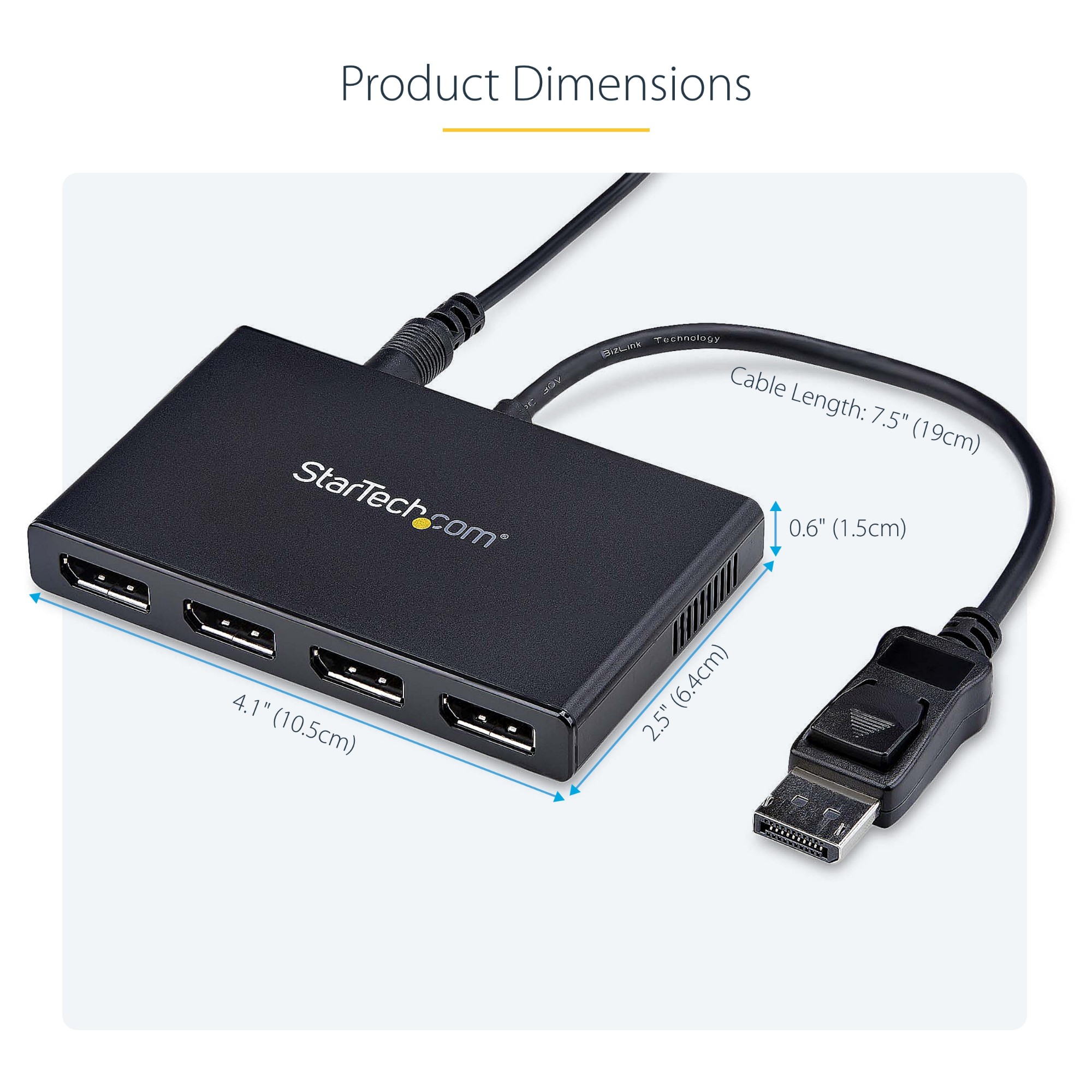

Weight & dimensions | |
Weight | 129 g |
Width | 65 mm |
Depth | 386 mm |
Height | 15 mm |
Package weight | 527 g |
Package depth | 152 mm |
Package width | 241 mm |
Package height | 64 mm |
Packaging data | |
Package weight | 527 g |
Package depth | 152 mm |
Package width | 241 mm |
Package height | 64 mm |

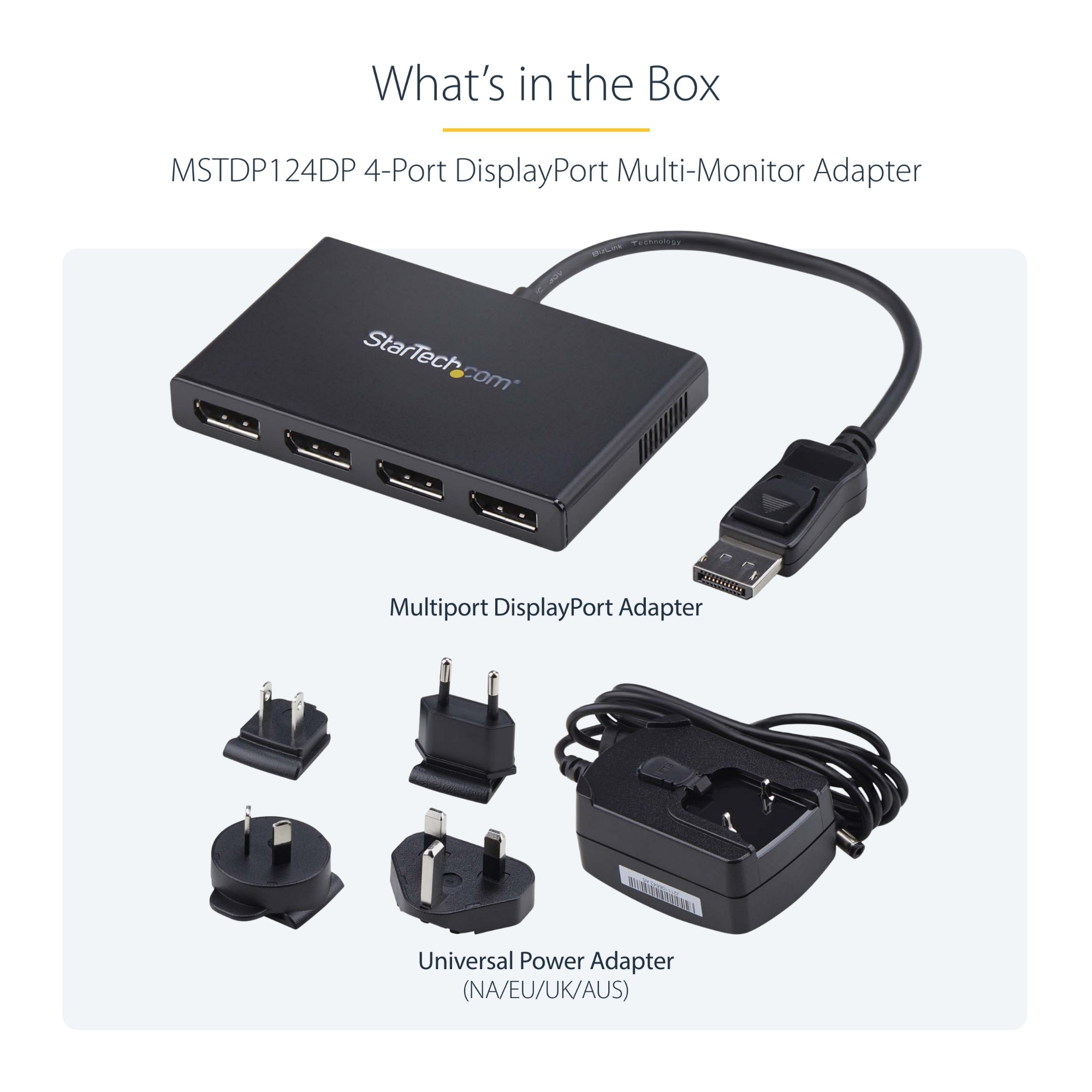

Packaging content | |
AC adapter included | Yes |
Included power plug types | AU, EU, NA, UK |
Manual | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -20 - 70 °C |
Video | |
Maximum refresh rate | 30 Hz |
Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
Maximum resolution | 3840 x 2160 pixels |
Colour | |
Product colour | Black |
Certificates | |
Certification | CE, FCC, RoHS |
Technical details | |
Housing material | Plastic |
Package width | 241 mm |
Package height | 64 mm |
Video out | 4x DisplayPort |
Plug and Play | Yes |
Compliance certificates | RoHS |
System requirements | |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Logistics data | |
Master (outer) case width | 336 mm |
Master (outer) case length | 501 mm |
Master (outer) case height | 227 mm |
Products per master (outer) case | 10 pc(s) |
Harmonized System (HS) code | 85176990 |
