StarTech.com 2 Port Wall Mountable USB to Serial Adapter Hub with COM Retention
- Brand: StarTech.com
- Category:
- SKU: ICUSB2322X
- EAN: 0172302821482 4058829197797 08 ...9197797 0851975713088 5054629106051 0763615893893 0132018345658 0792043293333 7426801339379 0999994689721 5051964510277 0191120112336 5054484147336 0168141638909 0065030831734 0650308317340more
StarTech.com USB to Serial Adapter - 2 Port - Wall Mount - COM Port Retention - Texas Instruments - USB to Serial RS232 Adapter
Offer details
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £29.73 |
Related Products
Description
Add 2 serial RS-232 ports to any laptop or computer with a USB port

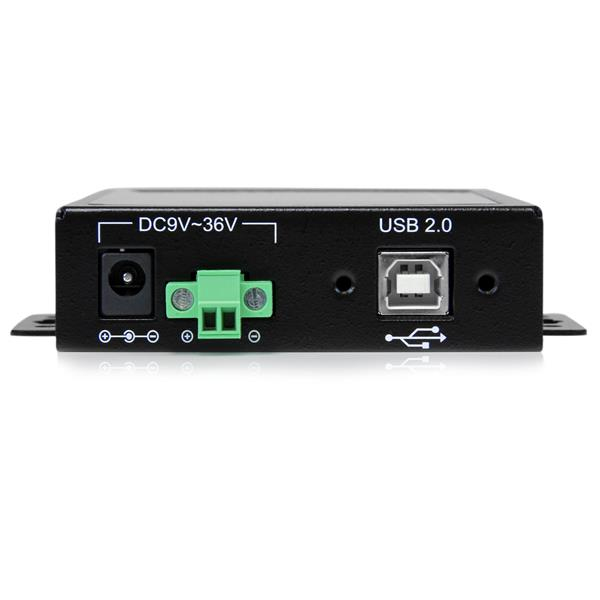

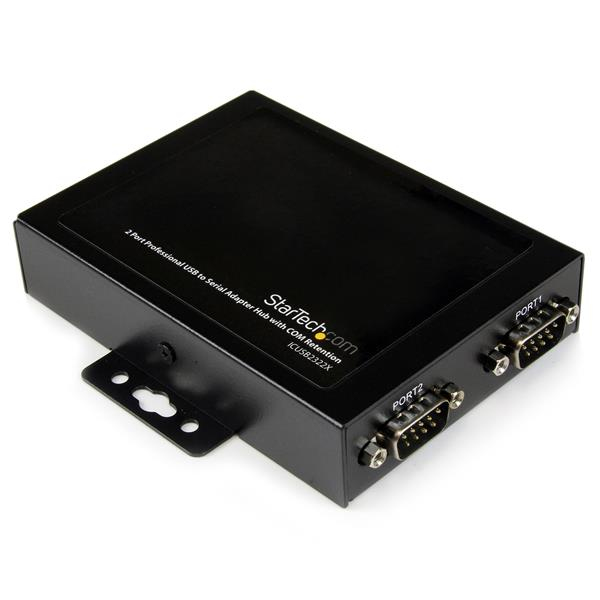

The ICUSB2322X 2 Port Professional Grade USB Serial Adapter converts a single USB port to two RS232 serial ports allowing you to connect to, monitor and control your serial devices. Rugged metal construction and sturdy wall-mount brackets provide a robust solution for both harsh industrial environments and simple desktop installations. Powered by USB, the device does not require a power outlet for most standard applications. For installations requiring more power through the RS232 ports, the hub supports connection of an external power adapter (not included) to the integrated DC jack or terminal block. Once connected, the adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the ports provided by the adapter in the event it is disconnected, then re-connected to the host computer. This innovative Serial adapter offers a professional grade solution for connecting legacy or industrial RS232 serial devices to more modern computers, or computers with unused USB ports – perfect for connecting serial modems, barcode scanners or any device with serial sync through USB, eliminating the expense of upgrading serial peripherals for USB compatibility. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Multiple ports with COM port retention give you hassle-free control of several serial devices without having to remember where each one was last connected
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation with our USB Powered adapter - no power outlet required
The ICUSB2322X 2 Port Professional Grade USB Serial Adapter converts a single USB port to two RS232 serial ports allowing you to connect to, monitor and control your serial devices. Rugged metal construction and sturdy wall-mount brackets provide a robust solution for both harsh industrial environments and simple desktop installations. Powered by USB, the device does not require a power outlet for most standard applications. For installations requiring more power through the RS232 ports, the hub supports connection of an external power adapter (not included) to the integrated DC jack or terminal block. Once connected, the adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the ports provided by the adapter in the event it is disconnected, then re-connected to the host computer. This innovative Serial adapter offers a professional grade solution for connecting legacy or industrial RS232 serial devices to more modern computers, or computers with unused USB ports – perfect for connecting serial modems, barcode scanners or any device with serial sync through USB, eliminating the expense of upgrading serial peripherals for USB compatibility. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Multiple ports with COM port retention give you hassle-free control of several serial devices without having to remember where each one was last connected
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation with our USB Powered adapter - no power outlet required
Specifications
Ports & interfaces | |
---|---|
Host interface | USB 2.0 Type-B |
RS-232 ports | 2 |
Hub interfaces | Serial |
Ports quantity | 2 |
Features | |
Product colour | Black |
Certification | RoHS, CE, FCC |
Housing material | Steel |
Host interface | USB 2.0 Type-B |
Power | |
Power plug type | Type N |
Input voltage | 9 - 36 V |
Technical details | |
Product colour | Black |
Performance | |
Certification | RoHS, CE, FCC |
Harmonized System (HS) code | 84719000 |
System requirements | |
Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Weight & dimensions | |
Weight | 300 g |
Width | 80 mm |
Depth | 113 mm |
Height | 23 mm |
Package width | 143 mm |
Package depth | 203 mm |
Package height | 42 mm |
Package weight | 450 g |
Packaging data | |
Package width | 143 mm |
Package depth | 203 mm |
Package height | 42 mm |
Package weight | 450 g |
Packaging content | |
Manual | Yes |
Cables included | USB |
Design | |
Product colour | Black |
Certification | RoHS, CE, FCC |
Operational conditions | |
Operating temperature (T-T) | -10 - 80 °C |
Storage temperature (T-T) | -20 - 100 °C |
Operating relative humidity (H-H) | 5 - 85% |
Certificates | |
Certification | RoHS, CE, FCC |
Logistics data | |
Harmonized System (HS) code | 84719000 |
Other features | |
Chipset | Texas Instruments - TIUSB3410 |
