Sharkoon S90 Processor All-in-one liquid cooler 12 cm White 1 pc(s)
- Brand: Sharkoon
- Category:
- SKU: 4044951038619
- EAN: 4044951038619
Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2011-3 / 2066 (Core i3 / i5 / i7 / i9 ) AMD TR4 / TRX4 / AM5 / AM4 / AM2 / FM2 / FM1 / AM3+ / AM2+ / AM2, Aluminium Alloy, Ø 71.5 mm x 52.3 mm, 1,600 ~ 3,200 rpm ± 6 %, 12 V, 0.35A, Brazed Radiator 392 x 121 x 27.5 mm, 3 x 120 x 120 x 25 mm, 600 ~ 2,000 rpm ± 10 %, 131.93 m³/h, 2.90 mmH₂O, 35 dB(A)
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £166.74 | ||
| Amazon | New | £206.00 | ||
| Amazon | New | £112.56 |
Description

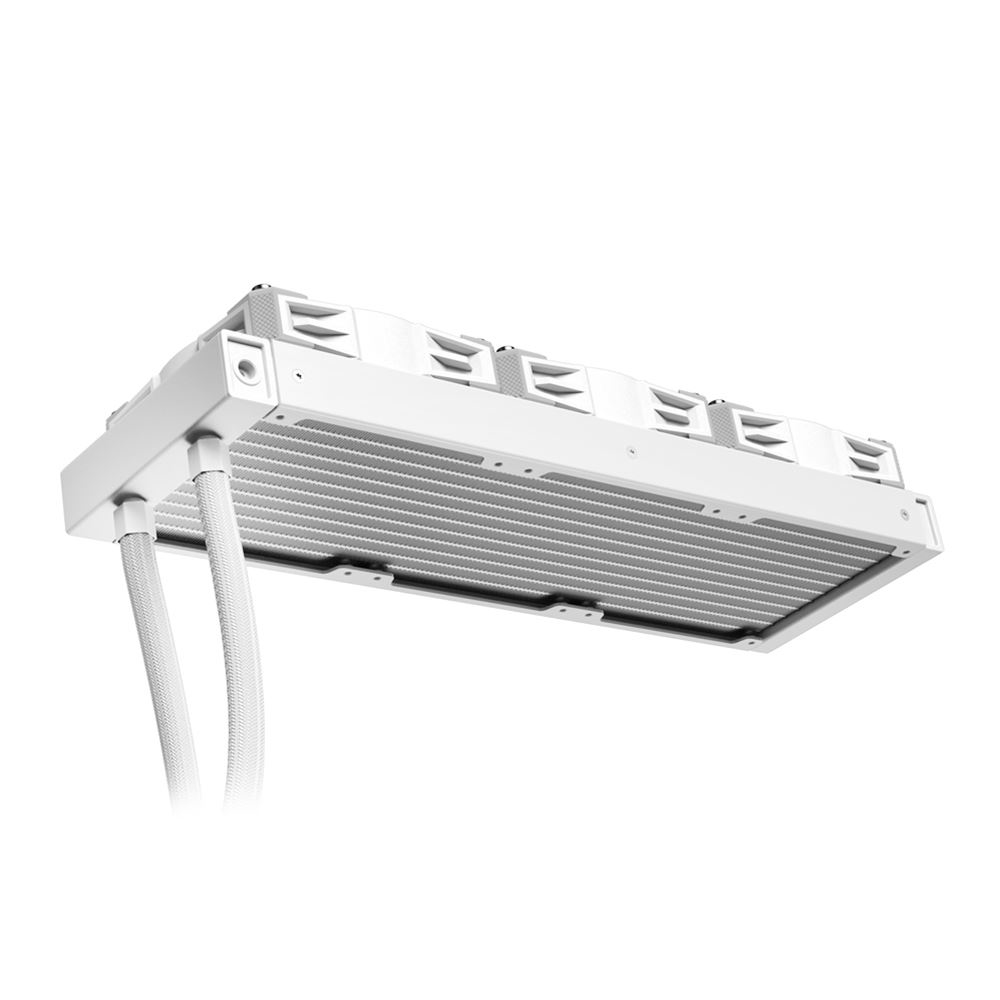

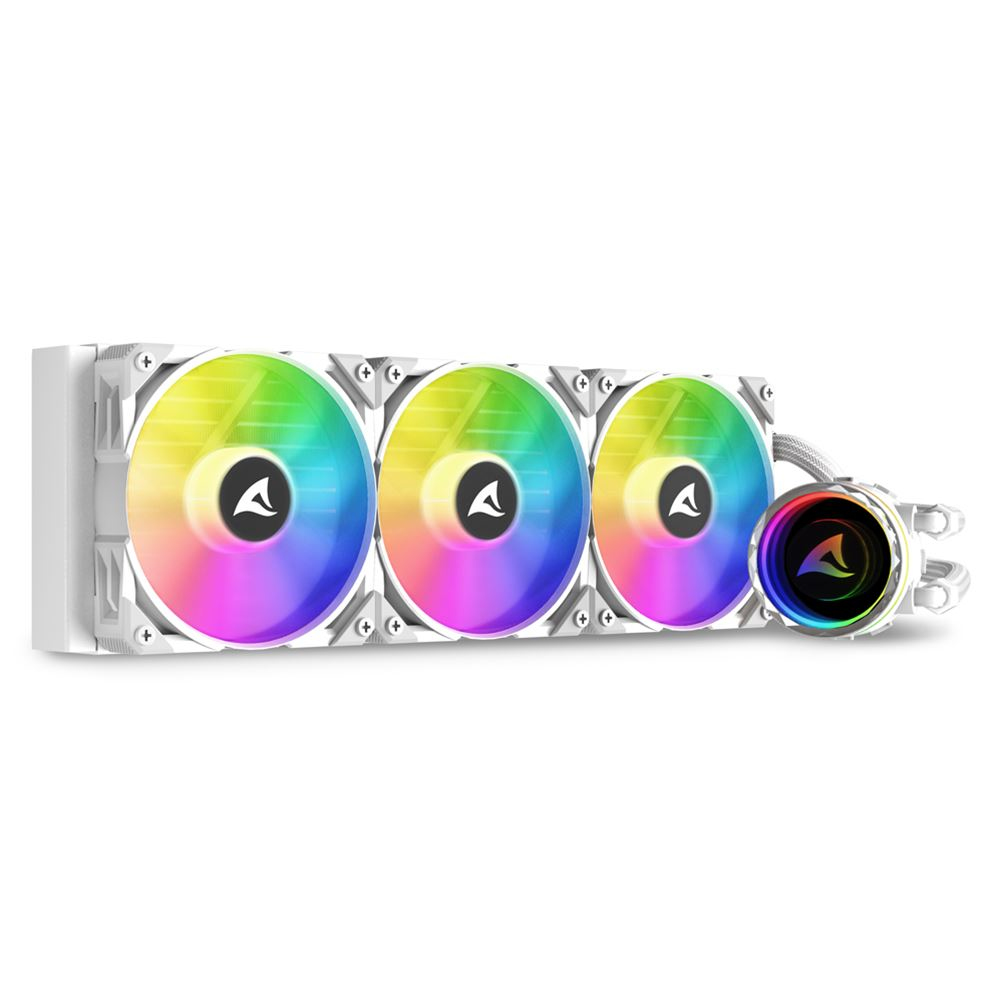

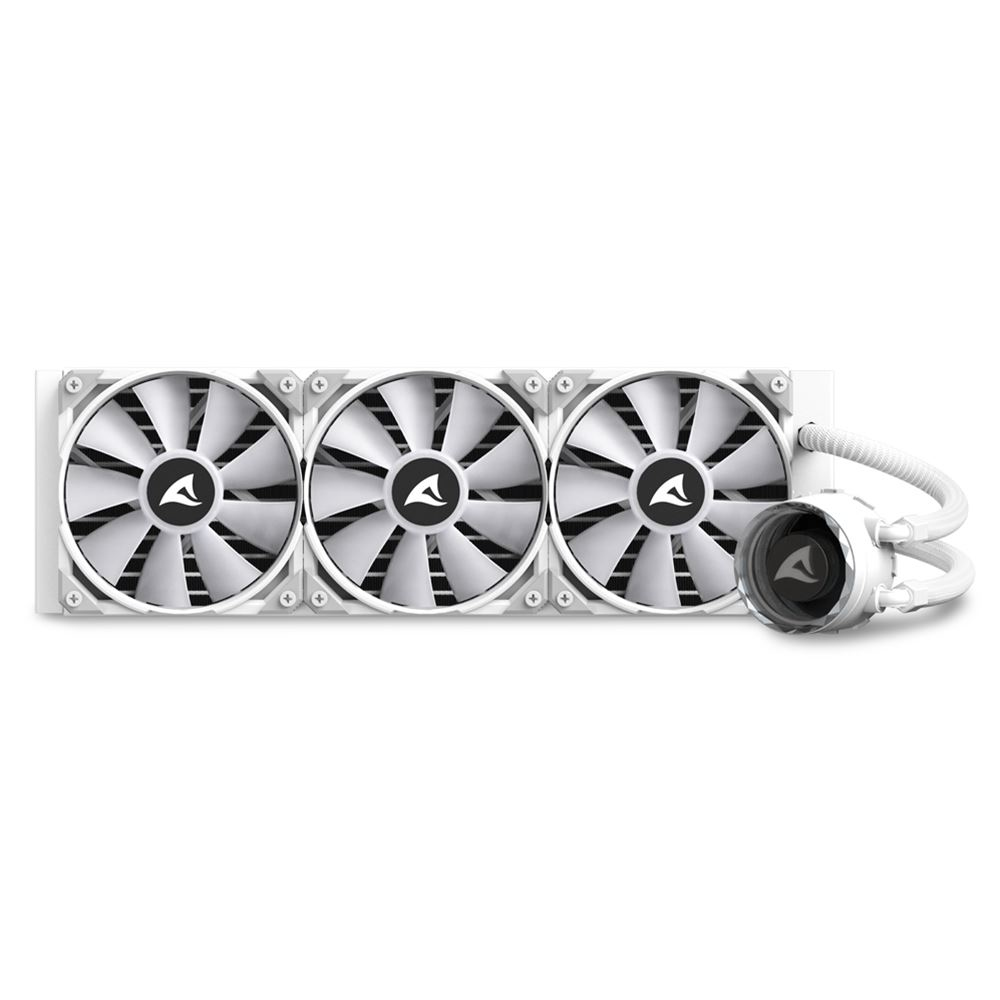

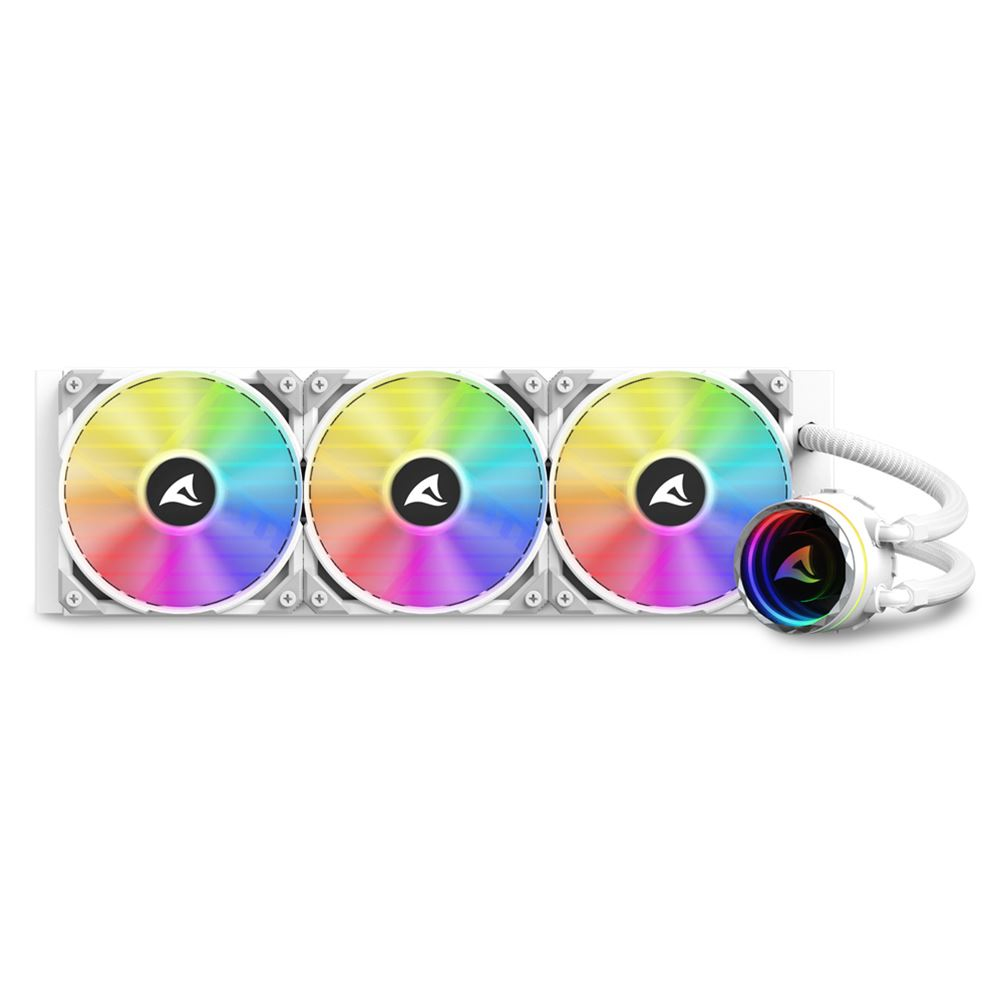

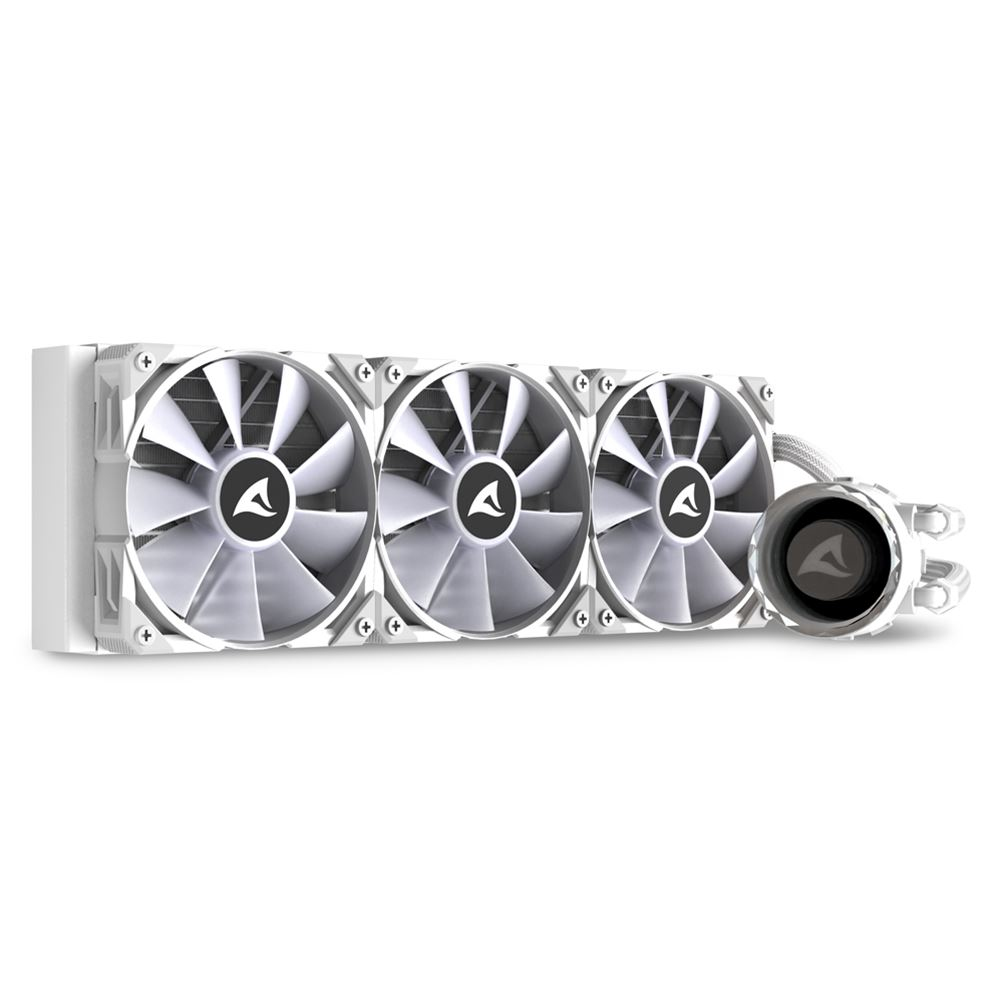

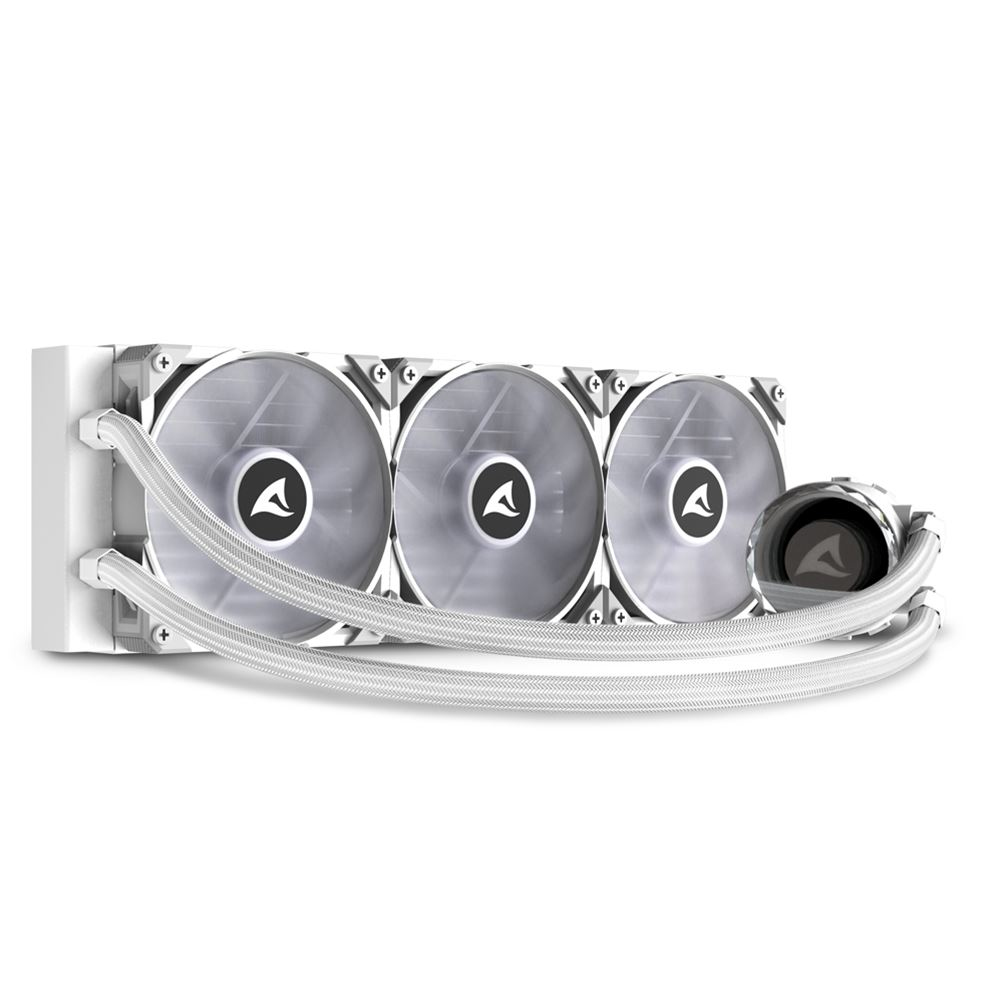

With its 360 mm radiator, the S90 RGB is a compact all-in-one water-cooling system that provides efficient cooling for all CPUs. Apart from providing visual highlights in 16.7 million colors, the addressable RGB PWM fans also ensure good cooling performance with a speed of up to 2,000 rpm. Installation is easy, thanks to the flexible, textile-braided tubing and the supplied mounting brackets.
Full Fan Control

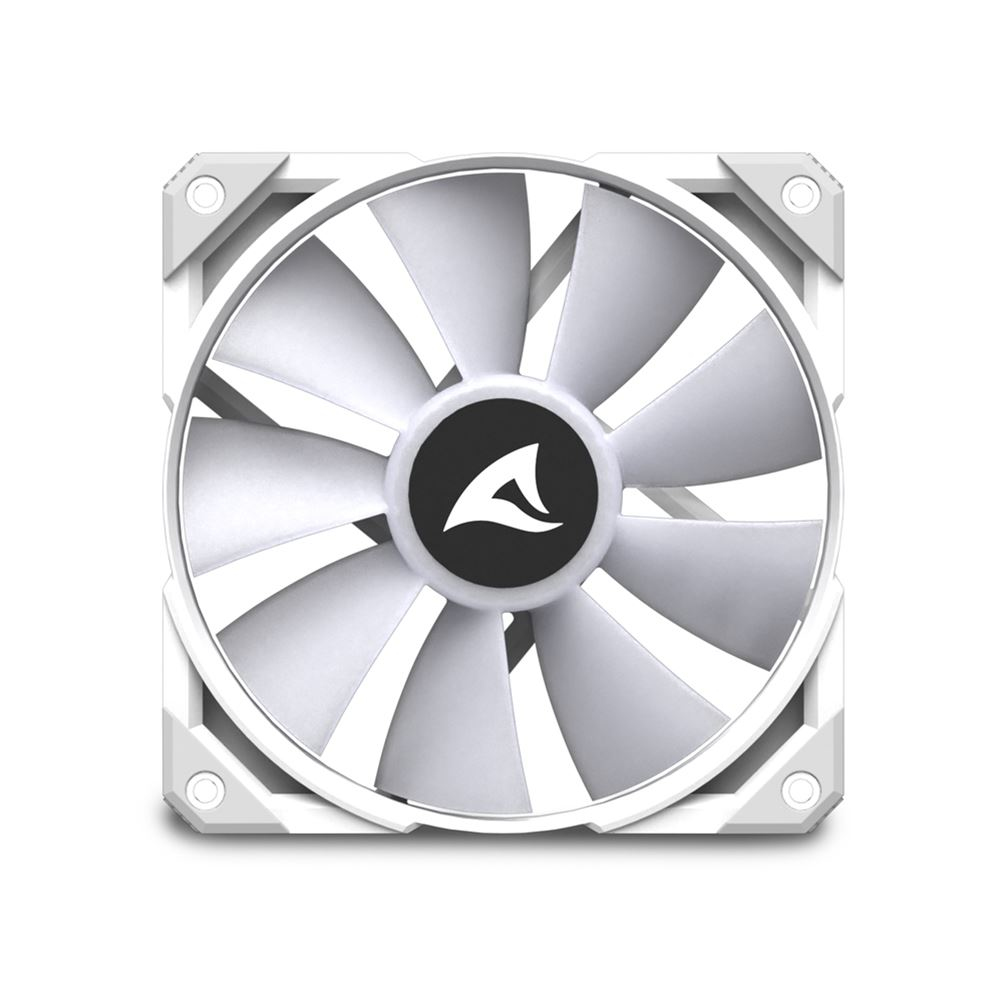

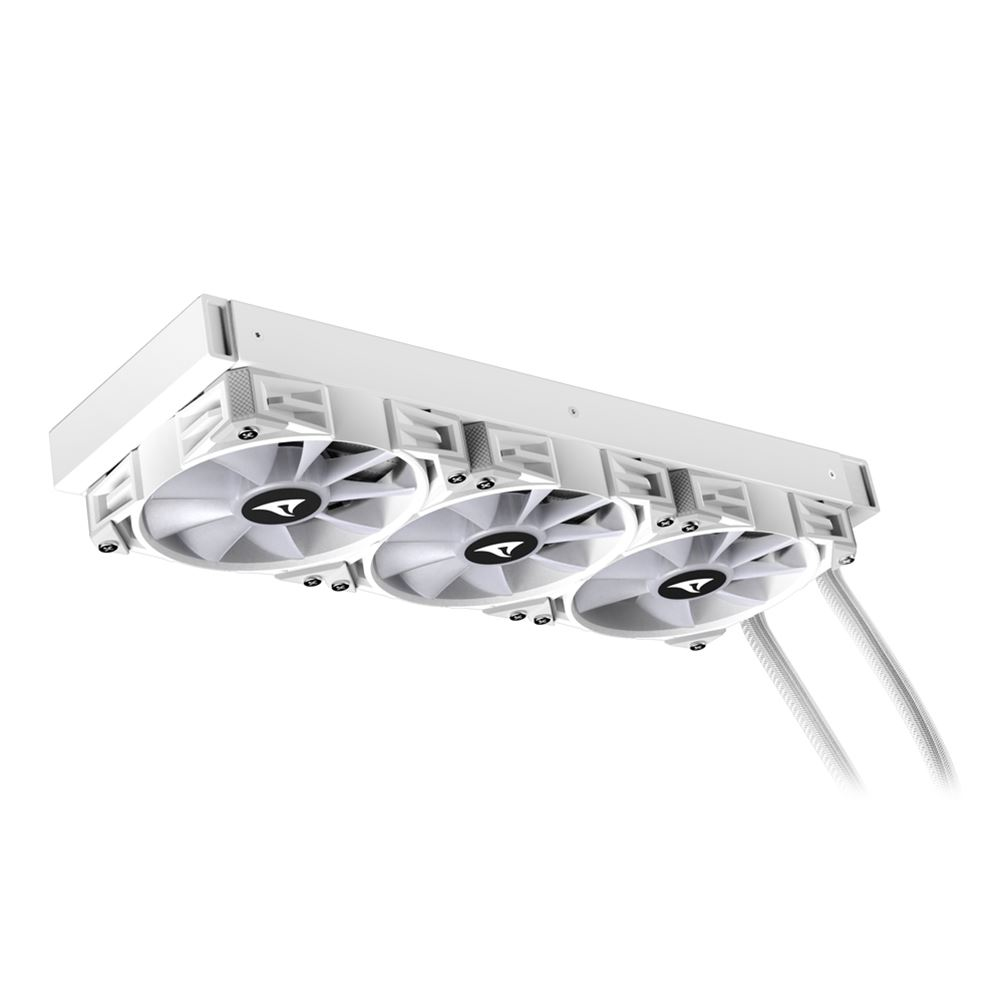

The three RGB PWM fans that belong to the S90 RGB's 360 mm radiator not only have fully addressable RGB illumination, but their speed can also be controlled within a range from 600 rpm to 2,000 rpm. And for easy cable management, the fans can be daisy chained. Also the pump has PWM control for optimal performance and low noise volume.
Best Possible Heat Dissipation

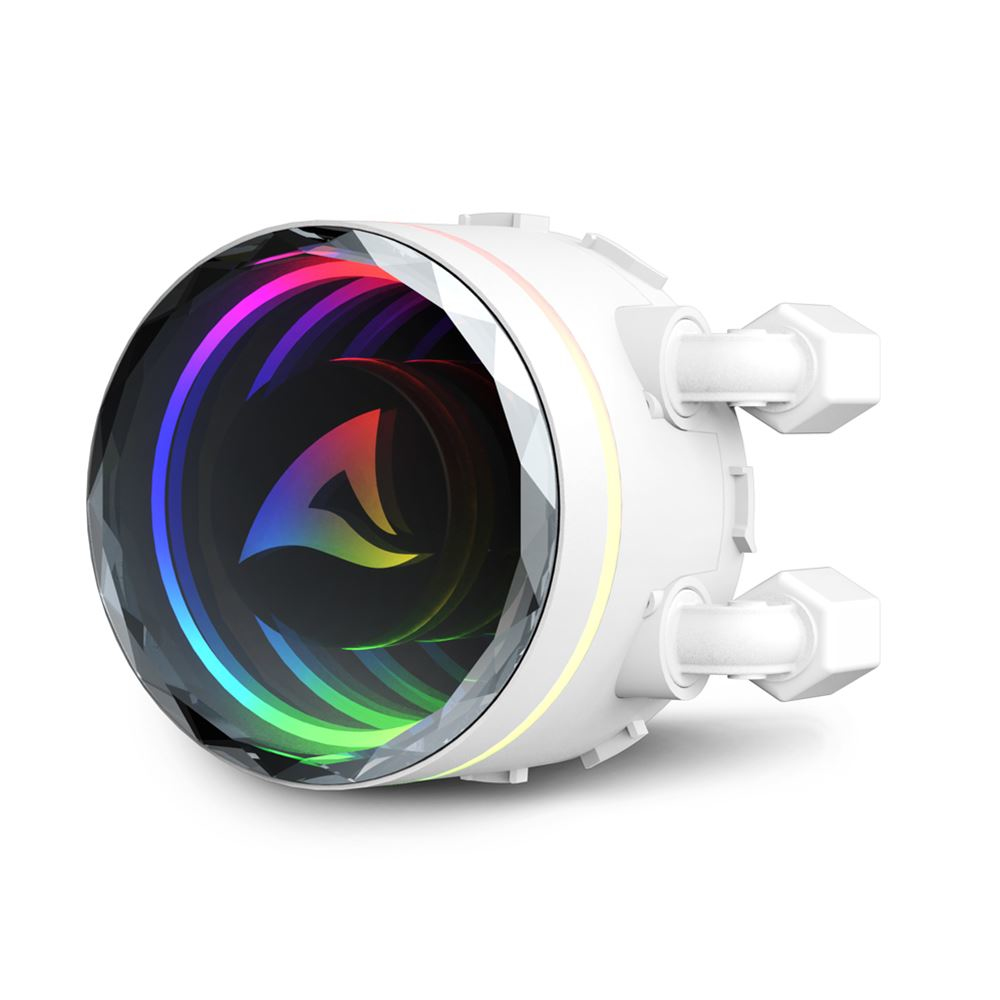

Like the fans, the water block and pump unit is also equipped with RGB illumination and presents itself with a chic infinity mirror effect. The copper plate and the supplied high-quality DOWSIL™ thermal paste ensure the best possible heat dissipation.
Compatible with All CPUs

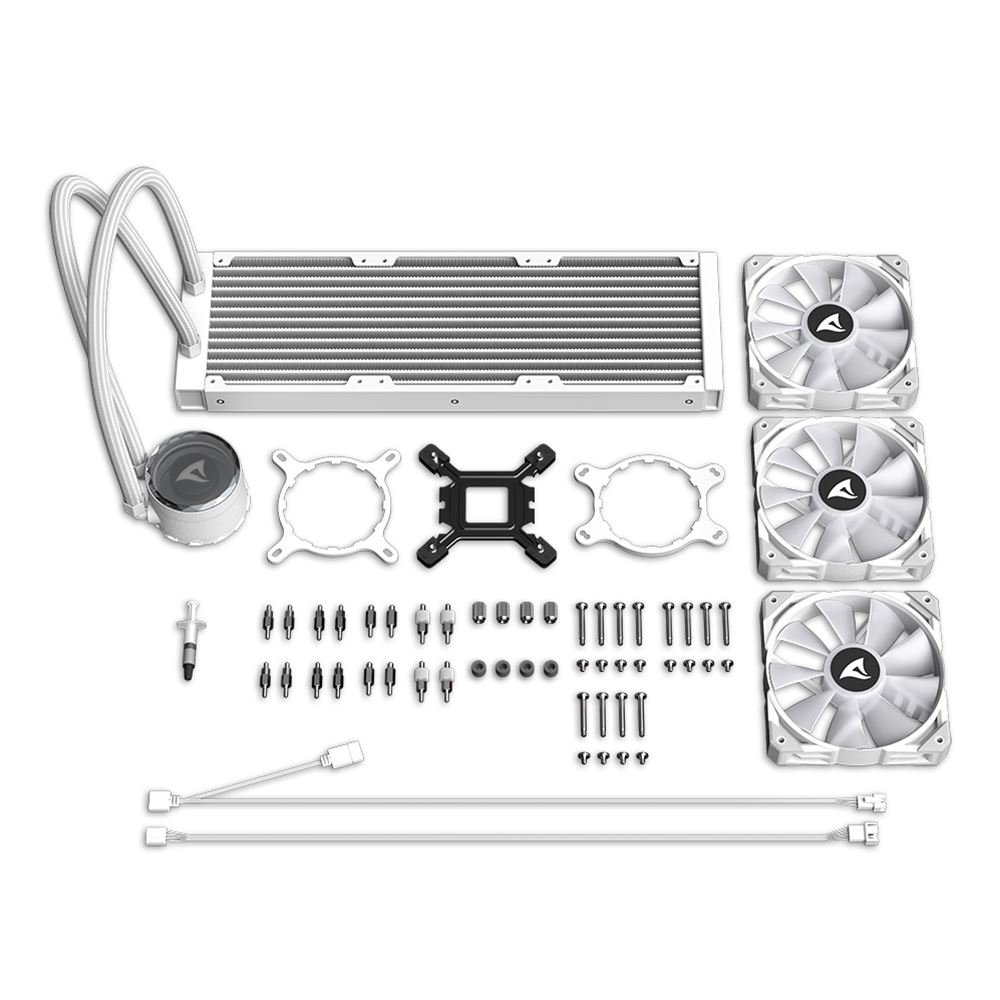

Thanks to the two enclosed mounting brackets for CPUs of all manufacturers, this all-in-one water-cooling solution is optimally prepared for direct use in the PC case.
Flexible and Easy to Install

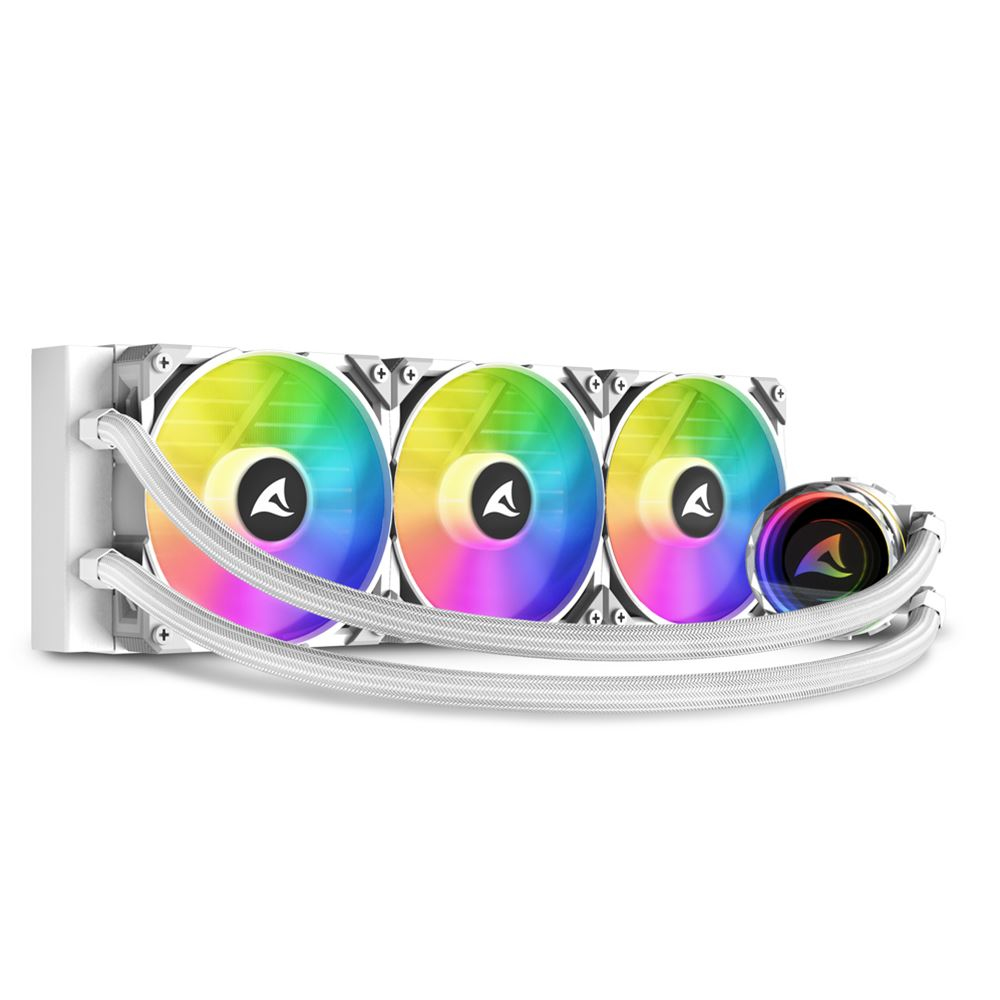

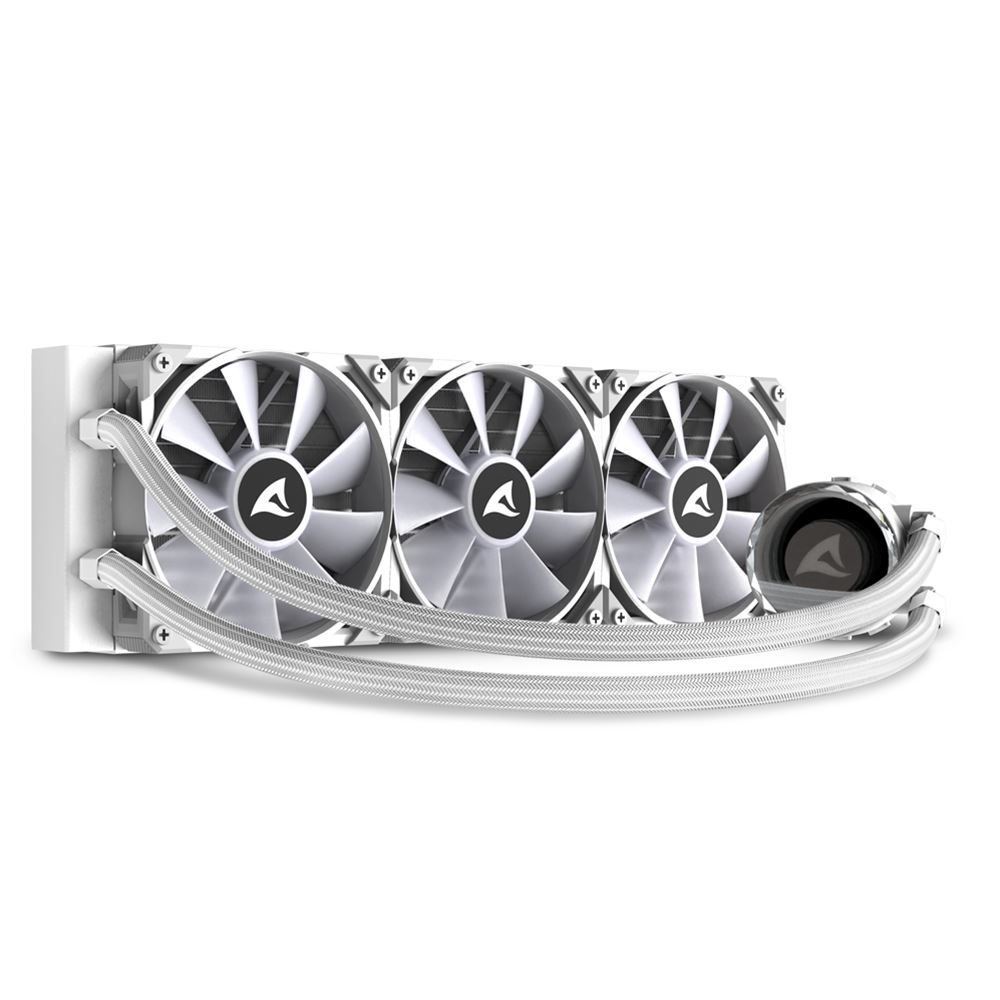

Via the flexible tubing, installation in the PC case is as uncomplicated as possible. The tubing is textile braided for optimal protection against scratches.
Rotatable Sharkoon Logo
In order to ensure that the Sharkoon logo is always horizontal, it can be easily rotated to the desired position on the water block and pump unit.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 35 dB |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket TR4, Socket TRX40 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum air pressure | 2.9 mmH2O |
| Airflow | 131.93 m³/h |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (min) | 1600 RPM |
| Pump motor speed (max) | 3200 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | White |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Water block material | Copper |
| Fan controller | Yes |
| LED connector type | 4-pin |
| Technical details | |
| Noise level (low speed) | 35 dB |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket TR4, Socket TRX40 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum air pressure | 2.9 mmH2O |
| Airflow | 131.93 m³/h |
| Number of fans | 3 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Rated current | 0.21 A |
| Pump voltage | 42 V |
| Fan voltage | 12 V |
| Fan current | 0.21 A |
| LED power consumption (pump) | 4 W |
| LED power consumption (fan) | 2.7 W |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.86 kg |
| Radiator width | 39.2 cm |
| Radiator depth | 12.1 cm |
| Radiator height | 2.75 cm |
| Tube length | 40 cm |
| Tube diameter | 7.15 cm |
| Indication | |
| Illumination colour | Multi |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Thermal pad included | Yes |
| Package type | Box |
| Mounting kit | Yes |
