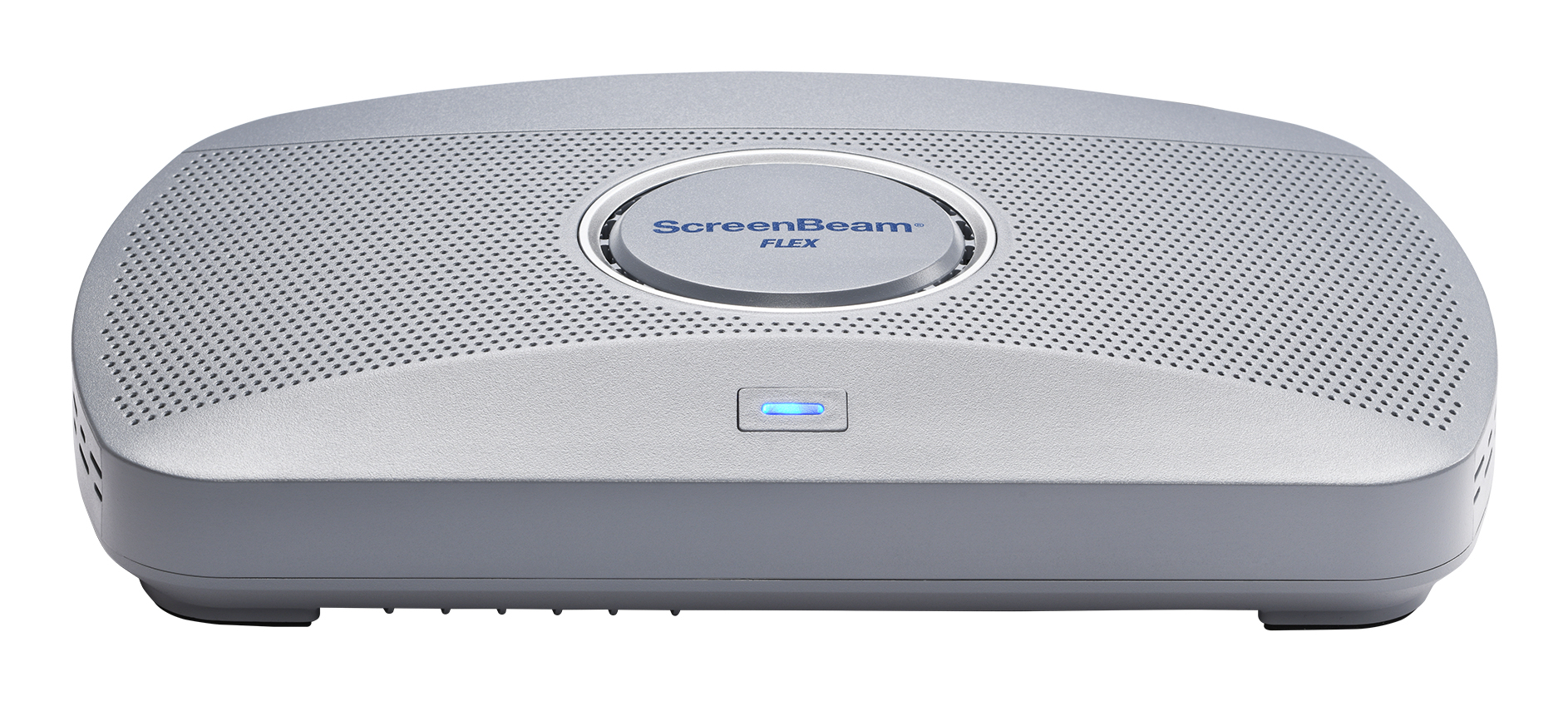

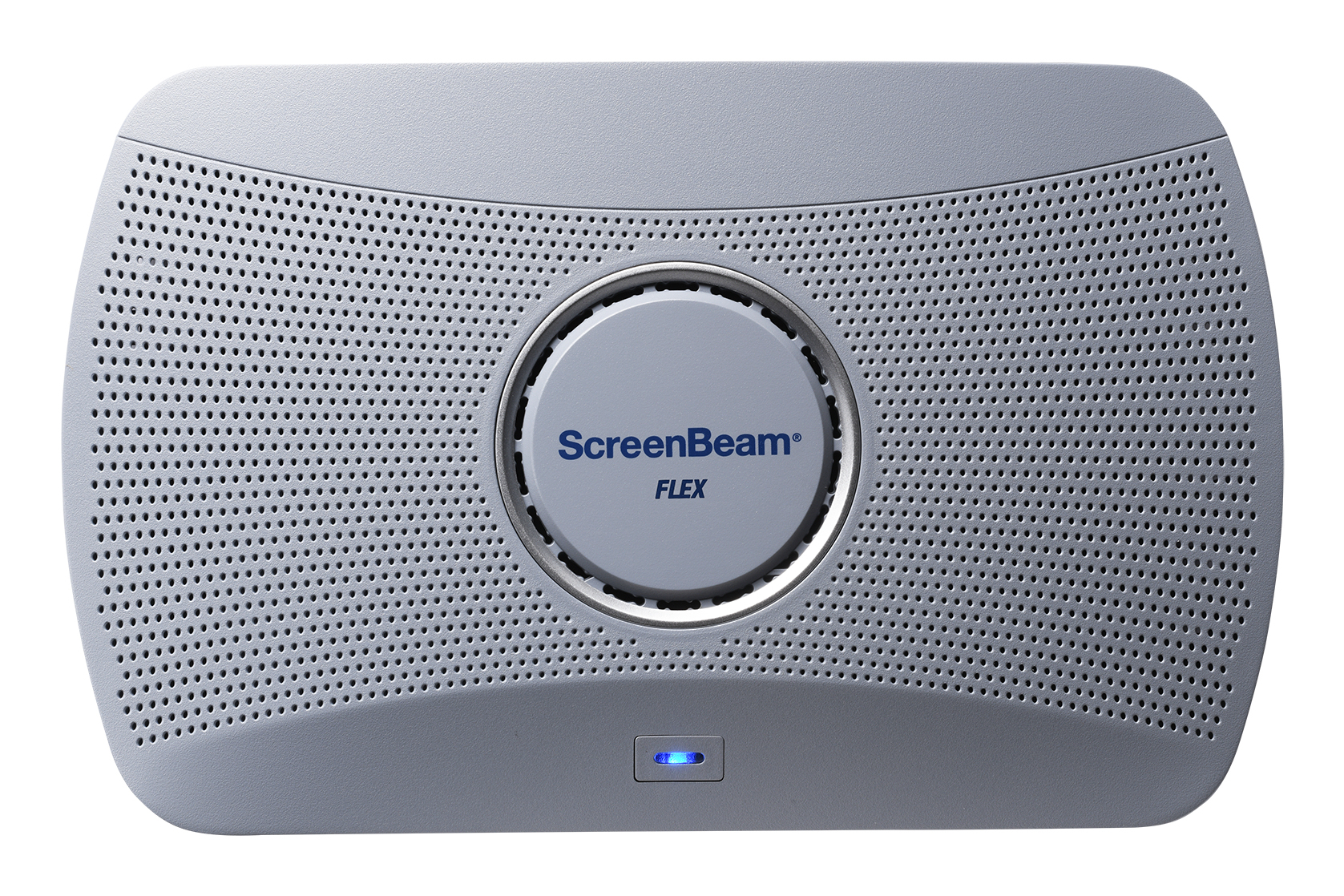

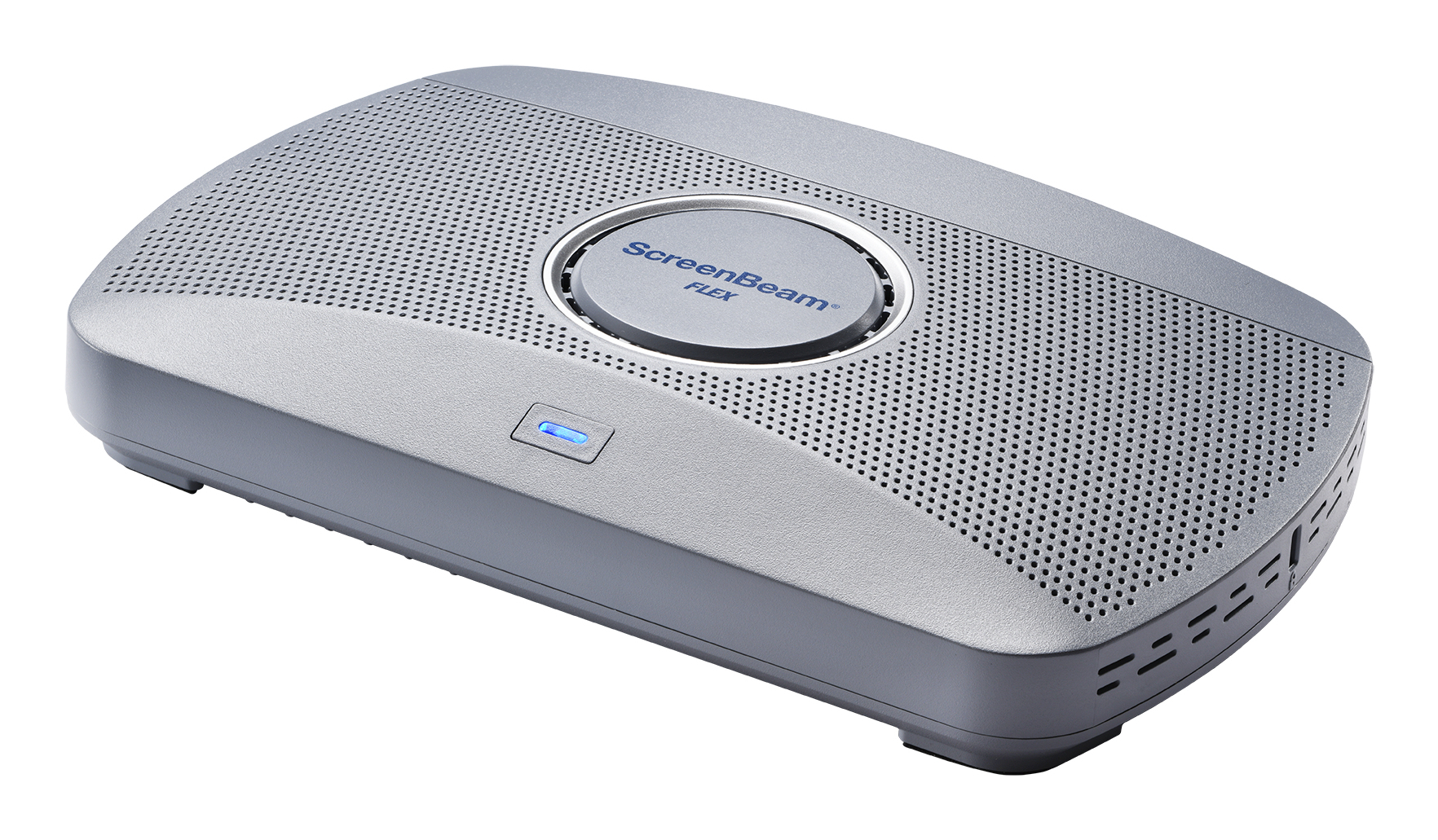

ScreenBeam Flex wireless presentation system HDMI + USB Type-A Desktop

ScreenBeam Flex wireless presentation system HDMI + USB Type-A Desktop

Miracast, Airplay, Google Cast, 802.11ac, 1000Base-T RJ-45 LAN, 4K30

Trade Prices

Distributor Product SKU Stock Updated Price
Douglas Stewart EDU

Flex

100319 Register free see stock
DSM Distribution

FLEX - Wireless video/audio extender - receiver - Wi-Fi 5, 1GbE

SBWD1100FEUINL
Westcoast

FLEX WITH CMSE

View on Webshop open_in_new
SBWD1100FEUINL
Alternative Suppliers
ECPROF

Flex

SBWD1100FEUINL Register free see stock
Memory Bank

FLEX WITH CMSE

CLSBWD1100FEUINL

Description

ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage—empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub.

App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.

Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.

Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.

Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.

Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.

Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.

Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.

HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.

Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.

Specifications

Design
Form factorDesktop
Product colourWhite
CertificationFCC, RED, RoHS, UL
Features
AirPlay mirroringYes
MiracastYes
Google CastYes
Network
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.1x
Supported network protocolsIEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Dual-bandYes
BluetoothYes

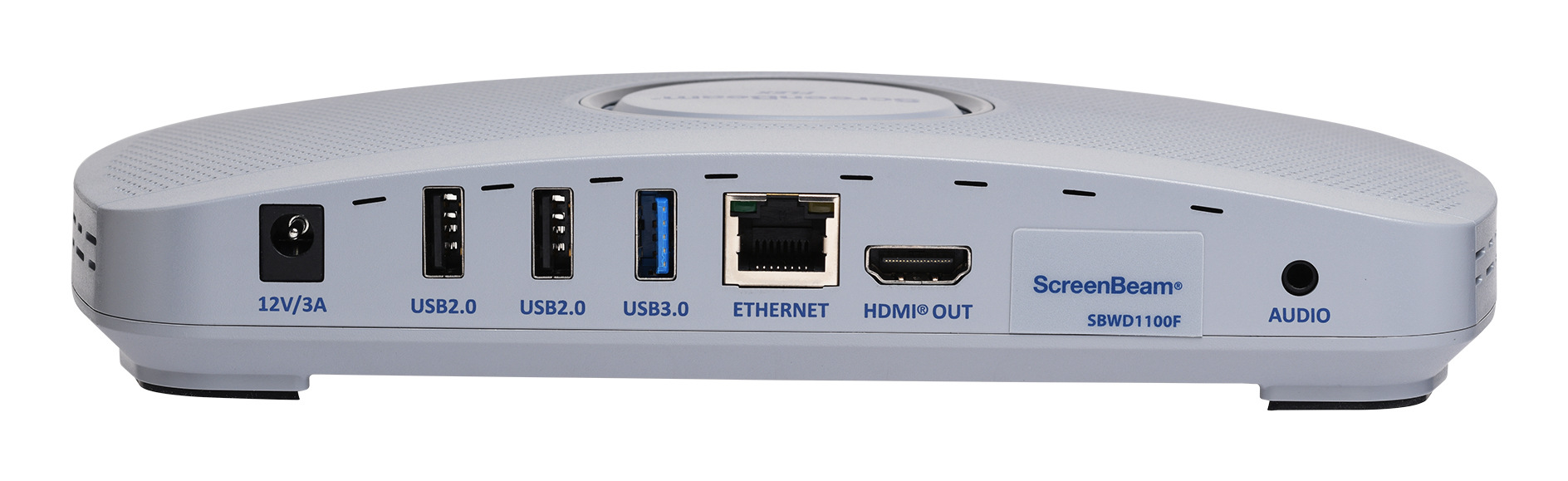

Ports & interfaces
InterfaceHDMI + USB Type-A
Number of HDMI outputs1
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
DC-in jackYes
3.5 mm (1/8-inch) outYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Power
Power source typeDC
Input voltage12 DC
Power consumption (max)24.8 W
Power consumption (typical)8.4 W
Input current3 A
System requirements
Windows operating systems supportedWindows 10, Windows 11
Mac operating systems supportedMac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supportedAndroid 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16
Mac compatibilityYes
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)20 - 85 °C
Storage relative humidity (H-H)10 - 90%
Weight & dimensions
Width220 mm
Depth144 mm
Height37.5 mm
Weight453.5 g
Packaging content
Cables includedHDMI
