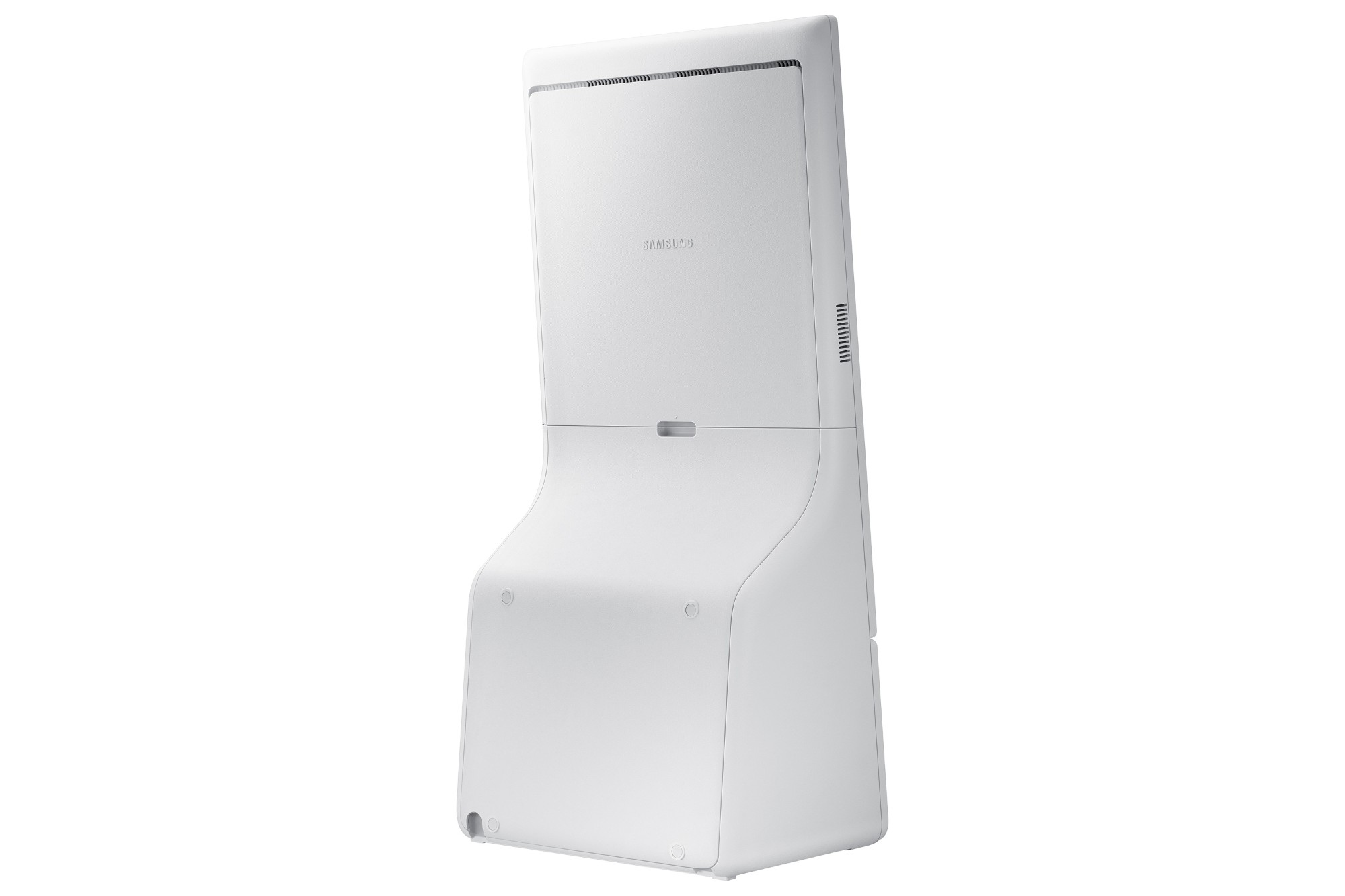

Samsung KM24C-5 Kiosk design 61 cm (24") LED 250 cd/m² Full HD White Touchscreen Built-in processor Windows 10 IoT Enterprise 16/7

Samsung KM24C-5 Kiosk design 61 cm (24") LED 250 cd/m² Full HD White Touchscreen Built-in processor Windows 10 IoT Enterprise 16/7

  • Brand: Samsung
  • Category:
  • SKU: LH24KMC5BGCXEN
  • EAN: 8806095200170
24" ADS, 1920 x 1080, 250 cd/m², 1000:1, 178/178, 14 ms, SoC, i5, 256 GB, RJ45, HDM, USB, 16/7, Windows 10 IoT Enterprise

Trade Prices

Distributor Product SKU Stock Updated Price
DSM Distribution KM24C-5 - kiosk Core i5 - flash 256 GB - LED 24" W128599013 Register free see stock
ECPROF KM24C-5 - Kiosk-Design - 61 cm (24) - LED - 1920 x 1080 Pixel - 16/7 LH24KMC5BGCXEN
EET KM24C-W Kiosk design 61 cm LH24KMC5BGCXEN
Exertis Ireland KM24C-W Kiosk design 61 cm (24") 250 cd/m² Full HD White Touchscreen Built-in processor Windows 10 IoT Enterprise 16/7 LH24KMC5BGCXEN
Memory Bank LFD KM24C-5 24 FH20/H24AK0-Y4B CLLH24KMC5BGCXEN
Westcoast/Data Select LFD KM24C-5 24 FH20/H24AK0-Y4B LH24KMC5BGCXEN

Related Products

Description

Self-service out of the box with Windows OS

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.

Modular functionality to support any payment type

Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.

All-in-one solution with upgraded compatibility

Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.

Robust yet stable performance

Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

Compact and modern design

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

Versatile solution for any scenario

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.

Keep the screen clean

Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.

* To perform its antibacterial function, this product has been treated with the biocidal substance Zinc Pyrithione.** Antibacterial property does not protect users against bacteria and provides no protection against viruses including Covid-19.*** Antimicrobial Coating is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.**** Antibacterial certification: UL2282 which is granted when the antibacterial effectiveness is more than 99%.(Test method(JIS Z 2801): after inoculation of 0.4cc of liquid with bacteria(Escherichia coli and Staphylococcus aureus) on specimen(5cm x 5cm), a sterilized film(4cm x 4cm) is adhered and left in a thermo-hygrostat with a relative humidity of 90% or more at 35°C for 24 hours, and then the efficiency of killing of the bacteria is measured / Test agency: FITI Test Research Institute)***** For further detai

Minimize accidents and risks
Shatterproof protection

Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.

Specifications

Display
Panel typeADS
Dynamic contrast ratio marketing nameMega Contrast
TouchscreenYes
Display technologyLED
Colour gamut72%
Display diagonal61 cm (24")
Display resolution1920 x 1080 pixels
Display brightness250 cd/m²
HD typeFull HD
Response time14 ms
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2745 x 0.2745 mm
Vertical scan range48 - 75 Hz
Native aspect ratio16:9
Horizontal scan range56 - 84.5 kHz
Touchscreen technologyCapacitive
Haze rate25%
Ports & interfaces
USB connector typeUSB Type-A
USB portYes
Wi-FiNo
Ethernet LANNo
DVI portNo
USB version2.0
USB ports quantity1
Audio
Built-in speaker(s)No
Design
Product designKiosk design
Placement supportedIndoor
OrientationVertical
Bezel width (top)1.79 cm
Bezel width (side)9.4 mm
Bezel width (bottom)1.79 cm
Product colourWhite
CertificationClass A FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
VESA mountingNo
Screen shapeFlat
Performance
PurposeCommercial
Operating hours (hours/days)16/7
Wi-FiNo
Power
Power consumption (sleep)0.5 W
Power consumption (typical)88 W
Computer system
Computer systemYes
Computer system typeSystem on Chip (SoC)
Processor familyIntel® Core™ i5
Operating system installedWindows 10 IoT Enterprise
Internal memory256 GB
Processor manufacturerIntel
Built-in processorYes
Weight & dimensions
Width (with stand)547.9 mm
Height (with stand)334.4 mm
Depth (with stand)48.8 mm
Weight (with stand)4.3 kg
Packaging data
Package width620 mm
Package depth122 mm
Package height419 mm
Package weight5.7 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%
Certificates
CertificationClass A FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
Technical details
VESA mountingNo
USB connector typeUSB Type-A
Panel typeADS
Weight (with stand)4.3 kg
Thin Client
Processor familyIntel® Core™ i5
Operating system installedWindows 10 IoT Enterprise
Internal memory256 GB
Features
Suitable for indoor useYes
Other features
USB connector typeUSB Type-A
Panel typeADS
Wi-FiNo
Width (with stand)547.9 mm
SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
Height (with stand)334.4 mm
Display technologyLED
Depth (with stand)48.8 mm
Bezel width (top)1.79 cm
Bezel width (side)9.4 mm
Bezel width (bottom)1.79 cm
Weight (with stand)4.3 kg
