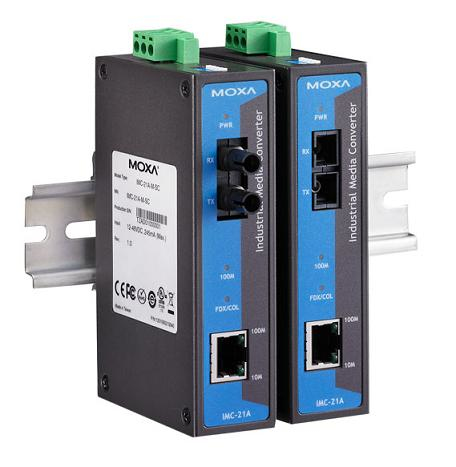

Moxa IMC-21A-S-SC network media converter 100 Mbit/s 1310 nm Single-mode Black, Blue
- Brand: Moxa
- Category:
- SKU: 45451
- EAN: 5703431454514
Industrial 10/100BaseT(X)-to-100BaseFX media converters
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
IMC-21A-S-SC |
45451 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £26.82 |
Description
The IMC-21A industrial media converters are entry-level 10/100BaseT(X) to 100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters can operate reliably in temperatures ranging from -40 to 75°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21A converters are easy to mount on a DIN-Rail or in distribution boxes.
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFP)
- -40 to 75°C operating temperature range (T models)
- DIP switches to select FDX/HDX/10/100/Auto/Force
- Multi-mode or single-mode, with SC or ST fiber connector
- Link Fault Pass-Through (LFP)
- -40 to 75°C operating temperature range (T models)
- DIP switches to select FDX/HDX/10/100/Auto/Force
Specifications
| Network | |
|---|---|
| Converter input interface | 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Converter output interface | 100Base-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Sensitivity | -34 dBmW |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Mean time between failures (MTBF) | 353000 h |
| Link budget | 29 dB |
| Features | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black, Blue |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Weight & dimensions | |
| Weight | 170 g |
| Dimensions (WxDxH) | 30 x 79 x 125 mm |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Sensitivity | -34 dBmW |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 29 dB |
| Internal | No |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Safety | UL 60950-1 |
| LED indicators | Yes |
| Product colour | Black, Blue |
| Certification | WEEE |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 353000 h |
| Colour | |
| Product colour | Black, Blue |
| Certificates | |
| Safety | UL 60950-1 |
| Certification | WEEE |
| Compliance certificates | RoHS |
| Other features | |
| Link budget | 29 dB |
| Dimensions (WxDxH) | 30 x 79 x 125 mm |
