Microconnect FIB442015 InfiniBand/fibre optic cable 15 m LC Blue
- Brand: Microconnect
- Category:
- SKU: FIB442015
- EAN: 5705965907863 5054484279846 50 ...4279846 5054533279841more

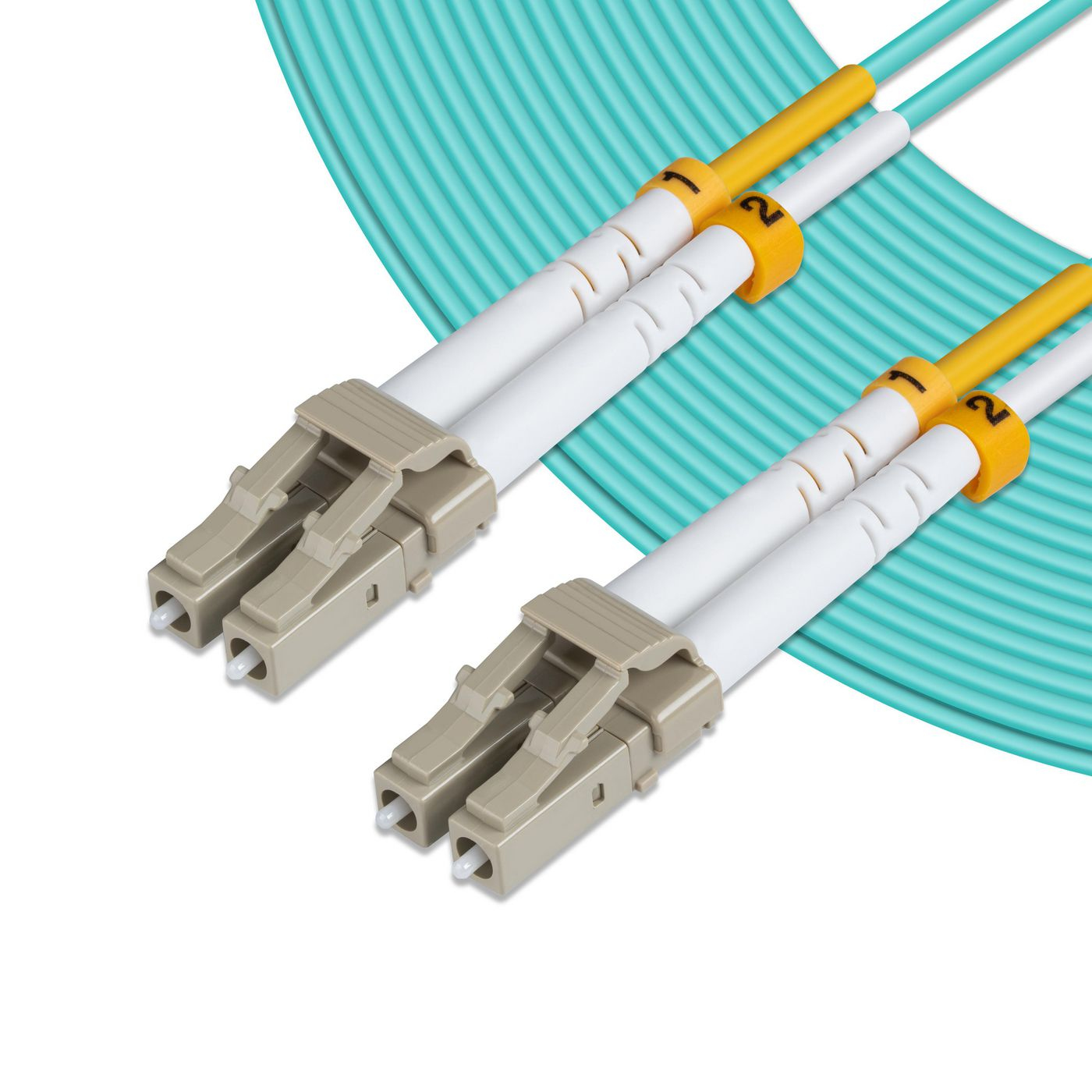

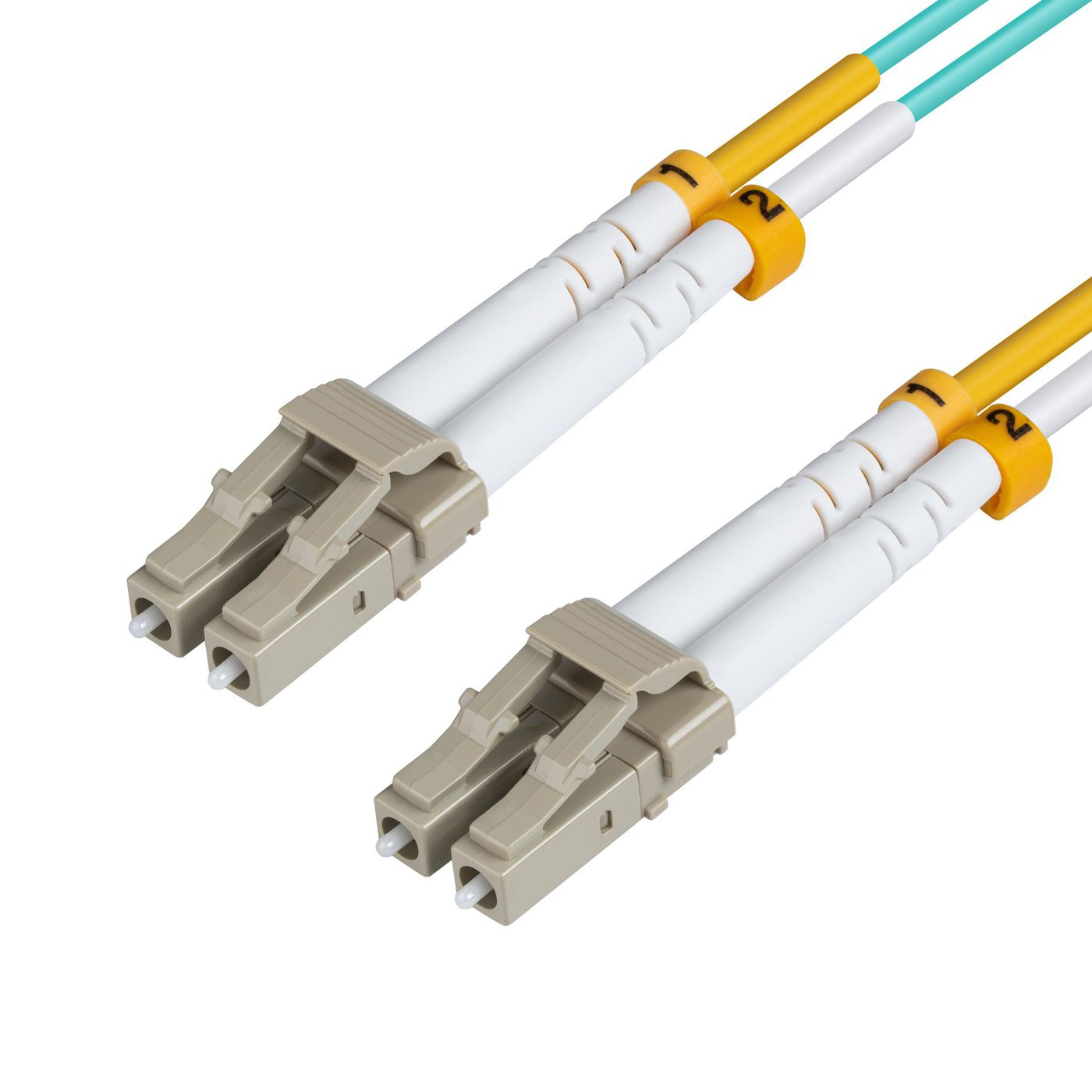

Optical Fibre Cable, LC-LC, Multimode, Duplex, OM3 (Aqua Blue) 15m
Offer details
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £27.09 |
Related Products
Description
The 50/125µm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections. The multimode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
Technical details | |
---|---|
Jacket material | Low smoke zero halogen (LSZH) |
Fiber mode structure | Multi-mode |
Connector 1 | LC |
Connector 2 | LC |
Cable length | 15 m |
Full duplex | Yes |
Core diameter | 50 µm |
Cladding diameter | 125 µm |
Insertion loss | 0.3 dB |
Doesn't contain | Halogen |
Compliance certificates | RoHS |
Features | |
Fibre optic type | OM3 |
Jacket material | Low smoke zero halogen (LSZH) |
Fiber mode structure | Multi-mode |
Connector 1 | LC |
Connector 2 | LC |
Cable length | 15 m |
Full duplex | Yes |
Core diameter | 50 µm |
Cladding diameter | 125 µm |
Operating temperature (T-T) | -40 - 85 °C |
Storage temperature (T-T) | -40 - 85 °C |
Insertion loss | 0.3 dB |
Harmonized System (HS) code | 85447000 |
Product colour | Blue |
Connector 2 gender | Male |
Connector 1 gender | Male |
Operational conditions | |
Operating temperature (T-T) | -40 - 85 °C |
Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions | |
Cable length | 15 m |
Package width | 181 mm |
Package depth | 173 mm |
Package height | 30 mm |
Cable diameter | 2 mm |
Weight | 120 g |
Package weight | 124 g |
Packaging data | |
Package width | 181 mm |
Package depth | 173 mm |
Package height | 30 mm |
Package weight | 124 g |
Logistics data | |
Harmonized System (HS) code | 85447000 |
Other features | |
Core / cladding diameter | 50/125 µm |
