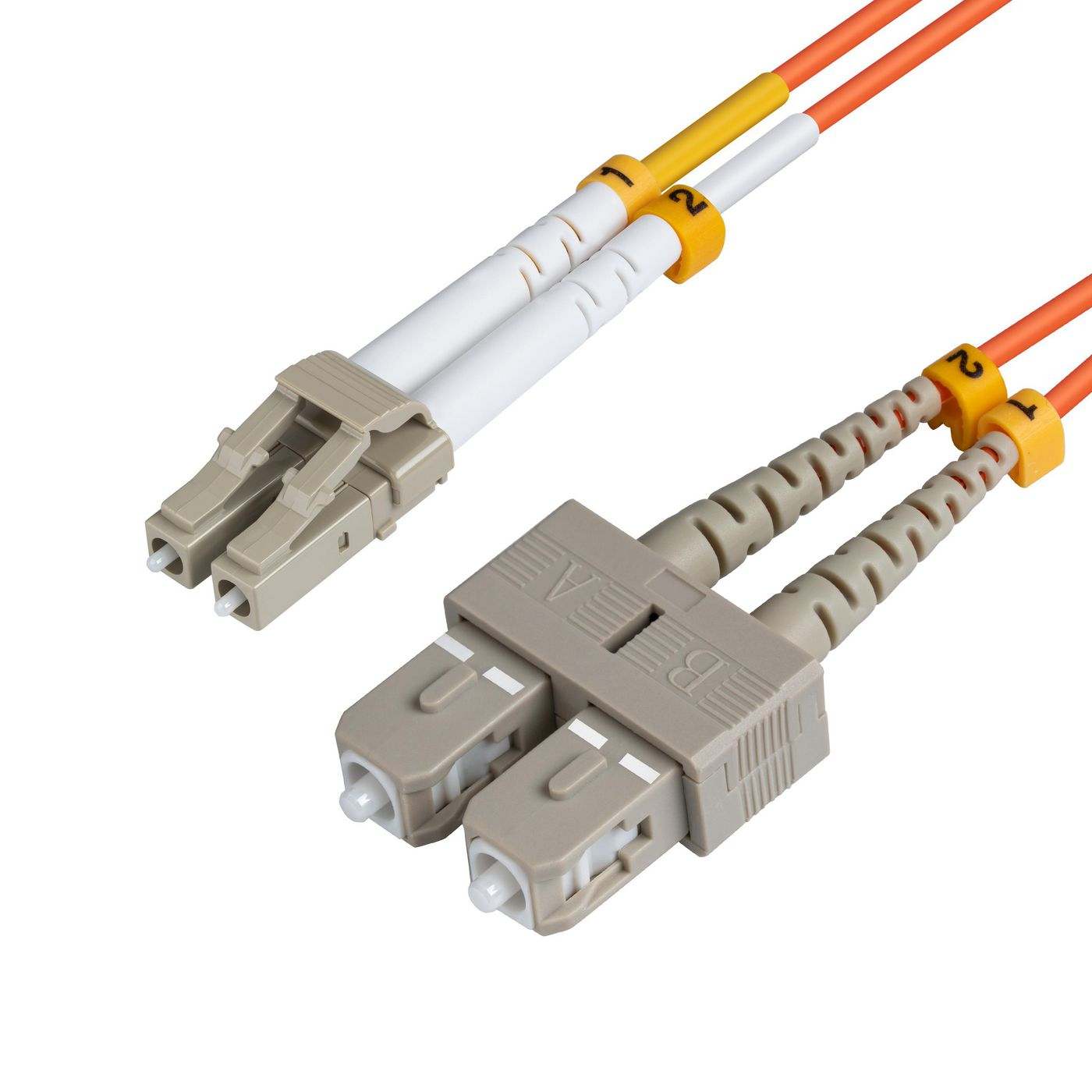

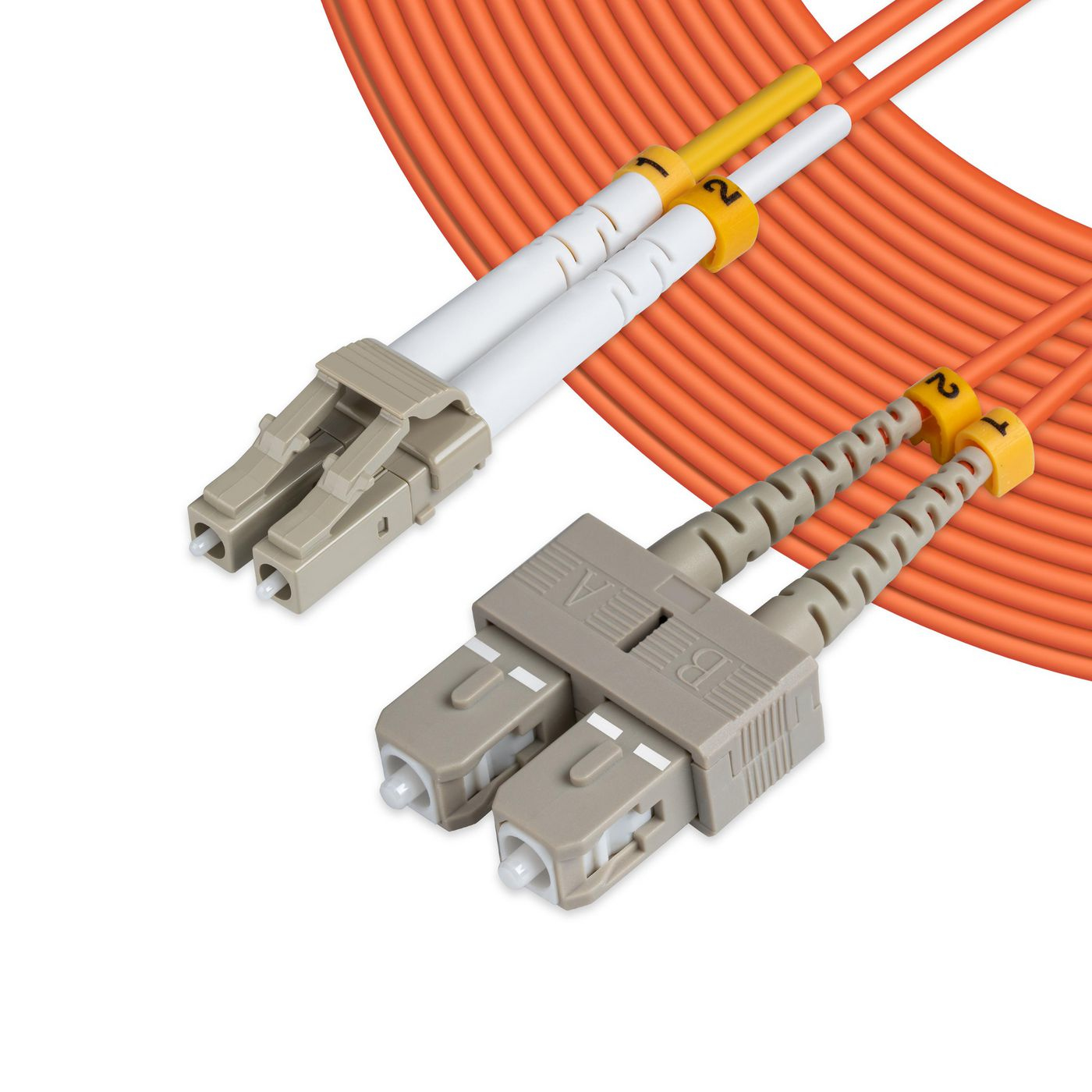

Microconnect FIB420002 InfiniBand/fibre optic cable 2 m LC SC Orange
- Brand: Microconnect
- Category:
- SKU: FIB420002
- EAN: 7331990045102 5054484279709 50 ...4279709 5054533279704more
Optical Fibre Cable, LC-SC, Multimode, Duplex, OM1 (Orange), 2m
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Fiber Patch Cable - | FIB420002 | |||
|
- Network cable - LC/UPC multi-mode (M) to SC/UPC multi-mode (M) - 2 m - fibre optic - 62.5 / 125 micron - OM1 | FIB420002 | |||
|
FIB420002 InfiniBand/fibre optic cable 2 m LC SC Orange | FIB420002 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £27.09 | ||
| Amazon | New | £22.28 |
Description
The 62.5/125µm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data centers, telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. OM1 patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Features | |
| Fibre optic type | OM1 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Insertion loss | 0.3 dB |
| Harmonized System (HS) code | 85447000 |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable length | 2 m |
| Package width | 169 mm |
| Package depth | 154 mm |
| Package height | 20 mm |
| Cable diameter | 2 mm |
| Weight | 20 g |
| Package weight | 46 g |
| Packaging data | |
| Package width | 169 mm |
| Package depth | 154 mm |
| Package height | 20 mm |
| Package weight | 46 g |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
