Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt 4

Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt 4

ThinkStation Thunderbolt 4 PCIe Expansion Card with HP Bracket

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast/Data Select MECH_BO TS TBT4 HP PCIE CARD 4XF1L53431 Register free see stock
DSM Distribution - Thunderbolt adapter - PCIe x4 - Thunderbolt 4 x 1 4XF1L53431
EET Interface Cards/Adapter 4XF1L53431
Jarvis Technology TB4 PCIe Card 4XF1L53431
Memory Bank MECH_BO TS TBT4 HP PCIE CARD CL4XF1L53431

Retail Prices

Merchant Product Condition Updated Price
Currys Business Lenovo - Thunderbolt adapter - PCIe x4 - Thunderbolt 4 x 1 New £196.78

Related Products

Description

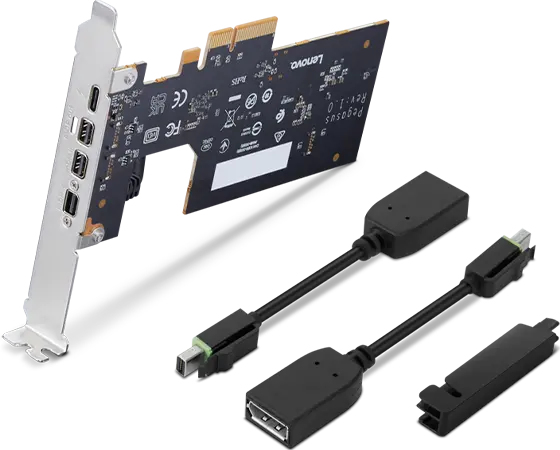

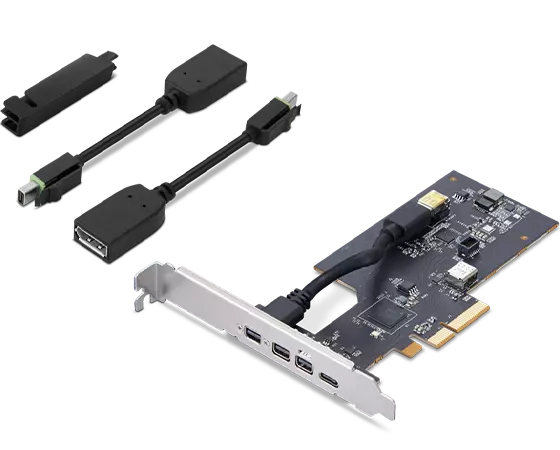

The following specification describes a custom x4 high profile PCIe add-in card that will provide 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports. The x4 high profile PCIe add-in card will utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports (to be used as inputs from graphics cards) and 1 mini display port for connection to an external monitor. The x4 high profile PCIe add-in card's internal TBT4 port will be used for possible future TBT offerings through use of a TBT bridge or hub.

Specifications

Ports & interfaces
InternalYes
Output interfaceMini DisplayPort, Thunderbolt 4
Host interfacePCIe
Host interface genderMale
Technical details
Hot-Plug supportYes
PurposeServer
Performance
Hot-Plug supportYes
PurposeServer
Certificates
CertificationBSMI,CE,Morocco,FCC,IC,VCCI
Design
Hot-Plug supportYes
PurposeServer
InternalYes
CertificationBSMI,CE,Morocco,FCC,IC,VCCI
Cooling typePassive
Power
Power consumption (typical)45 W
Operational conditions
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)20 - 80%
Weight & dimensions
Width144.8 mm
Depth68.9 mm
Height22 mm
Weight100 g
Package width177 mm
Package depth144 mm
Package height53 mm
Package weight400 g
Packaging data
Package typeBox
Package width177 mm
Package depth144 mm
Package height53 mm
Package weight400 g
Packaging content
Package typeBox
