ICY BOX IB-DK2245AC Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
- Brand: ICY BOX
- Category:
- SKU: IB-DK2245AC
- EAN: 4250078170006
USB 3.2 (Gen 1) Type-C / USB 3.0 Type-A, 2x DisplayPort, 2x HDMI, 4x USB 3.2 (Gen 1) Type-A, 2x USB 3.2 (Gen 1) Type-C, RJ-45, 2 x 3.5mm, 65W max PD, 342 g
Offer details
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £217.43 | ||
Amazon | New | £271.22 | ||
Amazon | New | £268.86 | ||
Amazon | New | £262.04 |
Related Products
Description
High resolution

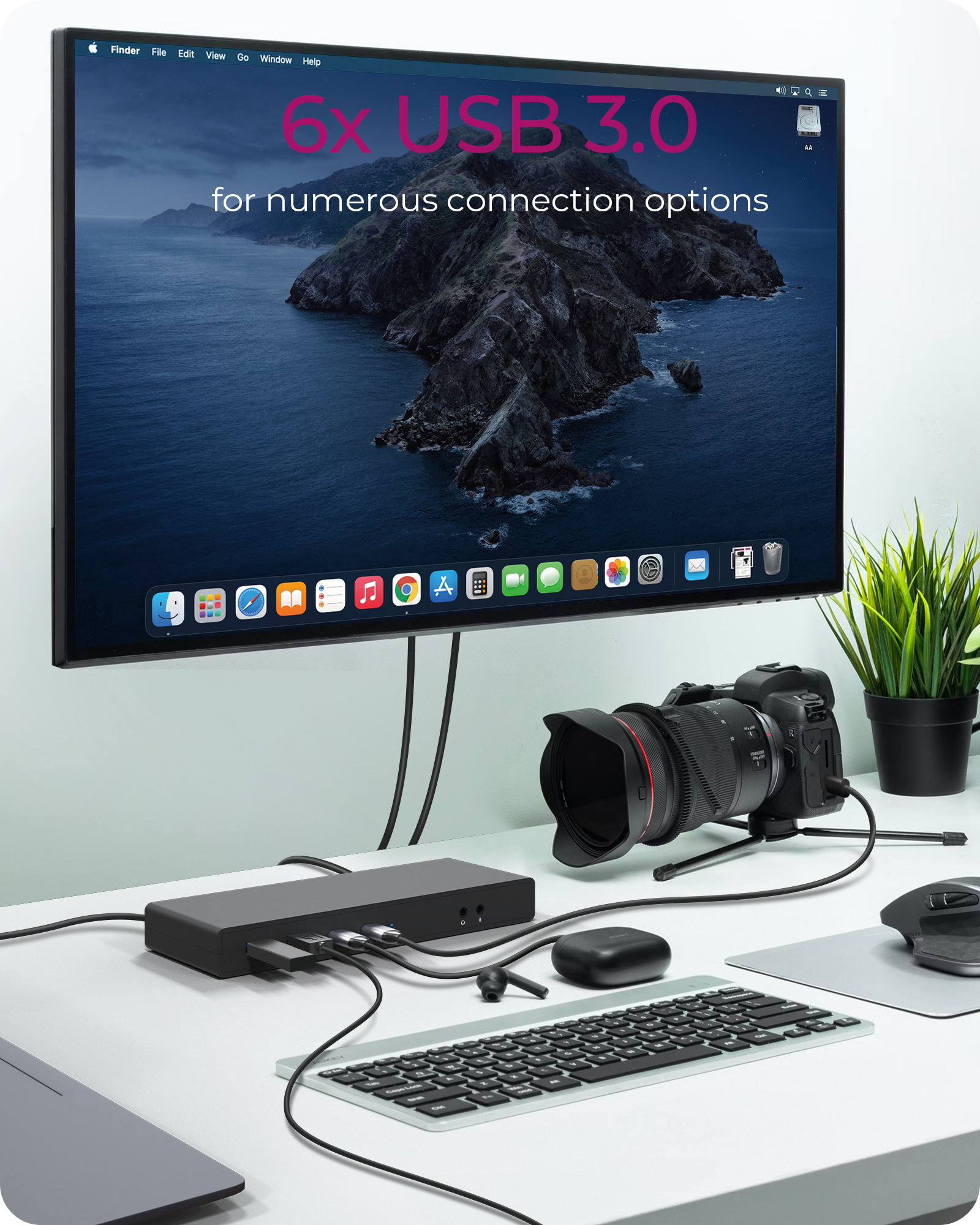

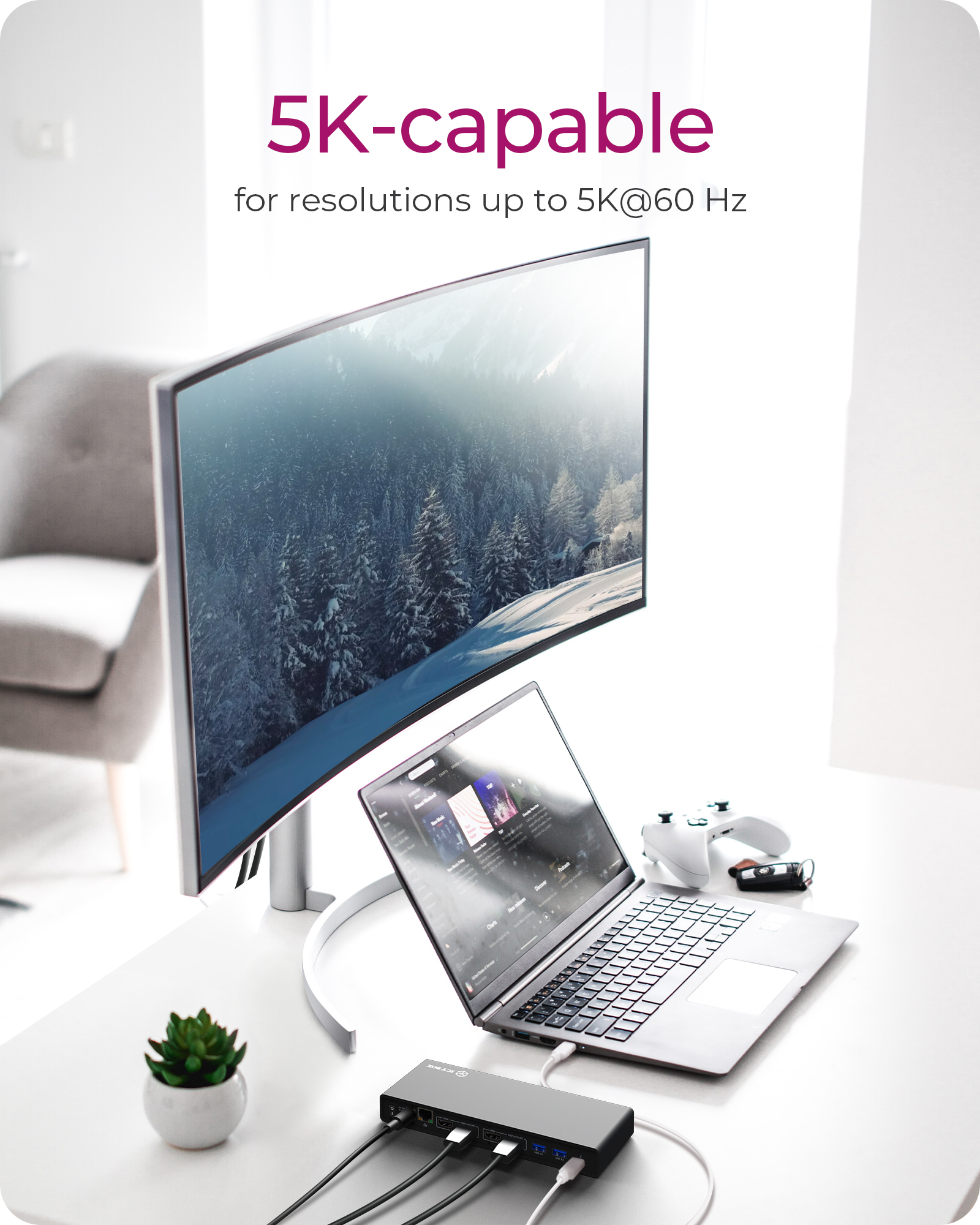

The IB-DK2245AC is equipped with four display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen, or extend the computer's desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60 Hz display with two cables connected via DisplayPort™ and fulfills your high resolution desires.
Big flexibility
This high-performance DockingStation can be used with both current Windows® and macOS® operating systems. Thus, the IB-DK2245AC is the perfect companion for eager travelers, business, and multimedia enthusiasts who want to be prepared for all environments.
One port
Notebooks and other mobile computers are becoming thinner and smaller. This is usually at the expense of connectivity - even the widely used RJ45 LAN port or multiple USB ports are often omitted, as are video connections, which are required by many display devices. The IB-DK2245AC offers a large selection of ports and can eliminate this lack permanently.
The IB-DK2245AC is equipped with four display video outputs. With triple Ultra HD displays simultaneously, the DockingStation allows you to split up the content to three display devices when the system supports the function, to mirror your primary screen, or extend the computer's desktop allowing visibility of more applications at the same time. It supports a resolution of up to 4096x2160@60 Hz for two monitors or one single 5K@60 Hz display with two cables connected via DisplayPort™ and fulfills your high resolution desires.
Big flexibility
This high-performance DockingStation can be used with both current Windows® and macOS® operating systems. Thus, the IB-DK2245AC is the perfect companion for eager travelers, business, and multimedia enthusiasts who want to be prepared for all environments.
One port
Notebooks and other mobile computers are becoming thinner and smaller. This is usually at the expense of connectivity - even the widely used RJ45 LAN port or multiple USB ports are often omitted, as are video connections, which are required by many display devices. The IB-DK2245AC offers a large selection of ports and can eliminate this lack permanently.
Specifications
Ports & interfaces | |
---|---|
Combo headphone/mic port | No |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
Headphone connectivity | 3.5 mm |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Line-in | Yes |
Line-out | Yes |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 2 |
DisplayPorts quantity | 2 |
Microphone in | Yes |
Headphone outputs | 1 |
DC-in jack | Yes |
Connectivity technology | Wired |
USB Power Delivery | Yes |
USB Power Delivery up to | 65 W |
DisplayPort version | 1.2 |
Network | |
Wake-on-LAN ready | Yes |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
Performance | |
Maximum digital resolution | 5120 x 2880 pixels |
On/off switch | Yes |
Country of origin | China |
Product colour | Black |
Card reader integrated | No |
Cable lock slot | Yes |
Data transfer rate | 5 Gbit/s |
Cable lock slot type | Kensington |
HD type | 5K Ultra HD |
Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
Maximum refresh rate | 60 Hz |
Technical details | |
Product colour | Black |
Cable lock slot | Yes |
Data transfer rate | 5 Gbit/s |
Products per master (outer) case | 10 pc(s) |
Master (outer) case width | 285 mm |
Master (outer) case gross weight | 13.6 kg |
Master (outer) case length | 520 mm |
Master (outer) case height | 300 mm |
Storage | |
Card reader integrated | No |
Power | |
Power source type | DC |
Input current | 2 A |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Output voltage | 20 V |
Output current | 5 A |
Power supply | 100 W |
Software | |
Windows operating systems supported | Yes |
Mac operating systems supported | Yes |
Weight & dimensions | |
Weight | 342 g |
Width | 83 mm |
Depth | 224 mm |
Height | 26 mm |
Package weight | 1.28 kg |
Package width | 100 mm |
Package depth | 270 mm |
Package height | 135 mm |
Design | |
Windows operating systems supported | Yes |
Mac operating systems supported | Yes |
Country of origin | China |
Product colour | Black |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Packaging data | |
Package weight | 1.28 kg |
Package width | 100 mm |
Package depth | 270 mm |
Package height | 135 mm |
Packaging content | |
Manual | Yes |
Cables included | AC, USB Type-A to USB Type-C, USB Type-C to USB Type-C |
AC adapter included | Yes |
Logistics data | |
Products per master (outer) case | 10 pc(s) |
Master (outer) case width | 285 mm |
Master (outer) case gross weight | 13.6 kg |
Master (outer) case length | 520 mm |
Master (outer) case height | 300 mm |
