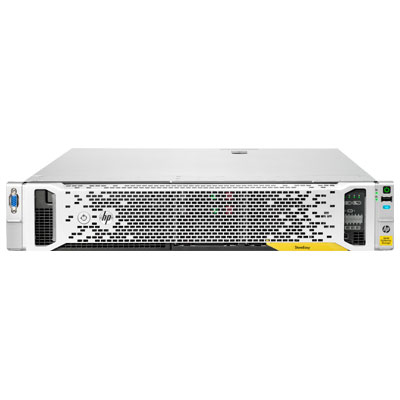

HPE StoreEasy 3840 Gateway Storage NAS Rack (2U) Intel® Xeon® E5 Family E5-2609 16 GB DDR3 0.6 TB HDD Windows Storage Server 2012 R2 Silver

HPE StoreEasy 3840 Gateway Storage NAS Rack (2U) Intel® Xeon® E5 Family E5-2609 16 GB DDR3 0.6 TB HDD Windows Storage Server 2012 R2 Silver

  • Brand: HPE
  • Category:
  • SKU: E7X03A
  • EAN: 4514953690561 8881824095340 08 ...4095340 0888182409534more
HP StoreEasy 3840 Gateway Storage

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK HP StoreEasy 3840 Gateway Storage 3084921 Register free see stock

Related Products

Description

Need an easy solution to your SAN storage demands?

With HP StoreEasy 3000 Gateway Storage you get a new breed of optimized, efficient, secure and highly available file storage gateways to easily address medium to large businesses, branches or workgroup file and application storage for SANs. Save time and money by simply supporting hundreds to thousands of concurrent users and multiple diverse workloads. It has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight. StoreEasy is highly available with turnkey clustered configurations, transparent failover, and online maintenance to deliver near continuous availability of data to users, servers, and applications. It is a robust storage platform for demanding 24x7 environments.

Specifications

Storage
Total installed storage capacity0.6 TB
Storage drives installedYes
Installed storage drive typeHDD
Number of storage drives installed2
Supported storage drive typesHDD
Number of storage drives supported2
Storage drive interfaceSerial Attached SCSI (SAS)
Storage drive capacity300 GB
Storage drive size2.5"
Hot-swap drive baysYes
RAID supportYes
RAID levels0, 1+0, 5, 5+0
Processor
Processor manufacturerIntel
Thermal Design Power (TDP)80 W
Tcase70 °C
System bus rate6.4 GT/s
SteppingM1
Scalability2S
Processor threads4
Processor socketLGA 2011 (Socket R)
Processor package size52.5 x 45.0 mm
Processor operating modes64-bit
Processor lithography32 nm
Processor cache typeSmart Cache
Processor cache10 MB
PCI Express slots version3.0
ECC supported by processorYes
CPU multiplier (bus/core ratio)24
CPU configuration (max)2
Bus typeQPI
Maximum internal memory supported by processor750 GB
Memory bandwidth supported by processor (max)34.1 GB/s
Processor ARK ID64588
Processor frequency2.4 GHz
Processor familyIntel® Xeon® E5 Family
Processor modelE5-2609
Processor cores4
L3 cache10 MB
Memory
Internal memory typeDDR3
Internal memory16 GB
Memory slots24
Memory form factorDIMM
Network
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
Ports & interfaces
VGA (D-Sub) ports quantity2
USB 2.0 ports quantity6
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
Hard drive
RAID supportYes
RAID levels0, 1+0, 5, 5+0
Design
Cooling typeActive
Product colourSilver
Chassis typeRack (2U)
Technical details
TypeNAS
Device classSmall & Medium Business
Product colourSilver
Chassis typeRack (2U)
Performance
TypeNAS
Device classSmall & Medium Business
Operating system installedWindows Storage Server 2012 R2
Cooling
Cooling typeActive
Software
Operating system installedWindows Storage Server 2012 R2
Weight & dimensions
Width445.5 mm
Depth698.5 mm
Height87.3 mm
Weight22.7 kg
Processor special features
Thermal Monitoring TechnologiesYes
Number of QPI links2
Maximum number of PCI Express lanes40
Intel® Turbo Boost TechnologyNo
Intel® Identity Protection Technology (Intel® IPT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Trusted Execution TechnologyYes
Intel Identity Protection Technology version0.00
Intel Flex Memory AccessNo
Intel Enhanced Halt StateYes
Intel Demand Based SwitchingYes
Intel 64Yes
Idle StatesYes
Graphics & IMC lithography32 nm
Execute Disable BitYes
Enhanced Intel SpeedStep TechnologyYes
Embedded options availableNo
Memory channels supported by processorQuad
Memory types supported by processorDDR3-SDRAM
Other features
Processor ARK ID64588
