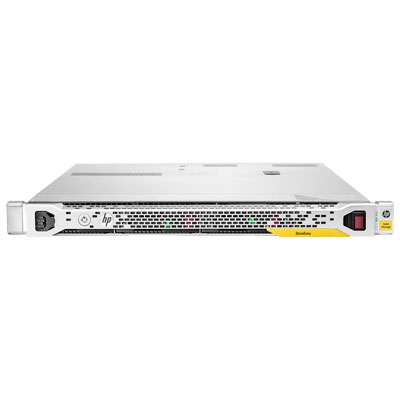

HPE StoreEasy 1440 4TB SATA Storage NAS Rack (1U) Intel® Xeon® E5 V2 Family E5-2403V2 8 GB DDR3 HDD Windows Storage Server 2012 R2
- Brand: HPE
- Category:
- SKU: E7W71A
- EAN: 8881824092134 0888182409213
StoreEasy 1440 4TB SATA Storage
Offer details
Description
Your business deals with many challenges but why does storage need to be one of them? With HP StoreEasy 1000 Storage you get a new breed of optimized, efficient, secure and highly available storage to easily address file and application storage. For small to medium business, branch office, and workgroup environments you can easily and economically support large numbers of users and store growing volumes of files such as documents, images, audio files, and videos.
It also has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight.
Built on Microsoft Windows Storage Server 2012 or 2012 R2, depending on model, you can provide users with a highly available solution so that their data is ready when they need it.
Features
Optimized: Tailored for Your File Storage
- The HP StoreEasy 1000 Storage comes with pre-configured hardware with the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment.
- HP StoreEasy Dashboard* consolidates all key status information in a single interface. Easily monitor capacity utilization, performance, and health from a single UI designed for an IT generalist. Reduces navigation of multiple tools and interfaces for system management. *(Available Spring 2014)
- Best practices driven storage provisioning tool discovers system storage and recommends the setup for optimum performance, optimum capacity or a balanced configuration based on the available storage.
Efficient: Saves You Money and Time
- HP StoreEasy 1000 Storage supports a large numbers of users with a high performance file serving controller and a wide range of disk drives including solid state disks (SSDs). A broad range of file access protocols, including Microsoft Hyper-V and SQL Server application storage over SMB3 or iSCSI.
- File sync and share feature enable mobile workers to access their files from any Internet connection. Provides corporate data controls including data encryption, data wipe, user lock screen password enforcement, file classification and storage quotas. WSS2012 R2 models only.
- Increase capacity use with non-intrusive data deduplication that provides an average 50-60% in space savings.
- Reduce your branch office WAN usage by automatically caching frequently accessed corporate datacenter files with Hosted BranchCache.
Protection: Safeguards Your Data
- The HP StoreEasy 1000 Storage protects data while at rest with file system encryption and BitLocker® drive encryption, and while it is being transferred with SMB3 encryption and signing.
- Use File Classification Infrastructure to dynamically identify files based on sensitivity and implement sophisticated access controls using Active Directory Rights Management Services.
- Install and run endpoint protection such as antivirus on the system itself – reducing the cost and complexity of connecting an external endpoint protection server. Prevent against data loss with Volume Shadow Copy Service online snapshots and support for agent based backup software.
- Leverage optional HP LiveVault and HP Data Protector software for security and efficient policy driven offsite cloud and hybrid cloud backup.
Highly Available: Prevents Your User and Organization Disruption
- The HP StoreEasy 1000 Storage increases uptime with such standard features as near continuous health monitoring with HP Active Health System, mirrored OS disks, redundant fans (not available on all models) and power, and advanced memory protection.
- Confidently deploy large volumes leveraging improved file system online self-healing, online verification, and precise and rapid repair that massively reduces downtime from file corruption.
- Built on HP ProLiant Gen8 Server series and Microsoft Windows Storage Server 2012 or 2012 R2, depending on model, for reliability and ease-of-use.
- Three year onsite parts and labor warranty for the system, and one year of 24 x 7 software telephone support.
It also has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight.
Built on Microsoft Windows Storage Server 2012 or 2012 R2, depending on model, you can provide users with a highly available solution so that their data is ready when they need it.
Features
Optimized: Tailored for Your File Storage
- The HP StoreEasy 1000 Storage comes with pre-configured hardware with the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment.
- HP StoreEasy Dashboard* consolidates all key status information in a single interface. Easily monitor capacity utilization, performance, and health from a single UI designed for an IT generalist. Reduces navigation of multiple tools and interfaces for system management. *(Available Spring 2014)
- Best practices driven storage provisioning tool discovers system storage and recommends the setup for optimum performance, optimum capacity or a balanced configuration based on the available storage.
Efficient: Saves You Money and Time
- HP StoreEasy 1000 Storage supports a large numbers of users with a high performance file serving controller and a wide range of disk drives including solid state disks (SSDs). A broad range of file access protocols, including Microsoft Hyper-V and SQL Server application storage over SMB3 or iSCSI.
- File sync and share feature enable mobile workers to access their files from any Internet connection. Provides corporate data controls including data encryption, data wipe, user lock screen password enforcement, file classification and storage quotas. WSS2012 R2 models only.
- Increase capacity use with non-intrusive data deduplication that provides an average 50-60% in space savings.
- Reduce your branch office WAN usage by automatically caching frequently accessed corporate datacenter files with Hosted BranchCache.
Protection: Safeguards Your Data
- The HP StoreEasy 1000 Storage protects data while at rest with file system encryption and BitLocker® drive encryption, and while it is being transferred with SMB3 encryption and signing.
- Use File Classification Infrastructure to dynamically identify files based on sensitivity and implement sophisticated access controls using Active Directory Rights Management Services.
- Install and run endpoint protection such as antivirus on the system itself – reducing the cost and complexity of connecting an external endpoint protection server. Prevent against data loss with Volume Shadow Copy Service online snapshots and support for agent based backup software.
- Leverage optional HP LiveVault and HP Data Protector software for security and efficient policy driven offsite cloud and hybrid cloud backup.
Highly Available: Prevents Your User and Organization Disruption
- The HP StoreEasy 1000 Storage increases uptime with such standard features as near continuous health monitoring with HP Active Health System, mirrored OS disks, redundant fans (not available on all models) and power, and advanced memory protection.
- Confidently deploy large volumes leveraging improved file system online self-healing, online verification, and precise and rapid repair that massively reduces downtime from file corruption.
- Built on HP ProLiant Gen8 Server series and Microsoft Windows Storage Server 2012 or 2012 R2, depending on model, for reliability and ease-of-use.
- Three year onsite parts and labor warranty for the system, and one year of 24 x 7 software telephone support.
Specifications
Storage | |
---|---|
Total installed storage capacity | 4 TB |
Storage drives installed | Yes |
Installed storage drive type | HDD |
Number of storage drives installed | 4 |
Supported storage drive types | HDD |
Number of storage drives supported | 4 |
Maximum supported storage capacity | 16 TB |
Storage drive interface | Serial ATA |
Storage drive capacity | 1 TB |
Storage drive size | 3.5" |
Hot-swap drive bays | Yes |
RAID support | Yes |
HDD speed | 7200 RPM |
Processor | |
Processor manufacturer | Intel |
Thermal Design Power (TDP) | 80 W |
Tcase | 76 °C |
System bus rate | 6.4 GT/s |
Stepping | S1 |
Scalability | 2S |
Processor threads | 4 |
Processor socket | LGA 1356 (Socket B2) |
Processor package size | 45 x 42.5 mm |
Processor operating modes | 64-bit |
Processor lithography | 22 nm |
Processor codename | Ivy Bridge EN |
Processor code | SR1AL |
Processor cache type | Smart Cache |
Processor cache | 10 MB |
Processor boost frequency | 1.8 GHz |
Physical Address Extension (PAE) | 46 bit |
PCI Express slots version | 3.0 |
ECC supported by processor | Yes |
CPU configuration (max) | 2 |
Bus type | QPI |
Maximum internal memory supported by processor | 384 GB |
Memory bandwidth supported by processor (max) | 32 GB/s |
Conflict-Free processor | No |
Processor ARK ID | 75975 |
Processor frequency | 1.8 GHz |
Processor family | Intel® Xeon® E5 V2 Family |
Processor model | E5-2403V2 |
Processor cores | 4 |
L3 cache | 10 MB |
Memory | |
Internal memory type | DDR3 |
Internal memory | 8 GB |
Memory slots | 12 DIMM |
Memory form factor | DIMM |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Wi-Fi | No |
Ports & interfaces | |
USB port | Yes |
VGA (D-Sub) ports quantity | 2 |
USB 2.0 ports quantity | 6 |
Serial ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 4 |
Hard drive | |
RAID support | Yes |
HDD speed | 7200 RPM |
Design | |
Cooling type | Active |
Chassis type | Rack (1U) |
Technical details | |
Type | NAS |
Device class | Small & Medium Business |
Number of users | 1300 user(s) |
Chassis type | Rack (1U) |
Performance | |
Type | NAS |
Device class | Small & Medium Business |
Operating system installed | Windows Storage Server 2012 R2 |
Number of users | 1300 user(s) |
Cooling | |
Cooling type | Active |
Software | |
Operating system installed | Windows Storage Server 2012 R2 |
Power | |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 460 W |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 1 |
Weight & dimensions | |
Width | 434.6 mm |
Depth | 750 mm |
Height | 43.2 mm |
Weight | 17.4 kg |
Processor special features | |
Thermal Monitoring Technologies | Yes |
Physical Address Extension (PAE) | Yes |
Number of QPI links | 1 |
Maximum number of PCI Express lanes | 24 |
Intel® Turbo Boost Technology | No |
Intel® Smart Cache | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Identity Protection Technology (Intel® IPT) | No |
Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 0.00 |
Intel TSX-NI | No |
Intel Trusted Execution Technology | Yes |
Intel Secure Key Technology version | 1.00 |
Intel Identity Protection Technology version | 0.00 |
Intel Flex Memory Access | No |
Intel Enhanced Halt State | Yes |
Intel Demand Based Switching | Yes |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Embedded options available | No |
Memory channels supported by processor | Triple |
Memory types supported by processor | DDR3-SDRAM |
Other features | |
Processor ARK ID | 75975 |
