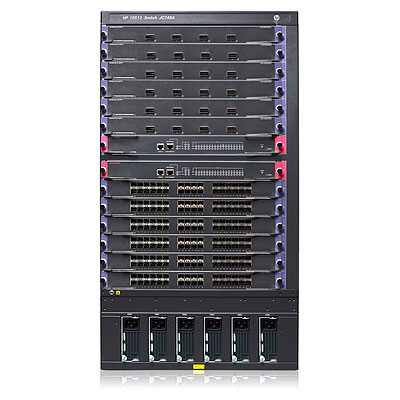

HPE Intellijack 10512 Managed L3+ Black
- Brand: HPE
- Category:
- SKU: JC748A
- EAN: 0886111634514
- Sell Price:
- Contract No:
- Account price:
10512 - MIPS64, 128 MB, 1024 MB DDR2, 11.5 Tbps, 50/60 Hz, 2500 W, 75.4 kg
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
HP 10512 SWITCH CHASSIS | JC748A | Register free see stock |
Related Products
- Network Cards
- Rack Cooling Equipment
- Network Transceiver Modules
- Network Media Converters
- InfiniBand & Fibre Optic Cables
- Network Switch Modules
- IT Support Services
- Computer Cooling System Parts & Accessories
- Warranty & Support Extensions
- Network Switch Components
- Rack Accessories
- Software Licenses/Upgrades
- Power Supply Units
-
Category: Network Cards
-
Category: Network Cards
-
Category: Network Cards
-
Category: Network Cards
-
Category: Network Cards
-
Category: Network Cards
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Media Converters
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: Warranty & Support Extensions
-
Category: Network Switch Components
-
Category: Software Licenses/Upgrades
Description
Overview
The HP 10500 series switches set a new benchmark for performance, reliability, and scalability with a next-generation CLOS architecture. Designed for enterprise campus core networks, the HP 10500 enables a cloud-connected and media-rich capable infrastructure. The 10500 provides industry leading 10GbE/40GbE port density, 3 microsecond latency, and very low energy consumption. With HP IRF technology, the HP 10500 scalability and resiliency can be extended and virtualized across up to 4-chassis with a single management interface enabling flatter, more agile networks. The HP 10500 along with the entire HP FlexNetwork achitecture can be seamlessly managed through a single-pane-of-glass with HP Intelligent Management Center (IMC).
Features
Quality of Service (QoS)
• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic
Firewall
• Stateful firewall: enforces firewall policies to control traffic and filter access to network services; maintains session information for every connection passing through it, enabling the firewall to control packets based on existing sessions
Virtual private network (VPN)
• IPSec: provides secure tunneling over an untrusted network such as the Internet or a wireless network; offers data confidentiality, authenticity, and integrity between two endpoints of the network
Management
• Management interface control: each of the following interfaces can be enabled or disabled depending on security preferences: console port, telnet port, or reset button
Connectivity
• High-density port connectivity: up to 12interface module slots; up to 48 40-GbE ports, 576 10-GbE ports, 576gigabit fiber/electrical ports per system
Performance
• High-speed fully distributed architecture: 21.78 Tbps capable backplane that supports up to 11.52 Tbps switching capacity with Type D fabric modules, providing non-blocking wire-speed 10GbE/40GbEperformance & future 100GbE expansion capability; with 4 fabrics, the switch delivers up to 8571 Mpps throughput; all switching and routing is performed in the I/O modules; meets today's and future demand of bandwidth intensive applications
Resiliency and high availability
• Redundant/Load-sharing fabrics, management, fan assemblies, and power supplies: increase total performance and power available while providing hitless, stateful failover
The HP 10500 series switches set a new benchmark for performance, reliability, and scalability with a next-generation CLOS architecture. Designed for enterprise campus core networks, the HP 10500 enables a cloud-connected and media-rich capable infrastructure. The 10500 provides industry leading 10GbE/40GbE port density, 3 microsecond latency, and very low energy consumption. With HP IRF technology, the HP 10500 scalability and resiliency can be extended and virtualized across up to 4-chassis with a single management interface enabling flatter, more agile networks. The HP 10500 along with the entire HP FlexNetwork achitecture can be seamlessly managed through a single-pane-of-glass with HP Intelligent Management Center (IMC).
Features
Quality of Service (QoS)
• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic
Firewall
• Stateful firewall: enforces firewall policies to control traffic and filter access to network services; maintains session information for every connection passing through it, enabling the firewall to control packets based on existing sessions
Virtual private network (VPN)
• IPSec: provides secure tunneling over an untrusted network such as the Internet or a wireless network; offers data confidentiality, authenticity, and integrity between two endpoints of the network
Management
• Management interface control: each of the following interfaces can be enabled or disabled depending on security preferences: console port, telnet port, or reset button
Connectivity
• High-density port connectivity: up to 12interface module slots; up to 48 40-GbE ports, 576 10-GbE ports, 576gigabit fiber/electrical ports per system
Performance
• High-speed fully distributed architecture: 21.78 Tbps capable backplane that supports up to 11.52 Tbps switching capacity with Type D fabric modules, providing non-blocking wire-speed 10GbE/40GbEperformance & future 100GbE expansion capability; with 4 fabrics, the switch delivers up to 8571 Mpps throughput; all switching and routing is performed in the I/O modules; meets today's and future demand of bandwidth intensive applications
Resiliency and high availability
• Redundant/Load-sharing fabrics, management, fan assemblies, and power supplies: increase total performance and power available while providing hitless, stateful failover
Specifications
Ports & interfaces | |
---|---|
I/O ports | 2 MPU; 4 switch fabric slots; 12 I/O module; Max 576 10-GbE/576 Gigabit/576 SFP /48 40-GbE |
Network | |
IGMP snooping | Yes |
Networking standards | IEEE 802.1ag, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
Spanning tree protocol | Yes |
Routing entries | 512000 |
Rate limiting | Yes |
Link aggregation | Yes |
IP routing | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
10G support | Yes |
Sound emission | |
Acoustic pressure emissions | 66 dB |
Power | |
Power supply slots open | 6 |
Power consumption (typical) | 2500 W |
Output power | 2500 W |
Input voltage | 100-120/200-240 VAC; -48 - -60 VDC |
Input current | 16 - 60 A |
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Management features | |
Switch type | Managed |
MIB support | Yes |
Switch layer | L3+ |
Data transmission | |
Throughput | 8571M pps |
MAC address table | 256000 entries |
Switching capacity | 11500 Gbit/s |
Security | |
MAC address filtering | Yes |
IGMP snooping | Yes |
DHCP features | DHCP server, DHCP client |
Protocols | |
Management protocols | IEEE 802.1AB; RFC 1155; RFC 1157; RFC 1448; RFC 2211; RFC 2819; RFC 3176; RFC 3411; RFC 3412; RFC 3414; RFC 3415; ANSI/TIA-1057 |
Supported network protocols | IEEE 802.1ad Q-in-Q; IEEE 802.1ag; IEEE 802.1p; IEEE 802.1Q; IEEE 802.1s; IEEE 802.1w; IEEE 802.1X; IEEE 802.3ab; IEEE 802.3ac; IEEE 802.3ad; IEEE 802.3ae; IEEE 802.3ah; IEEE 802.3ba; IEEE 802.3x; IEEE 802.3z; RFC 768; RFC 783; RFC 791; RFC 792; RFC 793; RFC 826; RFC 854; RFC 894; RFC 903; RFC 906; RFC 925; RFC 950; RFC 959; RFC 1027; RFC 1035; RFC 1042; RFC 1058; RFC 1142; RFC 1195; RFC 1213; RFC 1256; RFC 1293; RFC 1305; RFC 1350; RFC 1393; RFC 1519; RFC 1531; RFC 1533; RFC 1591; RFC 1624; RFC 1701; RFC 1721; RFC 1723; RFC 1812; RFC 2030; RFC 2082; RFC 2091; RFC 2131; RFC 2138; RFC 2236; RFC 2338; RFC 2453; RFC 2644; RFC 2763; RFC 2784; RFC 2865; RFC 2966; RFC 2973; RFC 3022; RFC 3277; RFC 3567; RFC 3719; RFC 3784; RFC 3786 |
Certificates | |
Safety | CAN/CSA 22.2 No. 60950-1; FCC; FDA 21 CFR; ROHS; IEC 60950-1; EN 60950-1:2006 + A11:2009; AS/NZS 60950-1; IEC 60825-1; UL 60950-1; EN60825-2:2004+A1:2007 |
Electromagnetic compatibility | VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR22 Class A; FCC (CFR 47, Part 15) Class A; GB9254 |
Memory | |
Memory type | DDR2-SDRAM |
Internal memory | 1024 MB |
Flash memory | 128 MB |
Design | |
Safety | CAN/CSA 22.2 No. 60950-1; FCC; FDA 21 CFR; ROHS; IEC 60950-1; EN 60950-1:2006 + A11:2009; AS/NZS 60950-1; IEC 60825-1; UL 60950-1; EN60825-2:2004+A1:2007 |
Product colour | Black |
Electromagnetic compatibility | VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR22 Class A; FCC (CFR 47, Part 15) Class A; GB9254 |
Rack mounting | Yes |
Performance | |
Memory type | DDR2-SDRAM |
Internal memory | 1024 MB |
Flash memory | 128 MB |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 10 - 95% |
Operating altitude | 0 - 4000 m |
Weight & dimensions | |
Width | 440 mm |
Depth | 660 mm |
Height | 797 mm |
Weight | 75.4 kg |
Other features | |
Management platform | IMC; SNMP Manager; Telnet; IEEE 802.3 Ethernet MIB; Ethernet MIB |
Dimensions (WxDxH) | 440 x 660 x 797 mm |
Power requirements | Based on common power supply 2,500 W (AC) |
Mounting | EIA 19" |
Memory and processor | MIPS64 @ 1G MHz |
Input voltage | 100-120/200-240 VAC; -48 - -60 VDC |
Input frequency | 50 - 60 Hz |
Power supply slots open | 6 |
I/O ports | 2 MPU; 4 switch fabric slots; 12 I/O module; Max 576 10-GbE/576 Gigabit/576 SFP /48 40-GbE |
Acoustic pressure emissions | 66 dB |
