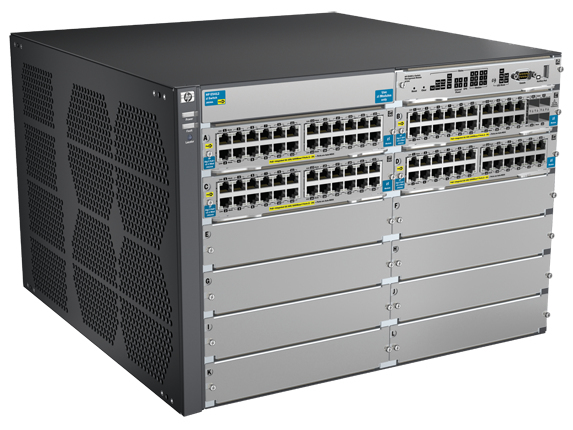

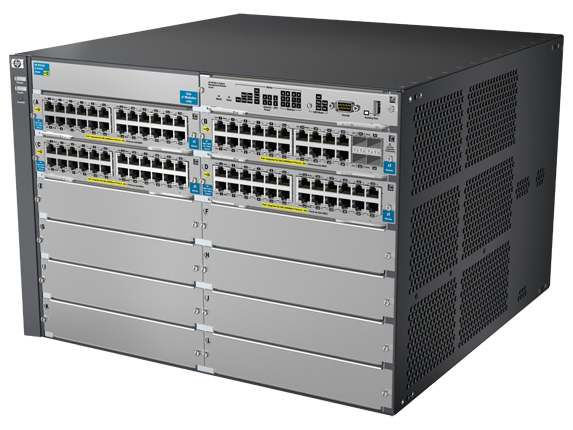

HPE E5412-92G-PoE+/4G-SFP v2 zl w/PS Managed Power over Ethernet (PoE)
- Brand: HPE
- Category:
- SKU: J9540A
- EAN: 0885631941539 0050332143968 08 ...2143968 0885631941522 8856319414920 8856319415088 0885631941515 0885631941546 0885631941553 0885631941492more
HP 5412-92G-PoE+-4G v2 zl Switch with Premium Software
Offer details
Related Products
Description
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
Specifications
Management features | |
---|---|
Multicast support | Yes |
Switch type | Managed |
Quality of Service (QoS) support | Yes |
MIB support | MLDv1 MIB, MIB II, Bridge MIB, RIPv2 MIB, OSPFv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, VRRP MIB, Ping MIB |
Ports & interfaces | |
Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
SFP module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 92 |
SFP/SFP+ slots quantity | 4 |
Network | |
IGMP snooping | Yes |
Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
Full duplex | Yes |
Spanning tree protocol | Yes |
Routing entries | 10000 |
Rate limiting | Yes |
Number of VLANs | 2048 |
Link aggregation | Yes |
IP routing | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
10G support | Yes |
Virtual LAN features | |
Number of VLANs | 2048 |
Data transmission | |
Number of VLANs | 2048 |
Throughput | 564.2 mpps |
Packet buffer memory | 4 MB |
MAC address table | 64000 entries |
Supported data transfer rates | 10/100 Mbps |
Switching capacity | 758.4 Gbit/s |
Maximum data transfer rate | 1 Gbit/s |
Sound emission | |
Acoustic pressure emissions | 57.5 dB |
Performance | |
Packet buffer memory | 4 MB |
Processor frequency | 666 MHz |
Noise level | 64 dB |
Memory type | DDR-SDRAM |
Internal memory | 256 MB |
Flash memory | 128 MB |
Built-in processor | Yes |
Processor model | PowerPC MPC8540 |
Weight & dimensions | |
Weight (imperial) | 34 kg (74.9 lbs) |
Dimensions (W x D x H) (imperial) | 444.5 x 450.9 x 307.3 mm (17.5 x 17.8 x 12.1") |
Weight | 34 kg |
Technical details | |
Processor frequency | 666 MHz |
Noise level | 64 dB |
Built-in processor | Yes |
Security | |
SSH/SSL support | Yes |
Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
MAC address filtering | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
DHCP features | DHCP server, DHCP client |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | IGMPv3, SNMPv1/v2c/v3, XRMON |
Switching protocols | RIPv1 |
Data link protocols | LLDP |
Supported network protocols | IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP, CIDR, SNTP |
Certificates | |
Safety | CSA, UL, IEC, EN |
Electromagnetic compatibility | FCC, VCCI, EN/CISPR |
Memory | |
Packet buffer memory | 4 MB |
Memory type | DDR-SDRAM |
Internal memory | 256 MB |
Flash memory | 128 MB |
Design | |
Safety | CSA, UL, IEC, EN |
Electromagnetic compatibility | FCC, VCCI, EN/CISPR |
Power | |
Power consumption (typical) | 312 W |
Number of power supply units | 2 |
Input voltage | 100 - 240 V |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 15 - 95% |
Operating temperature (T-T) | 32 - 131 °F |
Operating temperature (T-T) | 0 - 55 °C |
Operating relative humidity (H-H) | 15 - 95% |
Operating altitude | 0 - 3000 m |
Heat dissipation | 7400 BTU/h |
Other features | |
Latency | 3.7µs/2.1µs |
Dimensions (WxDxH) | 450.9 x 444.5 x 307.3 mm |
Connectivity technology | Wired |
Wi-Fi | No |
Power supply | 1500 W |
Networking features | Gigabit Ethernet |
Mounting | EIA |
Input voltage | 100 - 240 V |
Input frequency | 50/60 Hz |
Weight (imperial) | 34 kg (74.9 lbs) |
Dimensions (W x D x H) (imperial) | 444.5 x 450.9 x 307.3 mm (17.5 x 17.8 x 12.1") |
Acoustic pressure emissions | 57.5 dB |
