Description

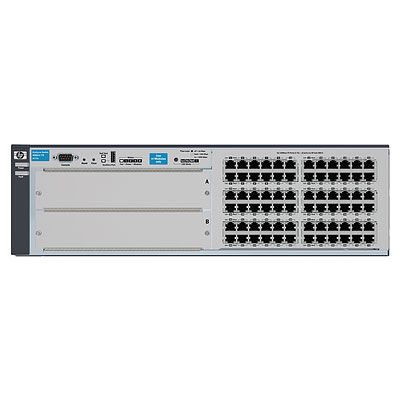

The HP 4200 vl Switch Series consists of modular chassis that provide a flexible, cost-effective LAN solution as an alternative to stackable switches. These switches offer a proven chassis form factor with high quality and reliability in 10/100, 10/100/1000, and 10-Gigabit scalable solutions that integrate easily into any network.
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
Management
• Uni-Directional Link Detection (UDLD): monitors cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
Performance
• Architecture: up to 76.8 Gbps crossbar switching fabric provides wire-speed intra- and inter-module switching with up to 48 million pps throughput built on HP custom-designed ASIC technology
Resiliency and high availability
• IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 trunks, each with up to eight links (ports) per trunk
Manageability
• sFlow (RFC 3176): wire-speed traffic accounting and monitoring
Layer 2 switching
• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
Management
• Uni-Directional Link Detection (UDLD): monitors cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
Performance
• Architecture: up to 76.8 Gbps crossbar switching fabric provides wire-speed intra- and inter-module switching with up to 48 million pps throughput built on HP custom-designed ASIC technology
Resiliency and high availability
• IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 trunks, each with up to eight links (ports) per trunk
Manageability
• sFlow (RFC 3176): wire-speed traffic accounting and monitoring
Layer 2 switching
• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Specifications
Ports & interfaces | |
---|---|
I/O ports | 2 open module slots; 72 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 120 auto-sensing 10/100 ports or 48 Gigabit ports or 8 mini-GBICs or 2 10-GbE ports, or a combination |
Basic switching RJ-45 Ethernet ports quantity | 72 |
Console port | RS-232 |
Performance | |
Packet buffer memory | 36 MB |
Stackable | No |
Processor frequency | 330 MHz |
Internal memory | 64 MB |
Flash memory | 24 MB |
Built-in processor | Yes |
Processor model | PowerPC MPC8245 |
Weight & dimensions | |
Weight (imperial) | Fully loaded 23.81 lb. |
Weight | 10.8 kg |
Power | |
Power supply slots open | 1 |
Power consumption (typical) | 630 W |
Input voltage | 100-127 / 200-240 VAC |
Input current | 3.8 - 8.2 A |
Power source | 1 x J4839A |
Technical details | |
Stackable | No |
Processor frequency | 330 MHz |
Switch fabric speed | 33.6 Gbps |
Supported protocols | General protocols HTML and telnet management IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON Network management MIBs Device management IP multicast IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 3046 DHCP Relay Agent Information Option Security RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2737 Entity MIB (Version 2) QoS/Cos RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF) IEEE 802.1X Port Based Network Access Control; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv2 Secure Shell RFC 3376 IGMPv3 |
Operating altitude (imperial) | up to 15000 ft. |
Management product name | HP ProCurve Manager Plus; HP ProCurve Manager (included) |
Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3 |
Built-in processor | Yes |
Management features | |
Switch type | Managed |
MIB support | Repeater MIB; Ethernet Interface MIB; IEEE 802.3 Ethernet MIB |
Data transmission | |
Throughput | up to 22.4 million pps |
Packet buffer memory | 36 MB |
Switching capacity | 38.4 Gbit/s |
Maximum data transfer rate | 0.1 Gbit/s |
Protocols | |
Supported network protocols | RFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; ANSI/TIA-1057 LLDP Media Endpoint Discovery (MED); RFC 2474 DiffServ Precedence; RFC 2598 DiffServ Expedited Forwarding (EF); RFC 2597 DiffServ Assured Forwarding (AF); RFC 2138 RADIUS; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLAN tagging; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2737 Entity MIB; RFC 2665 Ethernet MIB; RFC 2668 802.3 MAU MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 Syslog; XRMON; RFC 2613 SMON; RFC 2618 RADIUS Client MIB; RFC 791 IP; RFC 1757 RMON Groups 1,2,3,9; RFC 3176 sFlow |
Supported protocols | General protocols HTML and telnet management IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON Network management MIBs Device management IP multicast IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 3046 DHCP Relay Agent Information Option Security RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2737 Entity MIB (Version 2) QoS/Cos RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF) IEEE 802.1X Port Based Network Access Control; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv2 Secure Shell RFC 3376 IGMPv3 |
Certificates | |
Safety | CSA 22.2 No. 950; UL 60950; EN 60950 |
Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3 |
Electromagnetic emissions | FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; CISPR22 Class A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3 |
Memory | |
Packet buffer memory | 36 MB |
Internal memory | 64 MB |
Flash memory | 24 MB |
Design | |
Safety | CSA 22.2 No. 950; UL 60950; EN 60950 |
Stackable | No |
Electromagnetic compatibility | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 32 - 104 °F |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 7.19 kg |
Other features | |
Management platform | HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
Latency | Latency: < 6 µs (FIFO) |
Data transfer rate | 10 Mbit/s |
Dimensions (WxDxH) | 388.6 x 442 x 133.4 mm |
Connectivity technology | Wired |
Remote administration | command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console) |
Power requirements | 100-127 VAC/200-240 VAC; 50/60 Hz |
Mounting | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only. |
Memory and processor | Fabric: Motorola PowerPC MPC8245 @ 330 MHz, 24 MB flash, packet buffer size: 36 MB, 64 MB SDRAM |
Input voltage | 100-127 / 200-240 VAC |
Input frequency | 50 / 60 Hz |
Weight (imperial) | Fully loaded 23.81 lb. |
Switch fabric speed | 33.6 Gbps |
Power supply slots open | 1 |
Operating altitude (imperial) | up to 15000 ft. |
Management product name | HP ProCurve Manager Plus; HP ProCurve Manager (included) |
I/O ports | 2 open module slots; 72 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 120 auto-sensing 10/100 ports or 48 Gigabit ports or 8 mini-GBICs or 2 10-GbE ports, or a combination |
Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3 |
Electromagnetic emissions | FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; CISPR22 Class A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3 |
Supported protocols | General protocols HTML and telnet management IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON Network management MIBs Device management IP multicast IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 3046 DHCP Relay Agent Information Option Security RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2737 Entity MIB (Version 2) QoS/Cos RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF) IEEE 802.1X Port Based Network Access Control; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv2 Secure Shell RFC 3376 IGMPv3 |
