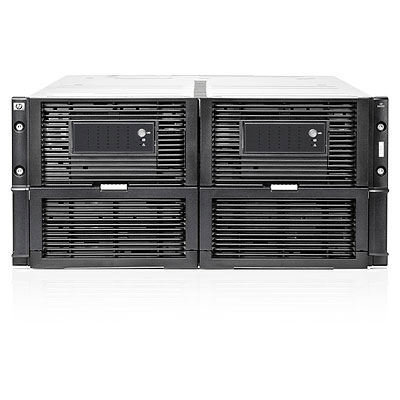

HP D6000 w/35 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 140TB Bundle | 3127692 | Register free see stock |
Related Products
- Internal Hard Drives
- Servers
- Warranty & Support Extensions
- Exchange Datacom Modules
- Serial Attached SCSI (SAS) Cables
- RAID Controllers
- IT Support Services
- Network Switches
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Internal Hard Drives
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Serial Attached SCSI (SAS) Cables
-
Category: Serial Attached SCSI (SAS) Cables
-
Category: RAID Controllers
-
Category: RAID Controllers
-
Category: RAID Controllers
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
Description
Finding it difficult to keep up with the growth in unstructured data? Looking for a cost-effective high capacity direct attach storage (DAS) option? The HP D6000 Disk Enclosure with 6 Gb/s with straight forward SAS architecture is ideal for direct attached storage for HP BladeSystem servers. You get the simplicity and cost effectiveness of DAS without sacrificing flexibility or performance.
The 6 Gb/s SAS BL switches support up to six D6000 Disk Enclosures, for up to 1260TB of in-rack storage. Groups of drives are zoned directly to individual blade servers, appearing as local storage to that server allowing multiple servers to own HDD in an enclosure rather than being limited to one server seeing only one JBOD.
With D6000 Disk Enclosure zoned direct attach capabilities, server administrators can build local storage on the fly according to their configuration requirements.
Features
High-density, Low-cost External SAS Storage for BladeSystem Servers
The 6 Gb/s SAS HP D6000 Disk Enclosure is designed with two pull-out disk drawers to support hot plug large form factor (LFF) SAS or SAS mid-line (MDL) drives in just 5U of rack space for you that require a dense storage option with one of the lowest acquisition costs that optimizes cost per U.
The simplicity of an in-rack storage solution reduces your expense and complexity from the storage architecture; just a Smart Array P721m Controller in the blade server, 6 Gb/s SAS BL Switches in the blade enclosure connect to up to six D6000 Disk Enclosures.
Supports up to six D6000 from a single BladeSystem enclosure providing up to 1680TB of in-rack storage for customers requiring high-density, low-cost storage.
Build Local Storage on the fly for BladeSystem Servers
The HP D6000 Disk Enclosure uses the management software of the 6 Gb/s SAS BL Switch to group D6000 drives and assign them to individual blade servers. These drives now appear as local storage to that server.
With D6000 zoned direct attach capabilities server administrators can build local storage on the fly according to their configuration requirements.
Just add additional drives to the D6000 and zone to a newly deployed blade server, or add capacity to the zone of an existing blade server configuration. No need for complex configuration or rewiring.
High Performance 6 Gb/s SAS Connectivity to External Storage
The HP D6000 Disk Enclosure delivers 6 Gb/s host connectivity enabling higher performance, eases configuration/deployment and broadens supported features of an D6000 using HP Smart Array P721m Controller and 6 Gb/s SAS BL Switches.
With the D6000, applications and storage are installed in the same rack. Latency is reduced as data does not travel over large distances.
A Smart Array P721m Controller installed in the blade server provides 2GB flash-backed write cache (FBWC).
The 6 Gb/s SAS BL switches support up to six D6000 Disk Enclosures, for up to 1260TB of in-rack storage. Groups of drives are zoned directly to individual blade servers, appearing as local storage to that server allowing multiple servers to own HDD in an enclosure rather than being limited to one server seeing only one JBOD.
With D6000 Disk Enclosure zoned direct attach capabilities, server administrators can build local storage on the fly according to their configuration requirements.
Features
High-density, Low-cost External SAS Storage for BladeSystem Servers
The 6 Gb/s SAS HP D6000 Disk Enclosure is designed with two pull-out disk drawers to support hot plug large form factor (LFF) SAS or SAS mid-line (MDL) drives in just 5U of rack space for you that require a dense storage option with one of the lowest acquisition costs that optimizes cost per U.
The simplicity of an in-rack storage solution reduces your expense and complexity from the storage architecture; just a Smart Array P721m Controller in the blade server, 6 Gb/s SAS BL Switches in the blade enclosure connect to up to six D6000 Disk Enclosures.
Supports up to six D6000 from a single BladeSystem enclosure providing up to 1680TB of in-rack storage for customers requiring high-density, low-cost storage.
Build Local Storage on the fly for BladeSystem Servers
The HP D6000 Disk Enclosure uses the management software of the 6 Gb/s SAS BL Switch to group D6000 drives and assign them to individual blade servers. These drives now appear as local storage to that server.
With D6000 zoned direct attach capabilities server administrators can build local storage on the fly according to their configuration requirements.
Just add additional drives to the D6000 and zone to a newly deployed blade server, or add capacity to the zone of an existing blade server configuration. No need for complex configuration or rewiring.
High Performance 6 Gb/s SAS Connectivity to External Storage
The HP D6000 Disk Enclosure delivers 6 Gb/s host connectivity enabling higher performance, eases configuration/deployment and broadens supported features of an D6000 using HP Smart Array P721m Controller and 6 Gb/s SAS BL Switches.
With the D6000, applications and storage are installed in the same rack. Latency is reduced as data does not travel over large distances.
A Smart Array P721m Controller installed in the blade server provides 2GB flash-backed write cache (FBWC).
Specifications
Storage | |
---|---|
Total installed storage capacity | 140 TB |
Installed storage drive type | HDD |
Number of storage drives installed | 35 |
Supported storage drive types | HDD |
Number of storage drives supported | 70 |
Storage drive interface | Serial Attached SCSI (SAS) |
Storage drive capacity | 4 TB |
Storage drive size | 3.5" |
Storage drives installed | Yes |
RAID levels | 0, 1 ADM, 1, 1+0, 5, 6, 50, 60 |
Data transfer rate | 6 Gbit/s |
Technical details | |
Redundant fans support | Yes |
Number of fans | 4 fan(s) |
Product colour | Aluminium, Black |
Chassis type | Rack (5U) |
Data transfer rate | 6 Gbit/s |
Design | |
Redundant fans support | Yes |
Number of fans | 4 fan(s) |
Product colour | Aluminium, Black |
Chassis type | Rack (5U) |
Hard drive | |
RAID levels | 0, 1 ADM, 1, 1+0, 5, 6, 50, 60 |
Power | |
Power supply unit (PSU) capacity | 1200 W |
Redundant power supply (RPS) support | Yes |
System requirements | |
Server operating systems supported | Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
Linux operating systems supported | Yes |
Weight & dimensions | |
Width | 482.6 mm |
Depth | 936.8 mm |
Weight | 159.9 kg |
Height | 219.2 mm |
