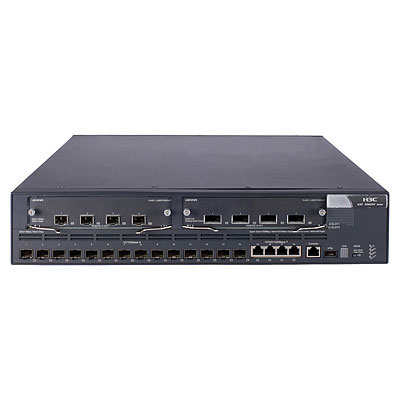

HPE A 5820-14XG-SFP+ Managed L2 Gigabit Ethernet (10/100/1000) 2U Grey

  • Brand: HPE
  • Category:
  • SKU: JC106A
  • EAN: 0885631166246 8856311662466 50 ...1662466 5057103186716more
14x SFP+ 10-GbE, 2x extended module slots, 1x open module slot, 4x RJ-45 10/100/1000 (IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T), 488 Gbps, 363 Mpps, 15.1 kg, Grey

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK HPE 5820-14XG-SFP+ Switch with 2 Slots - Switch - Managed - 4 x 10/100/1000 + 14 x SFP+ - rack-mountable 1991209 Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £3,537.00

Related Products

Description

The HP A5820 Switch Series features advanced flex-chassis switches that deliver a unique combination of unmatched 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) connectivity, high-availability architecture, full Layer 2/3 dual-stack IPv4/v6, and line-rate, low-latency performance on all ports. Extensible embedded application capabilities enable these switches to integrate services into the network, consolidating devices and appliances to simplify deployment and reduce power consumption and rack space. Extremely versatile, the switches can be used in high-performance, high-density building or department cores as part of a consolidated network; for data center top-of-rack server access; or as high-performance Layer 3, 10-GbE aggregation switches in campus and data center networks.

- For enterprise core, distribution, data center.
- Up to 24 ports 10 GbE per unit / 194 per stack.
- Flex chassis—modular resiliency.
- Cut-through switching for very low latency.
- Hot-swappable I/O, power supplies, and fans.

Specifications

Ports & interfaces
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
SFP+ module slots quantity14
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity4
SFP/SFP+ slots quantity14
Fiber optic connectorSFP+
CX4 ports quantity10
Console portRJ-45
Virtual LAN features
VLAN supportYes
Number of VLANs4094
Data transmission
Number of VLANs4094
Throughput363 Mpps
Packet buffer memory2 MB
MAC address table32000 entries
Supported data transfer rates10/100/1000 Mbit/s
Switching capacity488 Gbit/s
Jumbo frames supportYes
Maximum data transfer rate1 Gbit/s
Optical fiber
Fiber optic connectorSFP+
Sound emission
Acoustic pressure emissions44.3 dB
Performance
Packet buffer memory2 MB
StackableYes
Memory typeSDRAM
Internal memory512 MB
Flash memory512 MB
Technical details
Form factor2U
Product colourGrey
StackableYes
Rack mountingYes
Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2
Network
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Networking standardsIEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Routing entries12000
Port mirroringYes
Number of VLANs4094
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportYes
Security
SSH/SSL supportYes
Security algorithms802.1x RADIUS, SSH-2, SSL/TLS
DHCP featuresDHCP server, DHCP client
Protocols
Management protocolsSNMPv1/v2c/v3, LLDP, RMON, sFlow, OSPF, OSPFv3, BFD, VRRP, PIM-SSM, PIM-DM, PIM-SM, ECMP
Certificates
SafetyUL, EN, IEC, CAN/CSA, FDA, ROHS
Memory
Packet buffer memory2 MB
Memory typeSDRAM
Internal memory512 MB
Flash memory512 MB
Design
SafetyUL, EN, IEC, CAN/CSA, FDA, ROHS
Form factor2U
Product colourGrey
StackableYes
LED indicatorsYes
Rack mountingYes
Indication
LED indicatorsYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)300 W
Number of power supply units2
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation836 BTU/h
Weight & dimensions
Width467 mm
Depth439.9 mm
Height86.1 mm
Weight15.1 kg
Other features
Latency2.02 µs
Dimensions (WxDxH)439.9 x 467 x 86.1 mm
Acoustic pressure emissions44.3 dB
