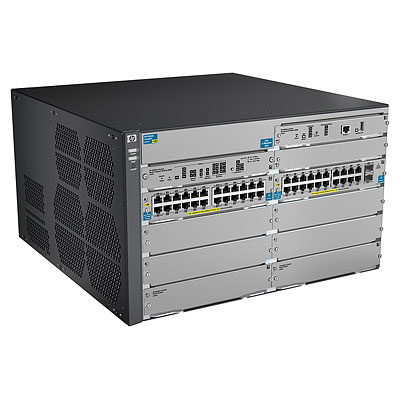

HPE 8206-44G-PoE+-2XG v2 zl Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 6U Black, Grey
- Brand: HPE
- Category:
- SKU: J9638A
- EAN: 0885631941706 0885631941713 08 ...1941713 0885631941676 0885631941683 8856319416696 8856319416764 0885631941669 8856319416832 7330381154096 4053162392397 0734646502269more
8206-44G-PoE+-2XG v2 zl Switch w/ Premium Software
Offer details
Related Products
- InfiniBand & Fibre Optic Cables
- Network Transceiver Modules
- Network Switch Modules
- Power Cables
- Network Switch Components
- IT Support Services
- Network Media Converters
- Warranty & Support Extensions
- Coaxial Cables
- Signal Cables
- Network Cards
- Installation Services
- Software Licenses/Upgrades
- Power Supply Units
Description
The HP 8200 zl Switch Series offers high performance, scalability, and a wide range of features in a high-availability platform that dramatically reduces complexity and provides reduced cost of ownership. As part of a unified wired and wireless network infrastructure solution, the 8200 zl switch series provides platform technology, system software, system management, application integration, wired and wireless integration, network security, and support that are common across HP modular and fixed-port switches.
Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl switch series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments.
It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
Software-defined networking
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues
Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.
Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
HP AllianceOne integration
HP AllianceONE Services zl Module: allows you to embed applications directly into the network, either distributed throughout the network at the network edge or centralized in the core or distribution layer; for more information about the HP AllianceONE solution, visit the HP website
Management
Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch anywhere on the network
RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
HP unified core-to-edge device/network management tools: provide HP networking portfolio-common device-level tools (CLI, Web GUI, and Menu) plus seamless integration into HP PCM+/Identity Driven Manager (IDM) network management deployments
Together, they deliver an agile, cost-effective, high-availability network solution. With key technologies to provide solution longevity, the 8200 zl switch series is built to deliver long-term investment protection without added complexity for network core, aggregation, and high-availability access layer deployments.
It provides these capabilities while bringing to market the industry's first highly available switch with a lifetime warranty.
Software-defined networking
OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
Traffic prioritization: allows real-time traffic classification into eight priority levels mapped to eight queues
Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.
Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
HP AllianceOne integration
HP AllianceONE Services zl Module: allows you to embed applications directly into the network, either distributed throughout the network at the network edge or centralized in the core or distribution layer; for more information about the HP AllianceONE solution, visit the HP website
Management
Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch anywhere on the network
RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
HP unified core-to-edge device/network management tools: provide HP networking portfolio-common device-level tools (CLI, Web GUI, and Menu) plus seamless integration into HP PCM+/Identity Driven Manager (IDM) network management deployments
Specifications
Virtual LAN features | |
---|---|
VLAN support | Yes |
Performance | |
Stackable | No |
Noise level | 60 dB |
Technical details | |
Form factor | 6U |
Product colour | Black, Grey |
Stackable | No |
Noise level | 60 dB |
Rack mounting | Yes |
Management features | |
Switch type | Managed |
Switch layer | L3 |
Ports & interfaces | |
SFP+ module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports quantity | 44 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Console port | RS-232 |
Network | |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
Full duplex | Yes |
VLAN support | Yes |
Spanning tree protocol | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | Yes |
Data transmission | |
Throughput | 369.6 Mpps |
Latency (1 Gbps) | 3.7 µs |
Latency (10 Gbps) | 2.1 µs |
MAC address table | 64000 entries |
Supported data transfer rates | 10/100/1000 Mbps |
Switching capacity | 496.8 Gbit/s |
Maximum data transfer rate | 1 Gbit/s |
Security | |
DHCP features | DHCP client |
Protocols | |
Management protocols | SNMPv1/v2c/v3 |
Certificates | |
Safety | CSA, UL, IEC, EN |
Electromagnetic compatibility | FCC, ICE, VCCI, EN |
Design | |
Safety | CSA, UL, IEC, EN |
Form factor | 6U |
Product colour | Black, Grey |
Stackable | No |
Electromagnetic compatibility | FCC, ICE, VCCI, EN |
Rack mounting | Yes |
Power | |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 15 - 95% |
Operating temperature (T-T) | 0 - 45 °C |
Operating relative humidity (H-H) | 15 - 95% |
Operating altitude | 0 - 3000 m |
Heat dissipation | 2450 BTU/h |
Weight & dimensions | |
Width | 442.5 mm |
Depth | 444.2 mm |
Height | 262.9 mm |
Weight | 27.9 kg |
Other features | |
Latency | 3.7 |
Dimensions (WxDxH) | 442.5 x 444.2 x 262.9 mm |
Connectivity technology | Wired |
Ethernet LAN | Yes |
