HPE 6125XLG Managed 10G Ethernet (100/1000/10000) Black

  • Brand: HPE
  • Category:
  • SKU: 711307-B21
  • EAN: 0887111745286 4948382979872 88 ...2979872 8871117452868more

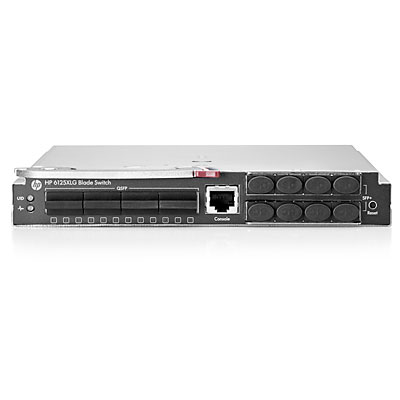

HP 6125XLG Ethernet Blade Switch

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast/Data Select HP 6125XLG BLADE SWITCH 711307-B21 Register free see stock
Memory Bank HP 6125XLG BLADE SWITCH CL711307-B21

Retail Prices

Merchant Product Condition Updated Price
Amazon Used £1,269.84

Related Products

Description

The HP 6125XLG Ethernet Blade Switch is the next generation blade switching technology for data center environments that delivers a high-performance, feature-rich, and low-latency 10/40 GbE switch. HP 6125XLG provides a converged fabric solution that supports Ethernet, Fibre Channel over Ethernet (FCoE), and Fibre Channel Forwarder (FCF) protocols that enables connectivity for FCoE storage solutions. The HP 6125XLG is protected by HP Services 3-Years Next Business Day 9x5 Hardware Support.

Specifications

Management features
Multicast supportYes
Switch typeManaged
Quality of Service (QoS) supportYes
Network
IGMP entries1024
Networking standardsIEEE 1588v2, IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ah
VLAN supportYes
Number of VLANs4094
Link aggregationYes
IP routingYes
10G supportYes
Policy-based routingYes
Virtual LAN featuresMulticast VLAN, Private VLAN
Virtual LAN features
VLAN supportYes
Number of VLANs4094
Virtual LAN featuresMulticast VLAN, Private VLAN
Data transmission
Number of VLANs4094
Jumbo frames10000
Latency (10 Gbps)1 µs
MAC address table128000 entries
Switching capacity40 Gbit/s
Jumbo frames supportYes
Static routeYes
Throughput880 Gbit/s
Performance
StackableYes
Internal memory2048 MB
Flash memory512 MB
Technical details
Product colourBlack
StackableYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity1
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Security
SSH/SSL supportYes
Security algorithmsIPSec, SNMP, SNMPv2, SNMPv3
Authentication typeHWTACACS+, RADIUS
IGMP entries1024
DHCP featuresDHCP client, DHCPv6 client
Multicast features
Multicast supportYes
Protocols
Routing protocolsBGP, MPLS, OSPF, OSPFv3, RIP, RIPng, VRRP
Certificates
CertificationComplies with UL 60950-1, CAN/CSA C22.2 No. 60950-1 and EN 60950-1. UL certified. CE Marking
Memory
Internal memory2048 MB
Flash memory512 MB
Design
Product colourBlack
StackableYes
CertificationComplies with UL 60950-1, CAN/CSA C22.2 No. 60950-1 and EN 60950-1. UL certified. CE Marking
Power
Power consumption (typical)95 W
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
Operating temperature (T-T)10 - 35 °C
Weight & dimensions
Width192.8 mm
Depth267.7 mm
Height27.9 mm
Weight2 kg
Packaging data
Package width370 mm
Package depth293 mm
Package height95 mm
Package weight2.1 kg
