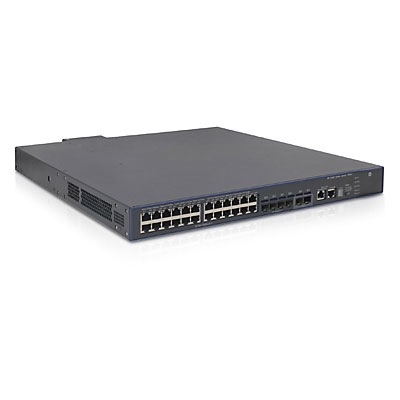

HPE 5500-24G-PoE+-4SFP HI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
- Brand: HPE
- Category:
- SKU: JG541A
- EAN: 0887111430434 0012302529707 88 ...2529707 8871114304344 0385646968779 4054842139523more
- Sell Price:
- Contract No:
- Account price:
HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
HP 5500-24G-PoE+-4SFP HI Switch w/2 Slt | 2776586 | Register free see stock |
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £888.67 |
Related Products
- InfiniBand & Fibre Optic Cables
- Network Transceiver Modules
- Network Media Converters
- Network Switch Modules
- IT Support Services
- Warranty & Support Extensions
- Network Switch Components
- Network Cards
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: InfiniBand & Fibre Optic Cables
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Transceiver Modules
-
Category: Network Media Converters
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: Network Switch Modules
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: IT Support Services
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Network Switch Components
-
Category: Network Switch Components
-
Category: Network Switch Components
-
Category: Network Switch Components
Description
The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support at the edge layer of large campus and branch networks. The HP 5500 HI has a robust feature set supporting 1440W PoE+, fixed and modular 10GbE, 9 chassis IRF stacking, Static & RIP Routing, OSPF, MPLS, ACLs, IPv6 and Energy Efficient Ethernet.
The HP 5500 HI Switch Series offers advanced technologies including OAM, CFD, Multi-level QoS, MPLS, and VPLS, and can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.
Features
Highly Resilient, More Secure and Scalable Access Layer Switches
The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support capabilities features at the edge layer of data center and large campus networks. Advanced technologies include OAM, CFD, RRPP, BFD, Multi-level QoS, MPLS, and VPLS.
Offers scalable stacking with fixed or modular 10GbE uplinks (SFP+ and 10GBASE-T) and up to 1440W of PoE+ power with dual redundant hot-swappable power supplies for growth and reliability.
The HP Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks. The 5500 HI has IPv6 support and fully featured L3 functionality, including RIP, OSPF, ISIS, BGP, and PIM.
Includes software-defined network (SDN) capabilities with OpenFlow 1.3 support for future proofing your network.
Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Powerful Performance with Higher Levels of Security
The 5500 HI Switch Series provides higher levels of security with hardware-based, wire-speed access control lists (ACLs).
Provides simple administration without impacting network performance offering feature-rich TCAM-based ACL implementation.
Non-blocking architecture delivers up to 224 Gbps of wire-speed switching with a non-blocking switching fabric and up to 167 million pps throughput.
Robust Quality of Service
The HP 5500 HI Switch Series supports advanced classifier-based QoS which classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.
Creates traffic classes based on ACLs, IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark.
Get extensive traffic prioritization with congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), SP+WDRR, and SP+WFQ.
Comprehensive Security Control and a Single View of the Network
The HP 5500 HI Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.
Offers identity-driven security and access control with automatic VLAN assignment and per-user ACLs allow access to specific network services without risking network security. Security features include: IP source guard, DHCPv6 snooping, STP BPDU port protection, RADIUS/HWTACACS, and SSL.
Can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Specifications
Performance | |
---|---|
Packet buffer memory | 3 MB |
Stackable | Yes |
Memory type | SDRAM |
Internal memory | 1024 MB |
Flash memory | 512 MB |
Technical details | |
Product colour | Black |
Stackable | Yes |
Rack mounting | Yes |
Management features | |
Switch type | Managed |
Switch layer | L3 |
Ports & interfaces | |
SFP module slots quantity | 4 |
SFP+ module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Data transmission | |
Throughput | 130.9 Mpps |
Latency (1 Gbps) | 5 µs |
Latency (10 Gbps) | 3 µs |
Packet buffer memory | 3 MB |
Switching capacity | 176 Gbit/s |
Memory | |
Packet buffer memory | 3 MB |
Memory type | SDRAM |
Internal memory | 1024 MB |
Flash memory | 512 MB |
Design | |
Product colour | Black |
Stackable | Yes |
Rack mounting | Yes |
Power | |
Power supply included | No |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE) | |
Total Power over Ethernet (PoE) budget | 740 W |
Power over Ethernet (PoE) | Yes |
Weight & dimensions | |
Width | 439.9 mm |
Depth | 460 mm |
Height | 43.7 mm |
Weight | 10 kg |
