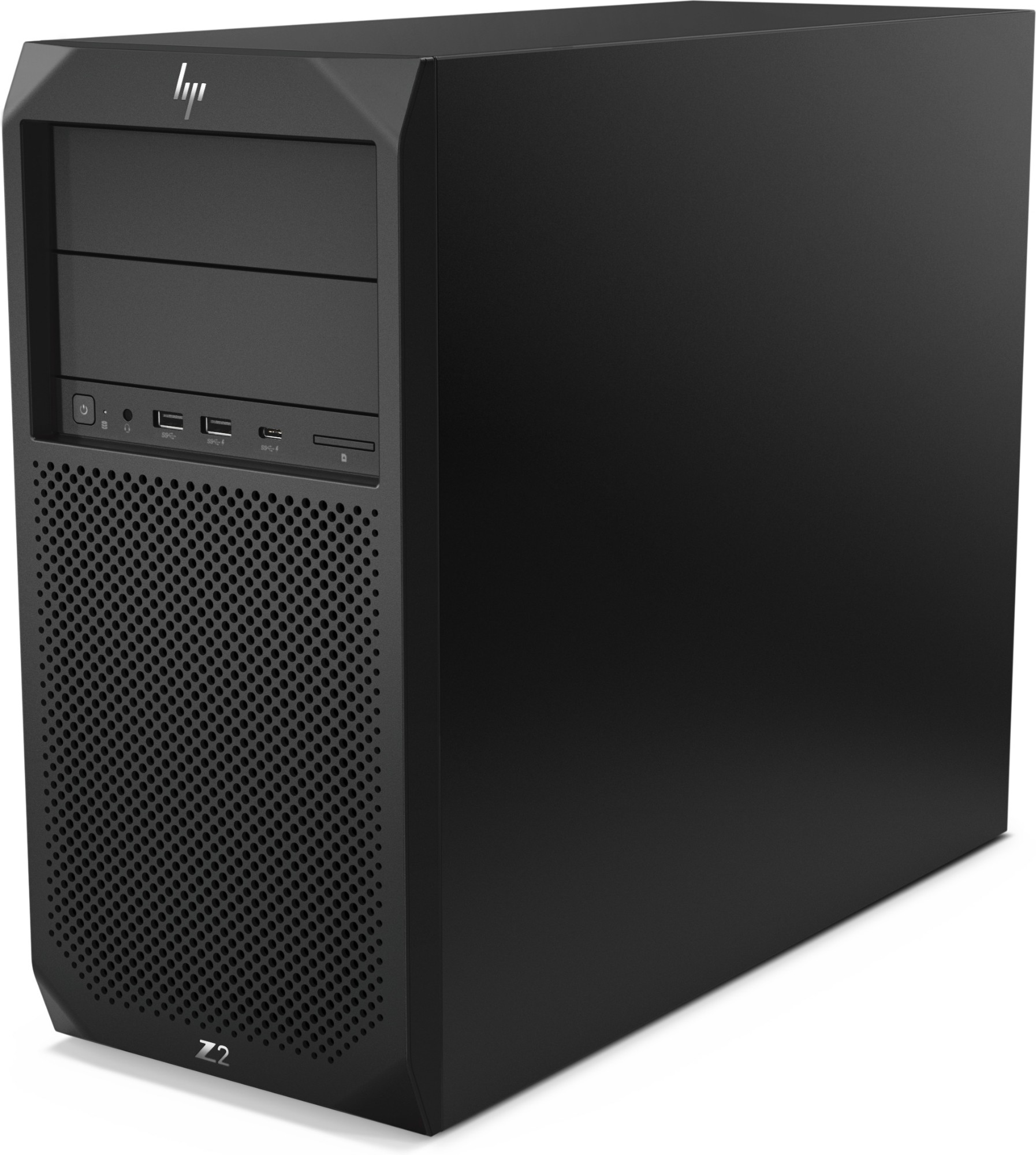

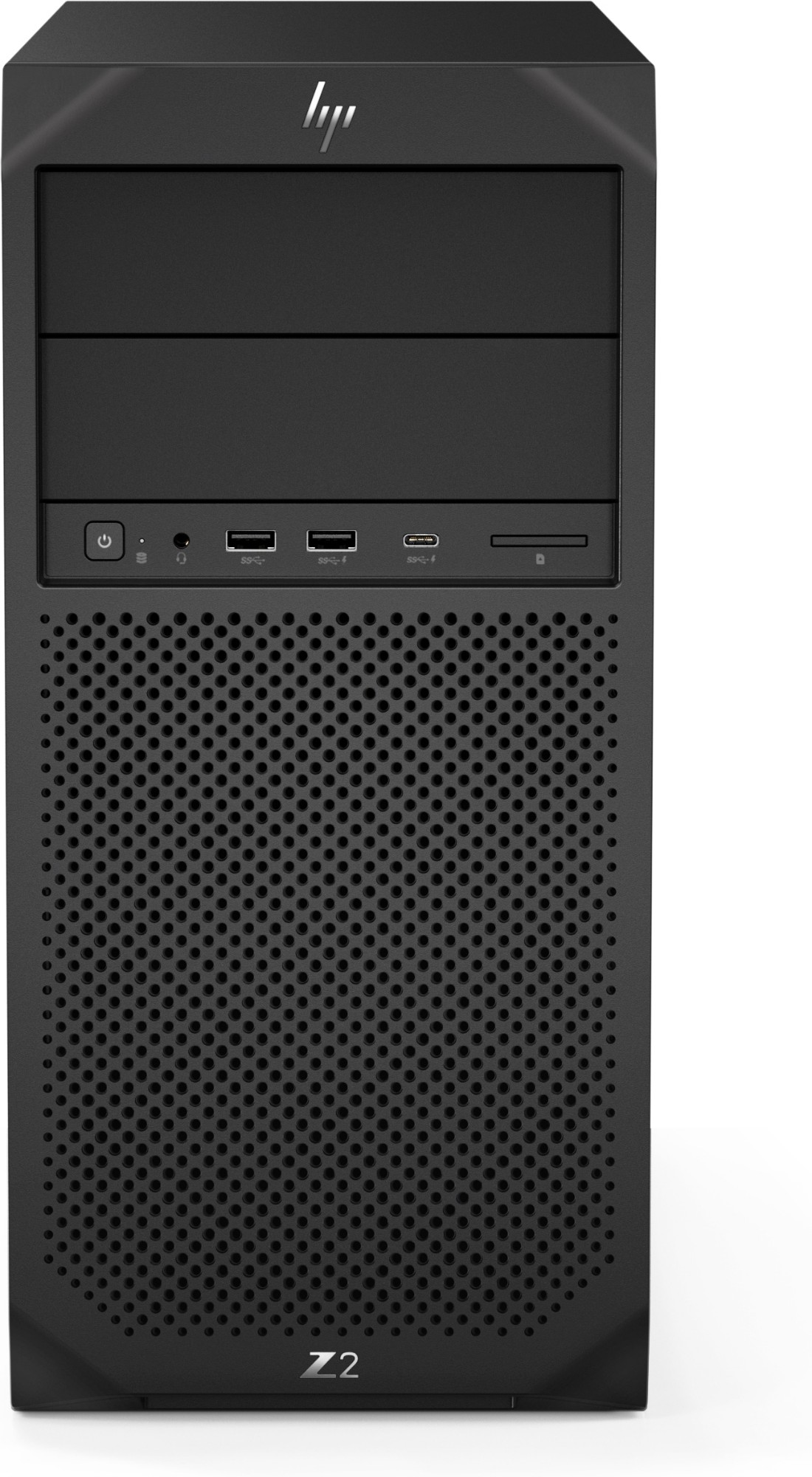

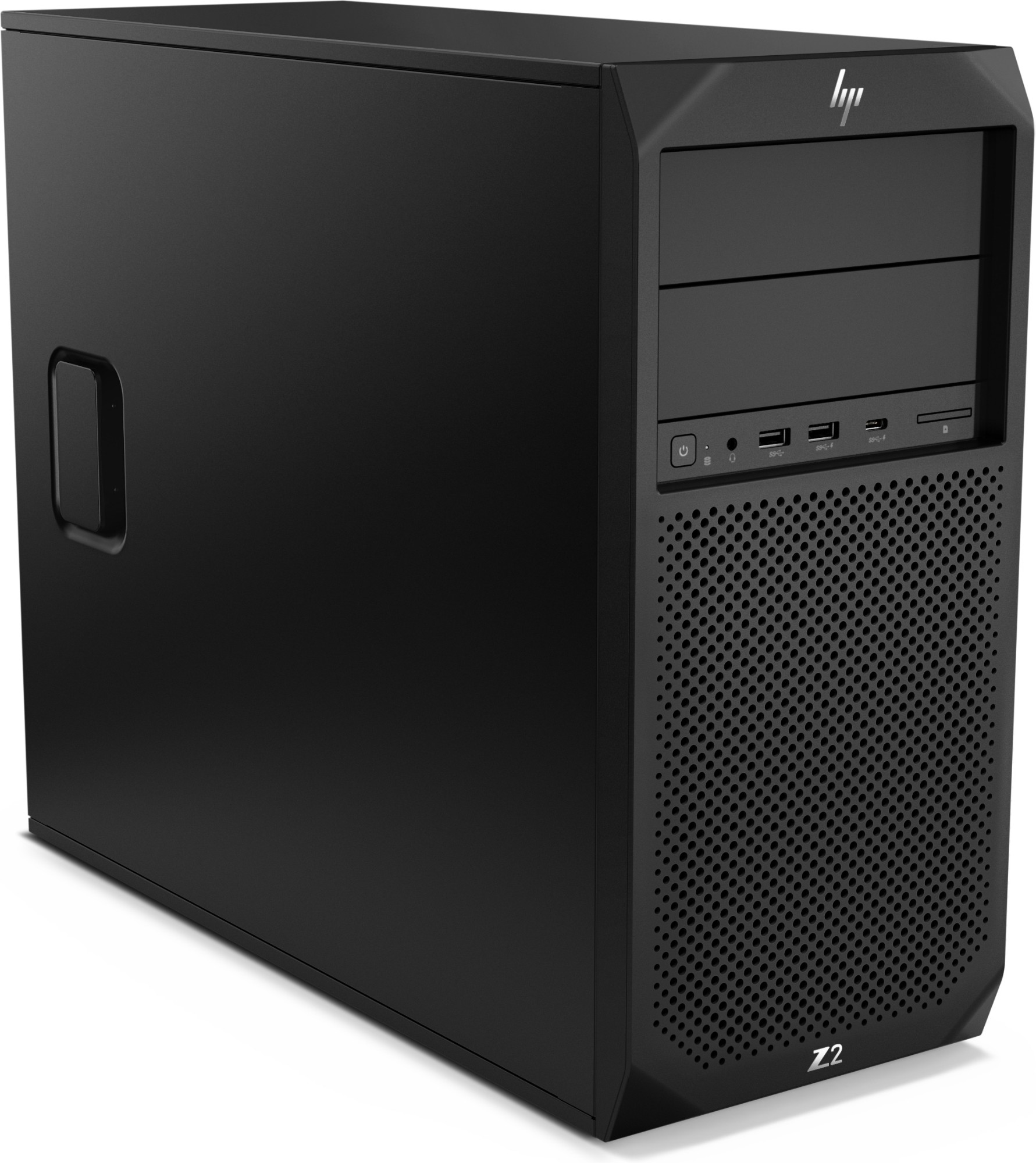

HP Z2 G4 Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 1 TB HDD Windows 10 Pro Tower Workstation Black

HP Z2 G4 Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 1 TB HDD Windows 10 Pro Tower Workstation Black

  • Brand: HP
  • Category:
  • SKU: 6TS89EA#ABU
  • EAN: 0193905658558 0193905658633 01 ...5658633 0193905658862 0193905658848 0193905658701 0193905658527 0193905658909 0193905658855 0193905658534 0193905658381 0193905658671 0193905670901 0193905658800 0193905658602 0193905658565 0193905658695 0193905658619 0193905658626 0193905658787 0193905658794more
Intel Core i7-8700 (12MB Cache, 3.2GHz), 16GB DDR4-SDRAM, 1000GB HDD, 16GB Intel Optane Memory, Intel UHD Graphics 630, LAN, Windows 10 Pro 64-bit

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast/Data Select HP Z2G4T I78700 16GB/1TB PC 6TS89EA#ABU Register free see stock
Memory Bank HP Z2G4T I78700 16GB/1TB PC CL6TS89EA#ABU

Related Products

Reasons To Buy

Take processing to record speeds

Crush demanding single and multi-threaded workflows and take on aggressive multi-tasking without throttling. We redesigned our proprietary motherboard to give you full performance, while keeping components running cool and quiet.

Built to expand

Need to swap graphics cards? Increase CPU power? Add specialized PCIe cards? Go for it. Our most expandable entry workstation is an investment that will last for years.

Self-encrypting drives

With optional self-encryption drives, you have confidence knowing that if your storage device falls into the wrong hands, your valuable IP cannot be accessed. <sup>[7]</sup>

Windows 10 Pro 64

Work without compromising on performance or security with Windows 10 Pro, powered by HP’s collaboration and connectivity technology.

Intel® Core™ i7 processor

Run several CPU–heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor. <sup>[3]</sup>

Safeguard your data. Protect your privacy.

Advanced security features come standard on every Z2 Tower. System safeguards like HP Client Security Suite Gen3<sup>[1]</sup> and HP Sure Start Gen4<sup>[2]</sup> - the industry’s first self-healing BIOS - mean your device is locked down tight, so your data and identity are too.

Description

Work fast with our most powerful entry workstation
Experience server-grade power in a desktop with impressive expandability. Cut through complex BIM, rendering and visualization projects with high-performance graphics and Intel® processers.

Specifications

Processor
Processor generation8th gen Intel® Core™ i7
Processor operating modes64-bit
Processor lithography14 nm
Processor codenameCoffee Lake
Bus typeDMI3
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Tjunction100 °C
Thermal Design Power (TDP)65 W
Processor seriesIntel Core i7-8700 Desktop Series
PCI Express configurations1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes16
Memory bandwidth supported by processor (max)41.6 GB/s
Processor cache typeL3
Conflict-Free processorYes
Processor cache12 MB
Processor frequency3.2 GHz
Processor modeli7-8700
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency4.6 GHz
System bus rate8 GT/s
Processor socketLGA 1151 (Socket H4)
Processor threads12
Processor cores6
PCI Express slots version3.0
Processor familyIntel® Core™ i7
Memory
ECCNo
Memory layout (slots x size)1 x 16 GB
Internal memory16 GB
Memory slots4x DIMM
Internal memory typeDDR4-SDRAM
Memory clock speed2666 MHz
Storage
Intel® Optane™ Memory module installedYes
Storage mediaHDD
Number of storage drives installed1
Number of HDDs installed1
Optical drive typeNo
HDD capacity1000 GB
HDD speed7200 RPM
HDD interfaceSATA
Card reader integratedNo
Total storage capacity1000 GB
Intel® Optane™ Memory module capacity16 GB
Total HDDs capacity1000 GB
Graphics
Discrete graphics cardNo
On-board graphics card dynamic frequency (max)1200 MHz
On-board graphics card base frequency350 MHz
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card OpenGL version4.5
On-board graphics card DirectX version12.0
Number of execution units24
On-board graphics card ID0x3E92
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics 630
Optical drive
Optical drive typeNo
Network
Ethernet LANYes
Wi-FiNo
Ethernet LAN data rates10,100,1000 Mbit/s

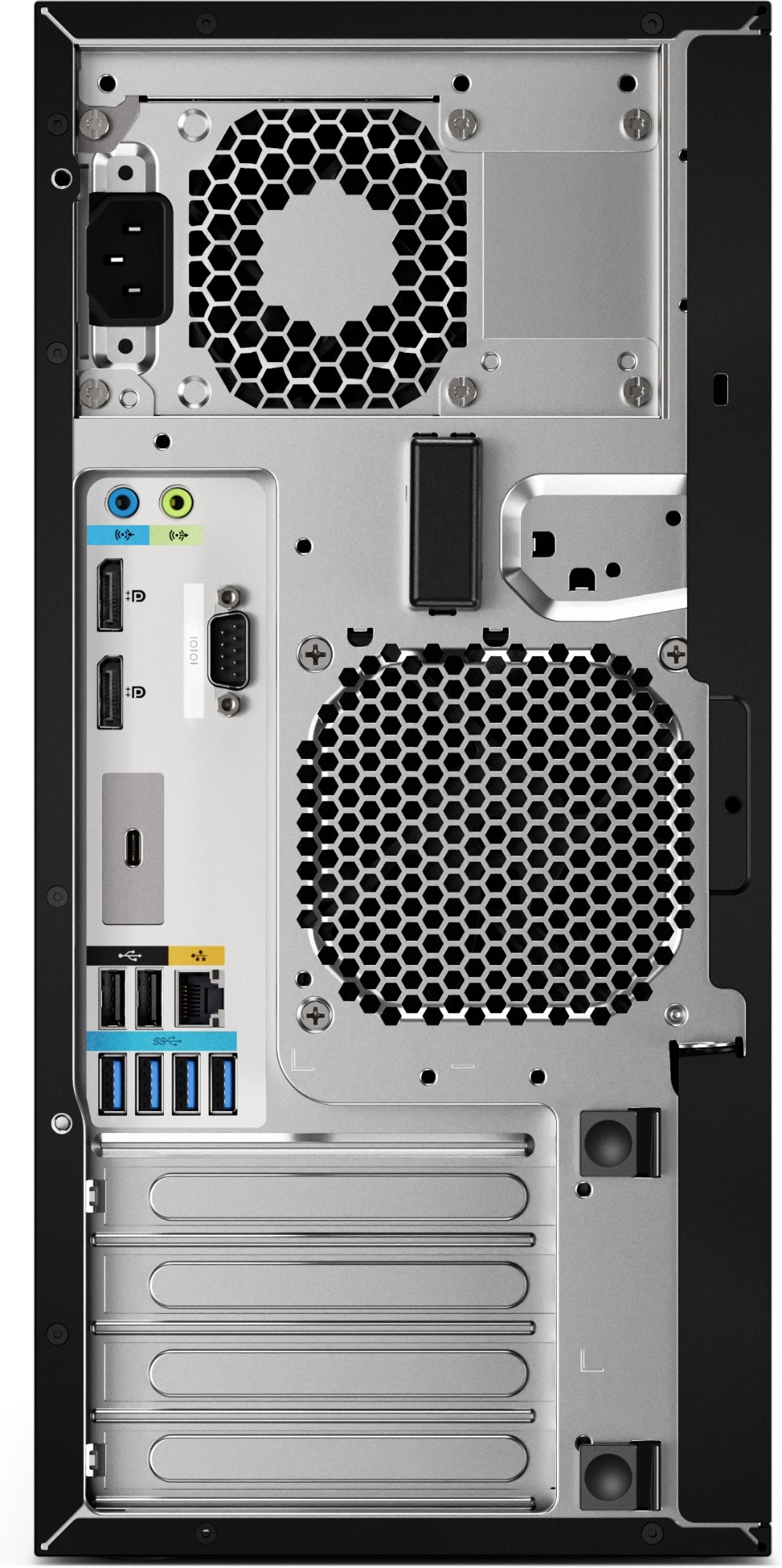

Ports & interfaces
Combo headphone/mic portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB 2.0 ports quantity2
Microphone inNo
Line-outYes
Line-inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DVI portNo
DisplayPorts quantity2
DisplayPort version1.2
Expansion slots
PCI Express x1 (Gen 3.x) slots2
PCI Express x4 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots1
PCI Express slots version3.0
Technical details
Intel 64Yes
Product typeWorkstation
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Product colourBlack
Chassis typeTower
Placement supportedVertical
Number of 5.25" bays2
Number of 3.5" bays2
Motherboard chipsetIntel C246
Design
Product colourBlack
Chassis typeTower
Placement supportedVertical
Number of 5.25" bays2
Number of 3.5" bays2
Country of originChina
Performance
Embedded options availableYes
Audio chipConexant CX20632-31Z
Market positioningBusiness
Product typeWorkstation
Motherboard chipsetIntel C246
Software
Operating system architecture64-bit
Operating system installedWindows 10 Pro
Processor special features
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® OS GuardYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel Stable Image Platform Program (SIPP)Yes
Intel® Secure KeyYes
Intel® InTru™ 3D TechnologyYes
Intel Clear Video TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Idle StatesYes
Execute Disable BitYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Enhanced Halt StateYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Thermal solution specificationPCG 2015C
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Scalability1S
Processor package size37.5 x 37.5 mm
Processor codeSR3QS
Intel Virtualization Technology for Directed I/O (VT-d)Yes
CPU configuration (max)1
Intel Virtualization Technology (VT-x)Yes
Intel TSX-NI version1.00
Intel Stable Image Platform Program (SIPP) version1.00
Intel Secure Key Technology version1.00
Intel Identity Protection Technology version1.00
Conflict-Free processorYes
Processor ARK ID126686
Intel® Optane™ Memory ReadyYes
Intel 64Yes
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Brand-specific features
HP Security toolsHP BIOSphere Gen4; HP Business PC Security Lock Kit; HP Client Security Suite Gen 4; HP Keyed Cable Lock Kit; HP Solenoid Hood Lock + Sensor; HP Sure Click; HP Sure Run; HP Sure Start Gen 4; HP UltraSlim Cable Lock Kit
HP segmentBusiness
Weight & dimensions
Width356 mm
Depth435 mm
Height169 mm
Weight7 kg
Packaging content
Mouse includedYes
Display includedNo
Keyboard includedYes
Features
Country of originChina
Other features
On-board graphics cardYes
Processor manufacturerIntel
Country of originChina
