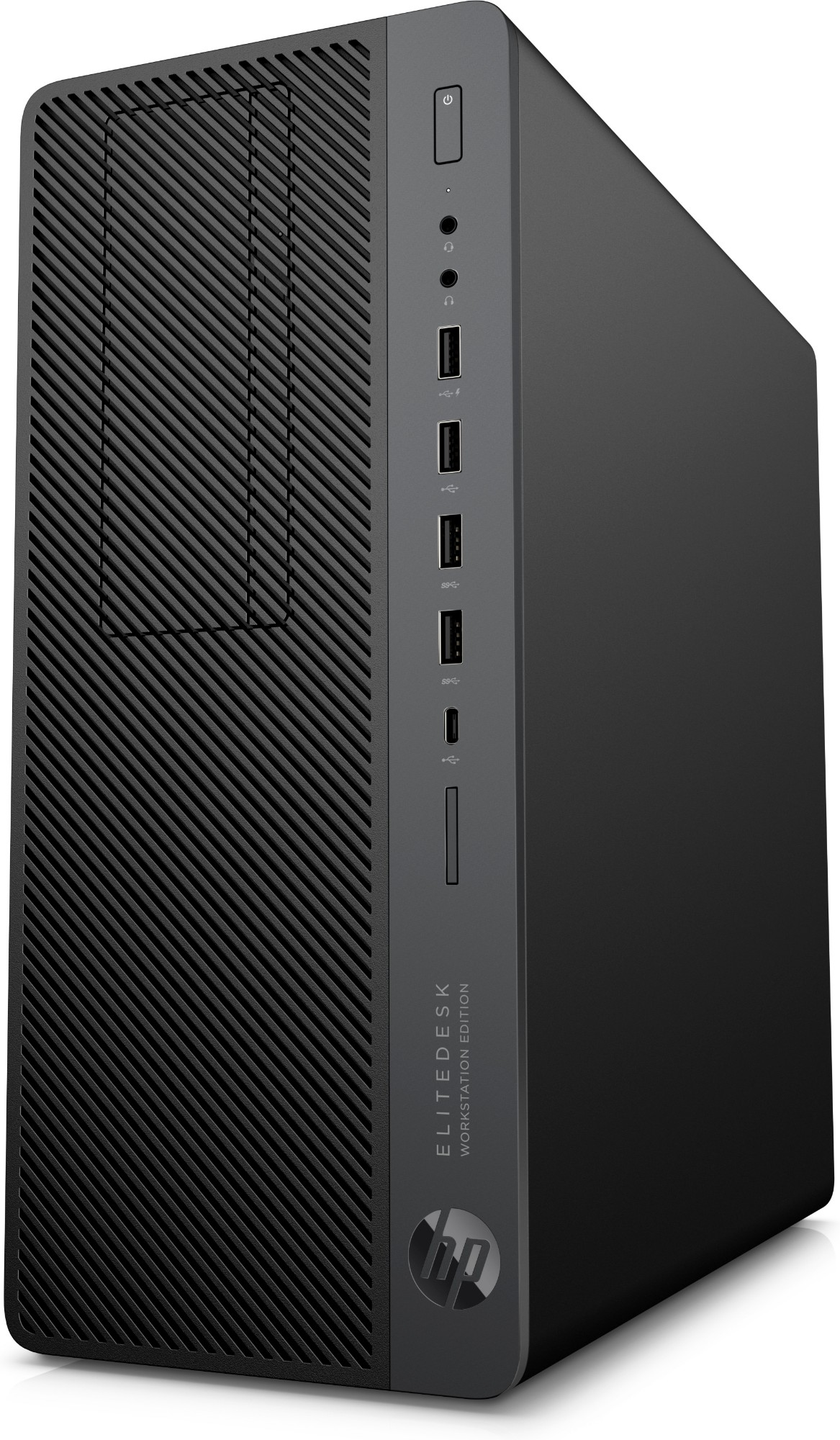

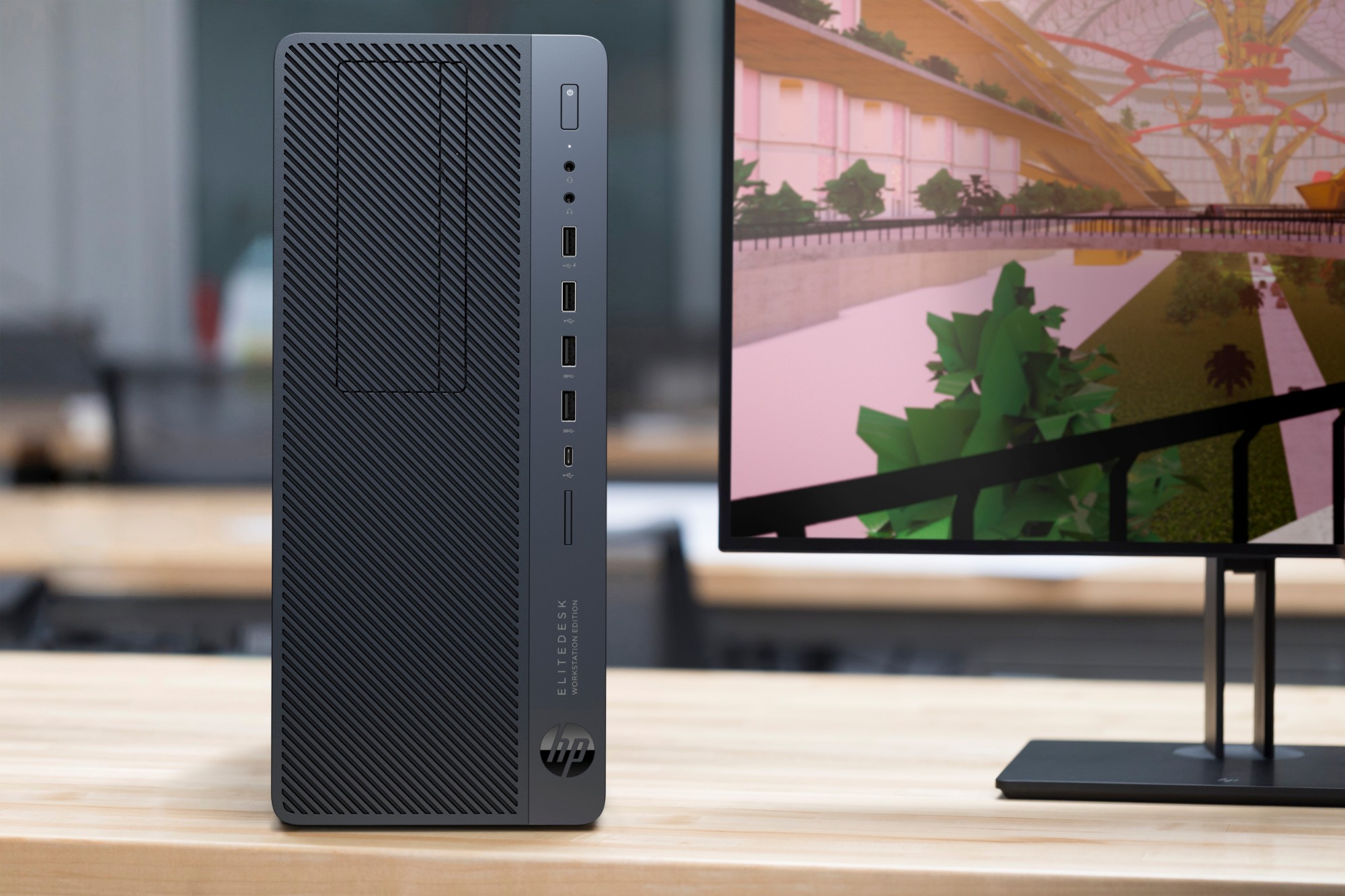

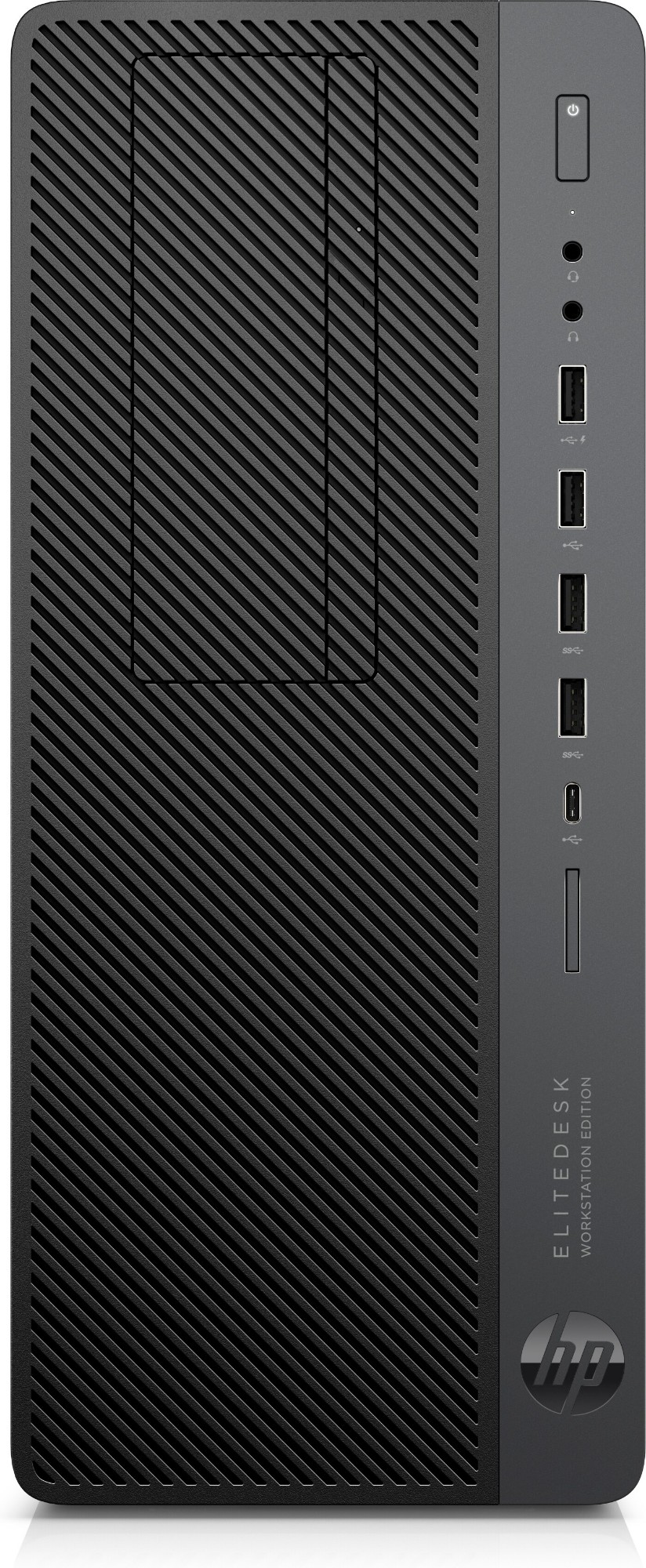

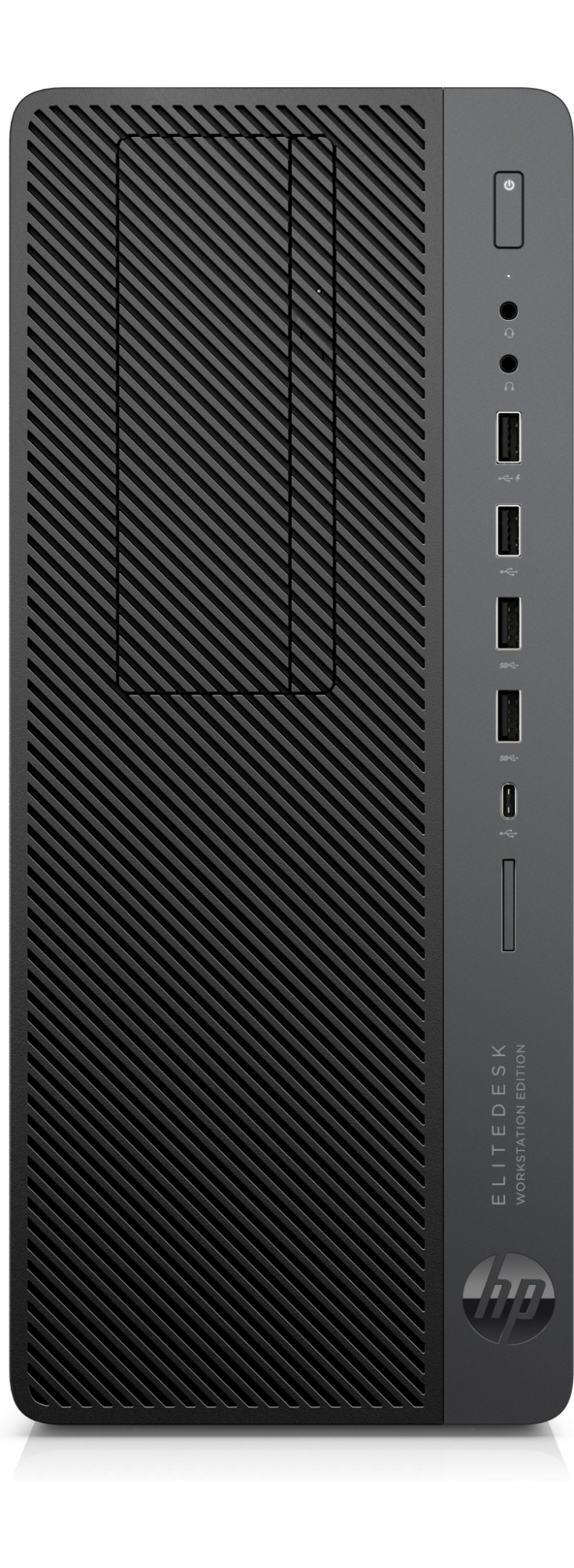

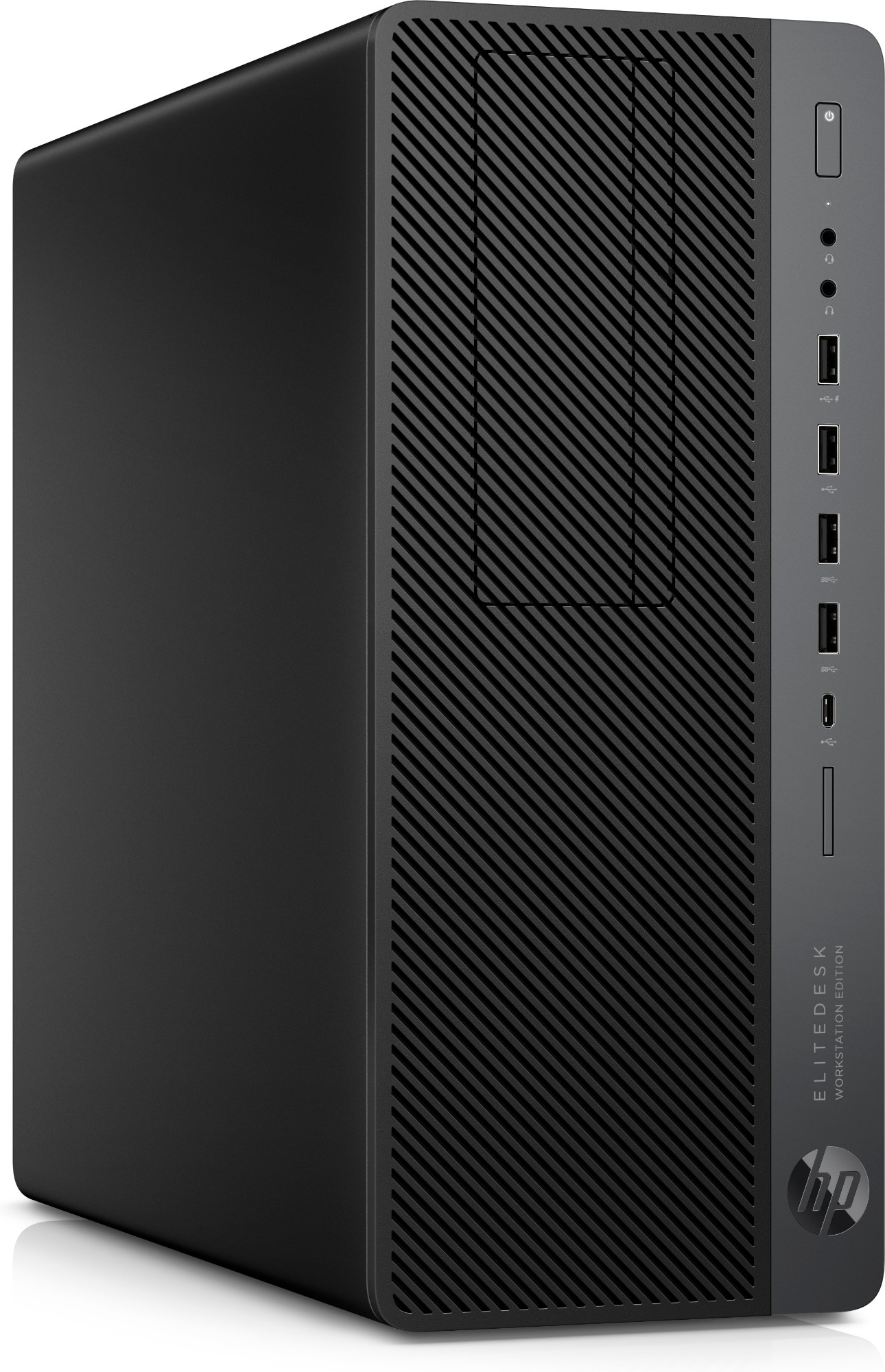

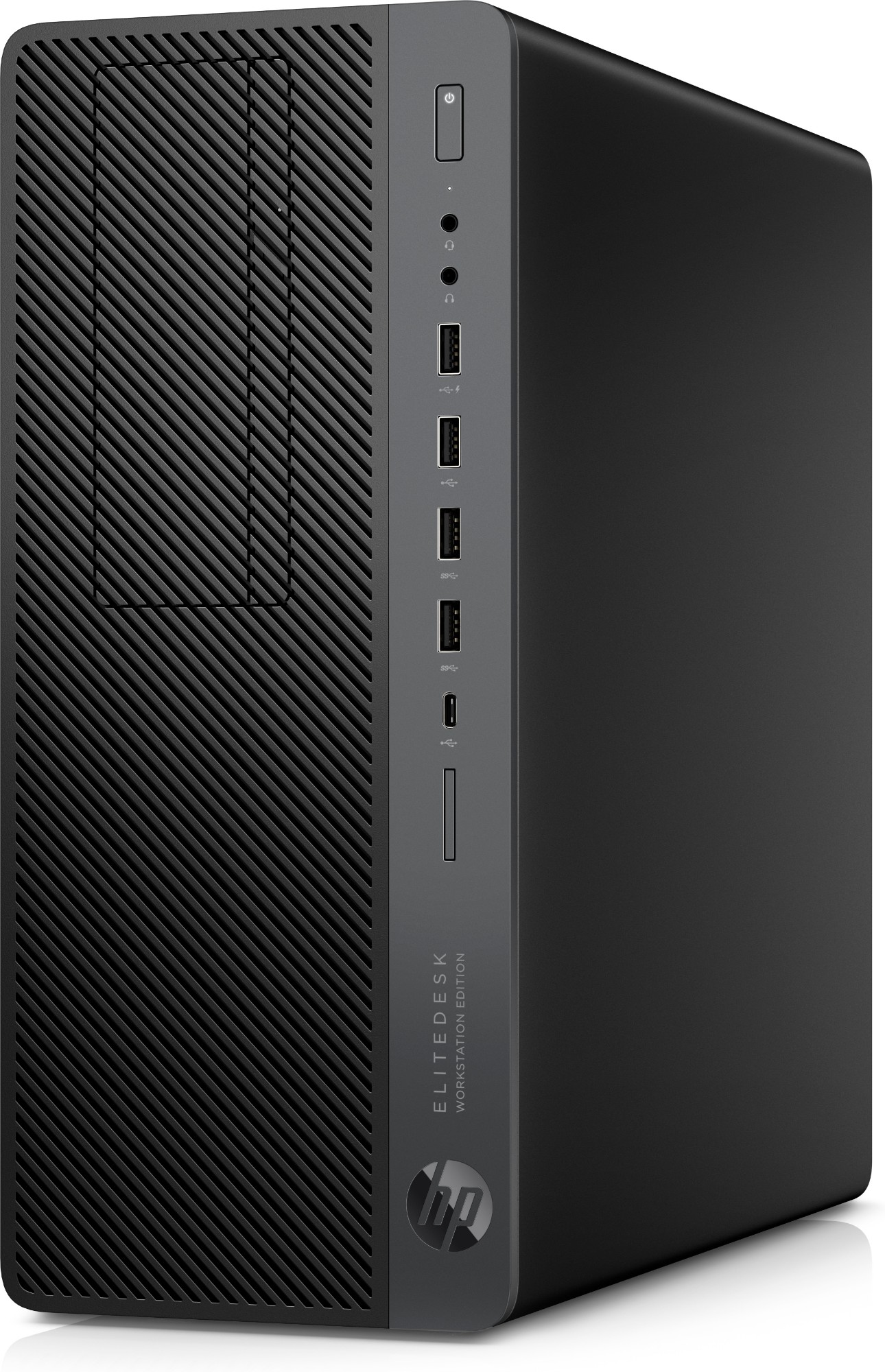

HP EliteDesk 800 G4 Intel® Core™ i7 i7-8700K 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2080 Windows 10 Pro Tower Workstation Black

HP EliteDesk 800 G4 Intel® Core™ i7 i7-8700K 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® GeForce RTX™ 2080 Windows 10 Pro Tower Workstation Black

  • Brand: HP
  • Category:
  • SKU: 6TS95EA#ABU
  • EAN: 0193905659722 0193905659777 01 ...5659777 0193905659784 0193905659371 0193905659456 0193905659647 0193905659760 0193905659432 0193905659418 0193905659340 0193905659579 0193905659746 0193905659548 0193905659661 0193905659517 0193905659715 0193905659609 0193905659296 0193905659210 0193905659319 0193905659272 0193905659470more
Intel Core i7-8700K (12MB Cache, 3.7GHz), 32GB DDR4-SDRAM, 1000GB SSD, DVD-ROM, Intel UHD Graphics 630, NVIDIA GeForce RTX 2080 (8GB GDDR6), LAN, Windows 10 Pro 64-bit

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast/Data Select HP 800G4ED TWR I78700K 32GB/1TB PC 6TS95EA#ABU Register free see stock
Memory Bank HP 800G4ED TWR I78700K 32GB/1TB PC CL6TS95EA#ABU

Related Products

Reasons To Buy

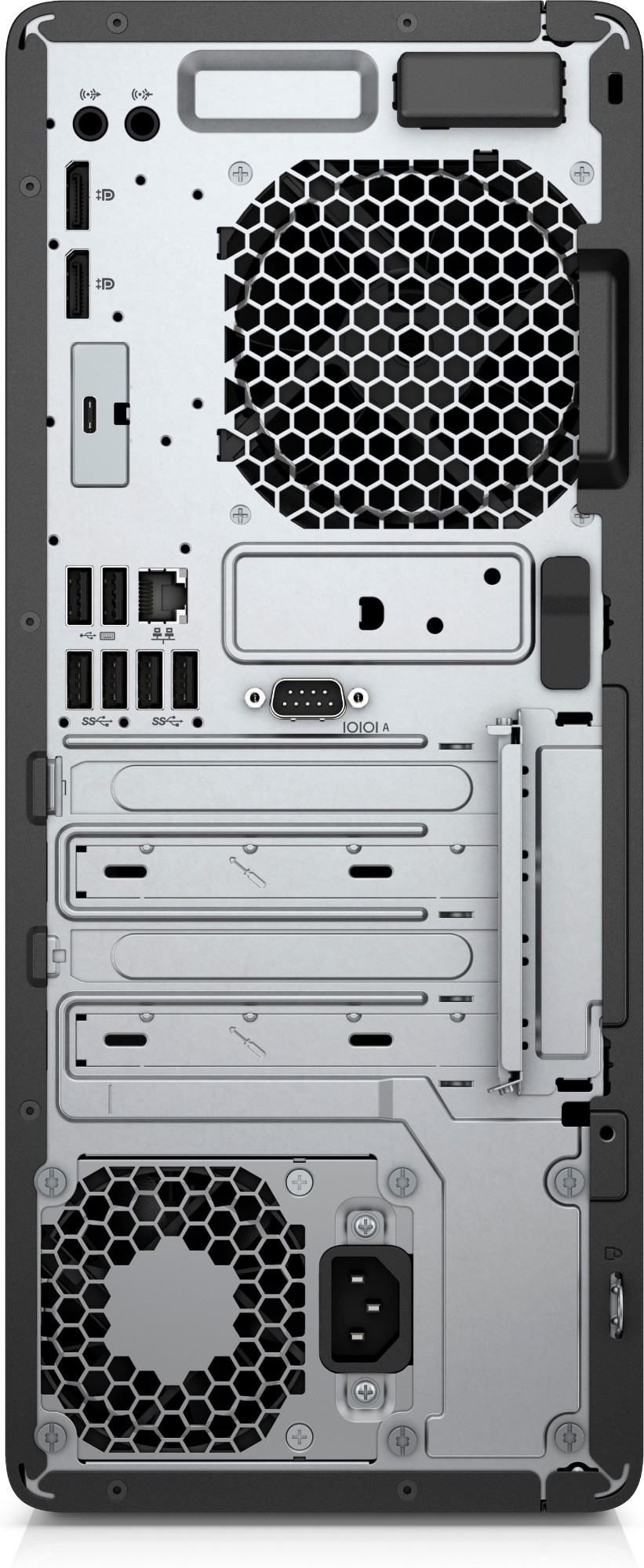

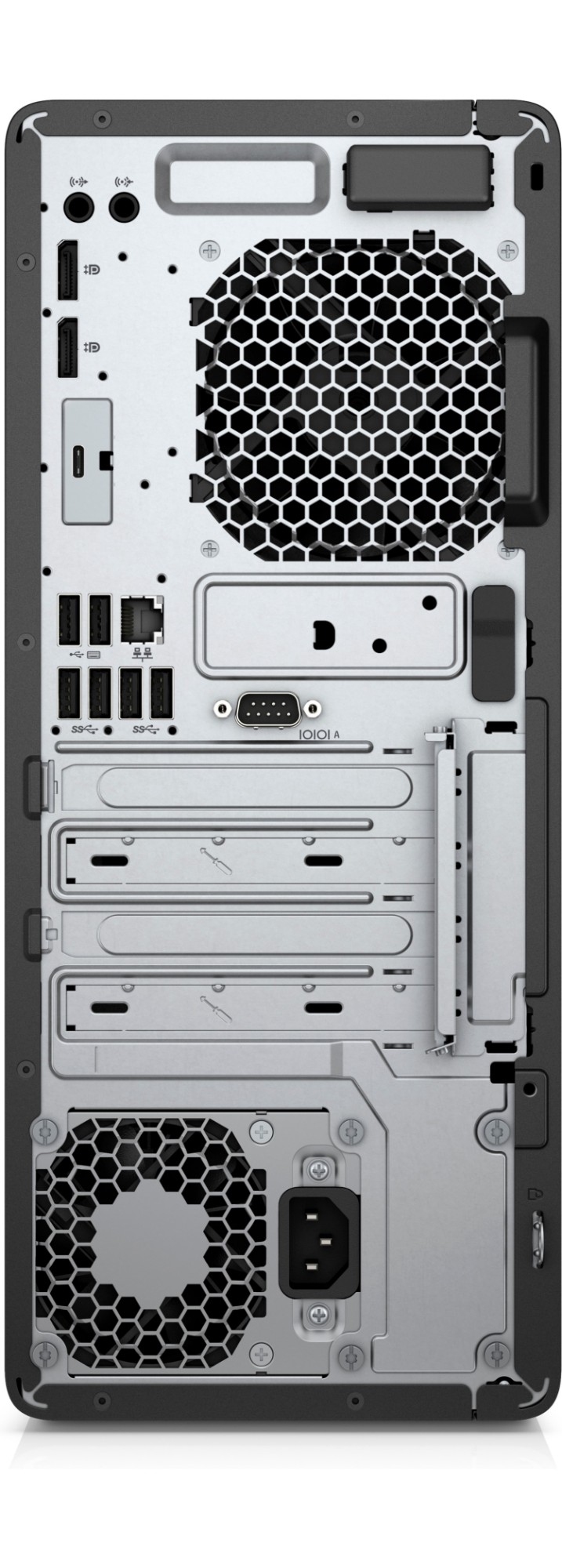

Configurable Ports

Configure a third configurable rear I/O port for customizable display connections with your choice of VGA, DisplayPort™, HDMI or USB-Type C™ with DisplayPort™.

NVIDIA® GeForce® GTX 1080 Graphics

Amp up your VR experience with fast, smooth performance.

Step up to workstation performance

Take performance up a notch with plenty of configurations and expandability. With NVIDIA GeForce® & Quadro® options, you can pick the perfect GPU for the job. <sup>[1]</sup> Plus, multiple expansion slots provide plenty of room to accommodate your evolving needs.

Software certified

Work with confidence knowing your desktop is certified for your most critical applications. We’ve worked closely with leading software providers like Autodesk and SolidWorks to help ensure seamless and reliable performance at every stage of your workflow.

HP's most secure and manageable workstations

Get powerful protection from evolving malware threats with self-healing, hardware-enforced security solutions like HP Sure Start Gen4 <sup>[2]</sup> which protects against BIOS attacks. Plus, easily manage multiple devices with the HP Manageability Integration Kit Gen2 <sup>[3]</sup>.

Operating System

Be productive in any situation. Windows 10 Pro and powerful security, collaboration, and connectivity features from HP help you power through your day.<sup>[4]</sup>

Professional Graphics

Create complex 2D designs and 3D models with optional certified NVIDIA Quadro® P400 and P620 graphics powered by 2 GB of ultra-fast GPU memory.<sup>[5]</sup>

Superb BIOS protection

Protect the firmware that antivirus can’t reach! The hardware-enforced self-healing protection offered by HP Sure Start Gen4 automatically recovers the BIOS from malware, rootkits, or corruption.<sup>[6]</sup>

HP Sure Run

Keep your critical applications and processes running even if malware tries to shut them down with self-healing protection with HP Sure Run.<sup>[7]</sup>

HP Sure Recover

HP Sure Recover <sup>[8]</sup> enables you to quickly and securely restore your PC to the latest image using only a network connection.

The HP Manageability Integration Kit Gen2

The HP Manageability Integration Kit Gen2 helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.<sup>[9]</sup>

Description

HP's most affordable professional certified desktop
Workstation-class performance is within reach with a desktop certified for professional software. From 2D/3D CAD design to VR content creation, the HP EliteDesk 800 Workstation Edition is the perfect gateway to elite-level power.

Specifications

Processor
Processor generation8th gen Intel® Core™ i7
Processor lithography14 nm
Processor codenameCoffee Lake
Bus typeDMI3
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Tjunction100 °C
Thermal Design Power (TDP)95 W
Processor seriesIntel Core i7-8700 Desktop Series
PCI Express configurations1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes16
Memory bandwidth supported by processor (max)41.6 GB/s
Processor cache typeSmart Cache
Conflict-Free processorYes
Processor cache12 MB
Processor frequency3.7 GHz
Processor modeli7-8700K
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency4.7 GHz
System bus rate8 GT/s
Processor threads12
Processor cores6
PCI Express slots version3.0
Processor familyIntel® Core™ i7
Memory
Non-ECCYes
ECCNo
Memory layout (slots x size)2 x 16 GB
Internal memory32 GB
Maximum internal memory128 GB
Memory slots4x DIMM
Internal memory typeDDR4-SDRAM
Memory clock speed2666 MHz
Memory channelsDual-channel
Storage
Storage mediaSSD
Optical drive typeDVD-ROM
SSD interfaceNVMe
SSD capacity1000 GB
Number of SSDs installed1
Card reader integratedYes
Compatible memory cardsSD
Total storage capacity1000 GB
SSD memory typeTLC
SSD form factorM.2
Total SSDs capacity1000 GB
NVMeYes
Graphics
Discrete graphics cardYes
Discrete graphics card memory8 GB
On-board graphics card dynamic frequency (max)1200 MHz
On-board graphics card base frequency350 MHz
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card OpenGL version4.5
On-board graphics card DirectX version12.0
Number of execution units24
On-board graphics card ID0x3E92
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNVIDIA® GeForce RTX™ 2080
Discrete graphics memory typeGDDR6
On-board graphics card modelIntel® UHD Graphics 630
Discrete GPU manufacturerNVIDIA
Optical drive
Optical drive typeDVD-ROM
Network
Ethernet LANYes
Wi-FiNo
Ethernet LAN data rates10,100,1000 Mbit/s
Ports & interfaces
Combo headphone/mic portYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 2.0 ports quantity4
Microphone inNo
Line-outYes
Line-inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DVI portNo
Expansion slots
PCI Express slots version3.0
Technical details
Intel 64Yes
Product typeWorkstation
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Product colourBlack
Chassis typeTower
Cable lock slotYes
Motherboard chipsetIntel Q370
Graphics card interfacePCIe x16
Design
Product colourBlack
Chassis typeTower
Cable lock slotYes
Country of originChina
Performance
Embedded options availableNo
Audio chipConexant CX20632
Market positioningBusiness
Password protectionYes
Product typeWorkstation
Motherboard chipsetIntel Q370
Software
Operating system architecture64-bit
Operating system installedWindows 10 Pro
Processor special features
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® OS GuardYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel Stable Image Platform Program (SIPP)Yes
Intel® Secure KeyYes
Intel® InTru™ 3D TechnologyYes
Intel Clear Video TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Idle StatesYes
Execute Disable BitYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Enhanced Halt StateYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Thermal solution specificationPCG 2015D
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Scalability1S
Processor package size37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)Yes
CPU configuration (max)1
Intel Virtualization Technology (VT-x)Yes
Intel TSX-NI version1.00
Intel Stable Image Platform Program (SIPP) version1.00
Intel Secure Key Technology version1.00
Intel Identity Protection Technology version1.00
Conflict-Free processorYes
Processor ARK ID126684
Intel 64Yes
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Brand-specific features
HP segmentBusiness
Weight & dimensions
Width154 mm
Depth370 mm
Height365 mm
Weight9.86 kg
Packaging content
Display includedNo
Features
Country of originChina
Other features
On-board graphics cardYes
Processor manufacturerIntel
Graphics card interfacePCIe x16
Country of originChina
