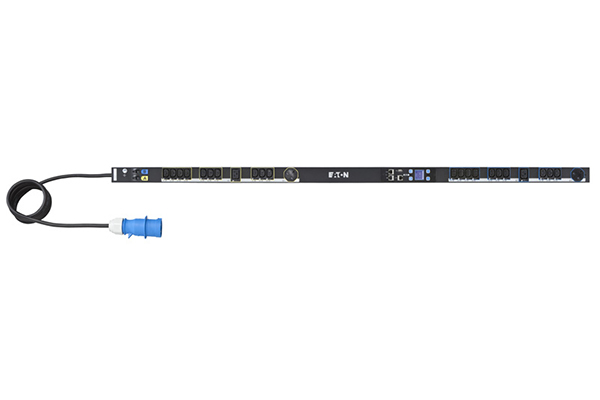

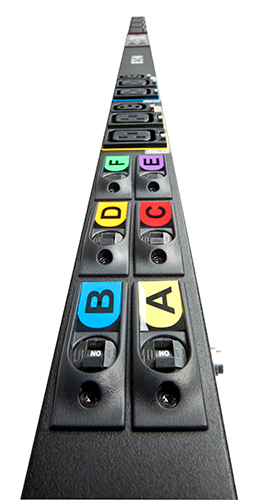

Eaton EMOB22 power distribution unit (PDU) 24 AC outlet(s) 0U Black
- Brand: Eaton
- Category:
- SKU: EMOB22
- EAN: 3553340698088
ePDU G3 Metered Outlet, C20 In, 20 x C13 & 4 x C19 Out, 0U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
C20 |
EMOB22 | |||
|
ePDU G3 Metered Outlet - strømfo |
509988 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EPDU MO 0U (C20 16A 1P)20XC13:4XC19 |
EMOB22 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | 4417 hours ago | £1,084.46 |
Description
Meter the Input, branch, individual outlets & IT equipment across A and B feed

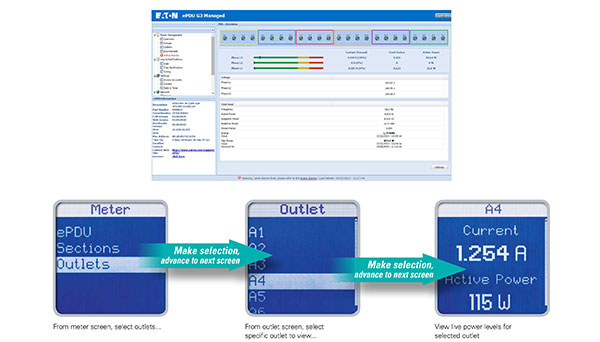

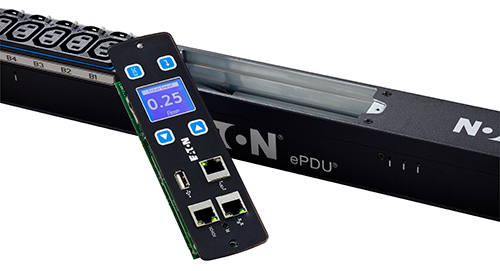

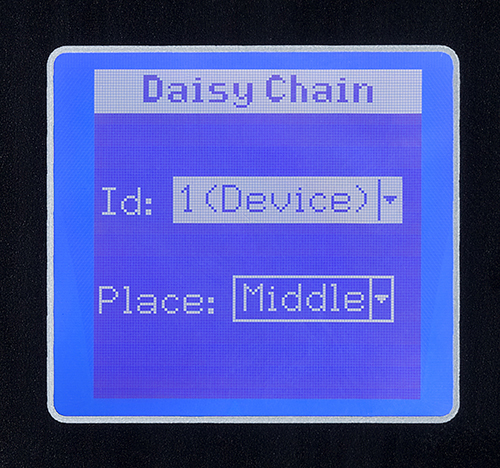

ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Metered |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010 EN 55024:2010 ISO 9001:2008 / ISO 14001:2004 |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Cable colour | Black |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| Output connections | 20 x C13 & 4 x C19 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010 EN 55024:2010 ISO 9001:2008 / ISO 14001:2004 |
| Management features | |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable via | Network, USB |
| Firmware upgradeable | Yes |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Maximum power | 3700 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 53 x 1604 x 52 mm |
| Weight | 2.1 kg |
| Width | 53 mm |
| Depth | 1604 mm |
| Height | 52 mm |
| Package weight | 4.3 kg |
| Packaging data | |
| Package weight | 4.3 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Compliance certificates | RoHS |
