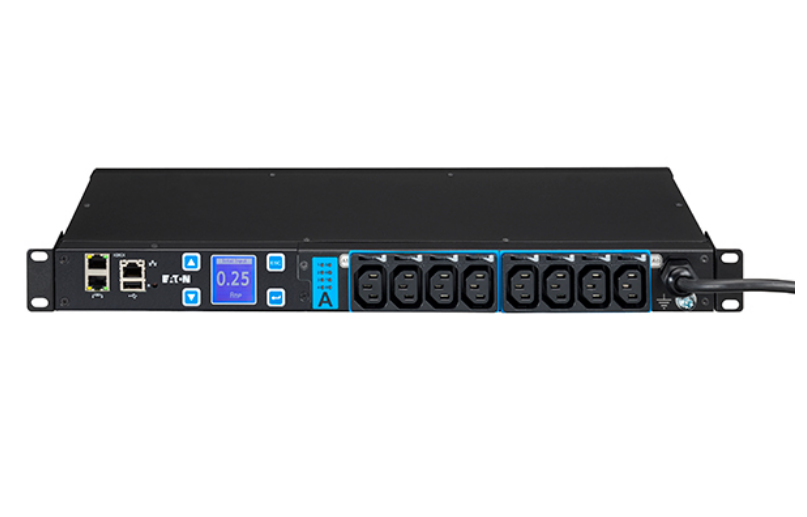

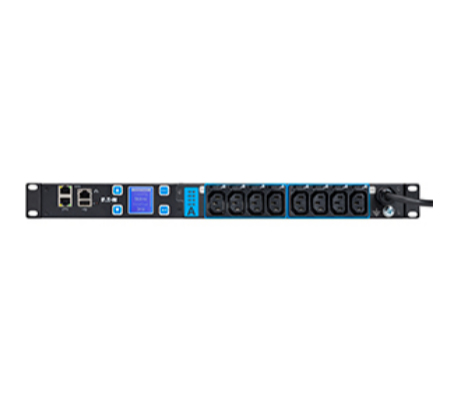

Eaton EMAH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black
- Brand: Eaton
- Category:
- SKU: EMAH28
- EAN: 3553340696206
ePDU G3 Managed, 8 x C13 Out, C20 In, 230V, 1U
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
EMAH28 |
EAT-EMAH28 | |||
|
EPDU MA 1U (C20 16A 1P)8XC13 View on Xvantage |
X770830 | |||
|
EPDU MA 1U (C20 16A 1P)8XC13 |
EAPDU071 | |||
|
ePDU G3 Managed - Power distribution unit (rack-mountable) - AC 230 V - 1-phase - Ethernet 10/100, RS-232 - input: IEC 60320 C20 - output connectors: 8 (power IEC 60320 C13) - 1U - 3 m cord View on InTouch |
4259708 | |||
|
EPDU MANAGED IEC - EMAH28 |
EMAH28 | |||
|
ePDU G3 Managed - strømfordeling |
300822 | |||
| Ingram Micro CS |
EPDU MA 1U (C20 16A 1P)8XC13 |
X770830 | |||
|
Eaton ePDU Managed 1U 8 xC13 |
STD10063811 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EPDU MA 1U (C20 16A 1P)8XC13 |
EMAH28 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,063.39 | ||
| Amazon | New | £569.99 | ||
| Amazon | New | £1,165.06 | ||
| Amazon | New | £837.29 | ||
| Amazon | New | £842.42 | ||
| Amazon | New | £1,063.39 | ||
| Amazon | New | £695.99 | ||
| Amazon | New | £837.29 | ||
| Amazon | New | £882.47 | ||
| Amazon | New | £1,154.46 | ||
| Amazon | New | £1,154.46 | ||
| Amazon | New | £695.99 | ||
| Amazon | New | £1,165.06 | ||
| Amazon | New | £882.47 | ||
| Amazon | New | £842.42 | ||
| Amazon | New | £569.99 |
Description
Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Managed |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Certification | CB, CE, EN 60950- 1:2006/A11:2009/A1:2010/A12:2011 EN 61000-6-2:2005 EN 50581 : 2012, REACH, WEEE ISO 9001:2008 / ISO 14001:2004 |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Cable colour | Black |
| Rack capacity | 1U |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Serial ports quantity | 1 |
| Output connections | 8 x C13 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Certification | CB, CE, EN 60950- 1:2006/A11:2009/A1:2010/A12:2011 EN 61000-6-2:2005 EN 50581 : 2012, REACH, WEEE ISO 9001:2008 / ISO 14001:2004 |
| Management features | |
| Supported network protocols | HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable via | Network, USB |
| Firmware upgradeable | Yes |
| Monitoring | Voltage |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Maximum power | 3700 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 445 x 203 x 43 mm |
| Weight | 3.4 kg |
| Width | 445 mm |
| Depth | 203 mm |
| Height | 43 mm |
| Package width | 375 mm |
| Package depth | 570 mm |
| Package height | 195 mm |
| Package weight | 5.8 kg |
| Packaging data | |
| Package width | 375 mm |
| Package depth | 570 mm |
| Package height | 195 mm |
| Package weight | 5.8 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Compliance certificates | RoHS |
