Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 12 fibers, CPR Dca, LSZH
- Brand: Digitus
- Category:
- SKU: DK-39121-U
- EAN: 4016032272199
FO A-I-DQ(ZN)BH 12E9/125µ, SM, OS2, 12 fibers Indoor/Outdoor, LSZH, Dca, black, length 1 m
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
FO A-I-DQ(ZN)BH 12E9/125�, SM, OS2, 12 fibers |
DK-39121-U |
Related Products
-
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables -
Category: InfiniBand & Fibre Optic Cables
Description
Future-oriented standards and high-end quality for your network.
- OS2 9/125µ

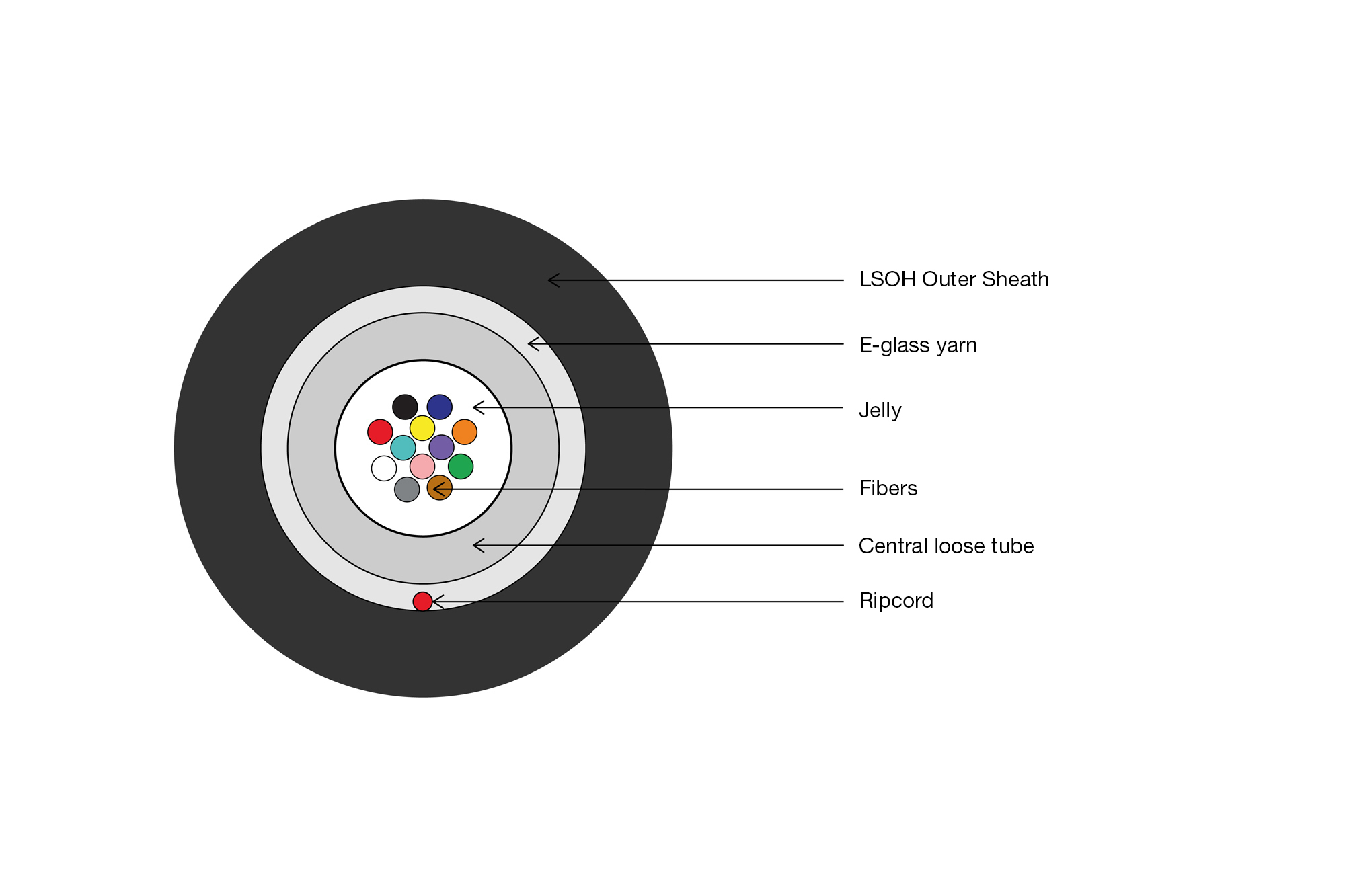

- Central loose tube 12 fibers
- Non-metallic rodent protection
- LSZH, CPR Dca
Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACh and RoHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cable's performance and durability in the field environments.
- OS2 9/125µ
- Central loose tube 12 fibers
- Non-metallic rodent protection
- LSZH, CPR Dca
Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACh and RoHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cable's performance and durability in the field environments.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | No |
| Connector 2 | No |
| Cable type | U-DQ(ZN) BH |
| Cable length | 1 m |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Number of optical fibres | 12 |
| Doesn't contain | Halogen |
| Features | |
| Fibre optic type | OS2 |
| Connector gender | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | No |
| Connector 2 | No |
| Cable type | U-DQ(ZN) BH |
| Cable length | 1 m |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85447000 |
| Product colour | Black |
| Connector 2 gender | No |
| Connector 1 gender | No |
| Weight & dimensions | |
| Package volume | 64 cm³ |
| Cable length | 1 m |
| Package width | 8 mm |
| Package depth | 1000 mm |
| Package weight | 59 g |
| Packaging data | |
| Package volume | 64 cm³ |
| Package width | 8 mm |
| Package depth | 1000 mm |
| Package weight | 59 g |
| Logistics data | |
| Harmonized System (HS) code | 85447000 |
| UK Trade Tariff code | 85447000 |
| Other features | |
| Number of optical fibres | 12 |
