DELL S-Series S4148T-ON Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
- Brand: DELL
- Category:
- SKU: 210-ALSM
- EAN: 5397184223123
Offer details
Related Products
Reasons To Buy

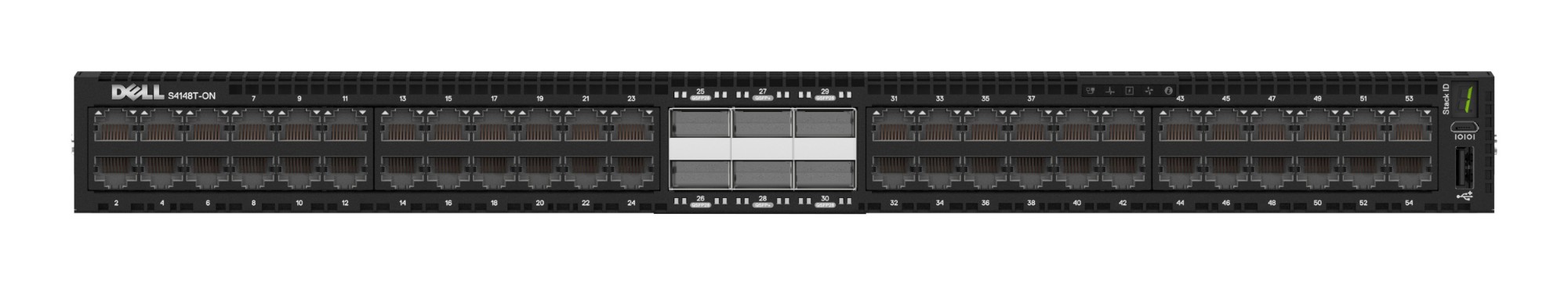

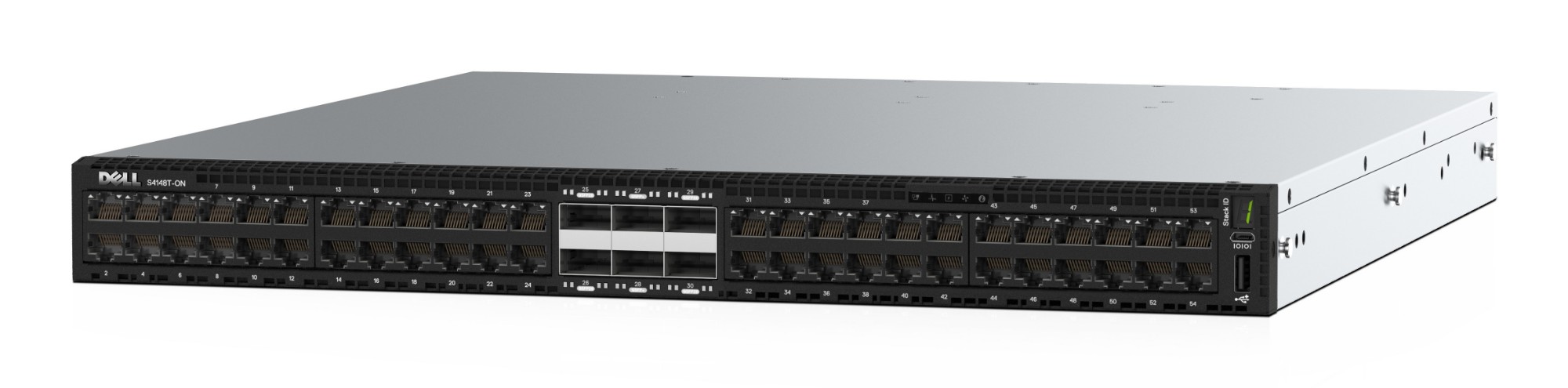

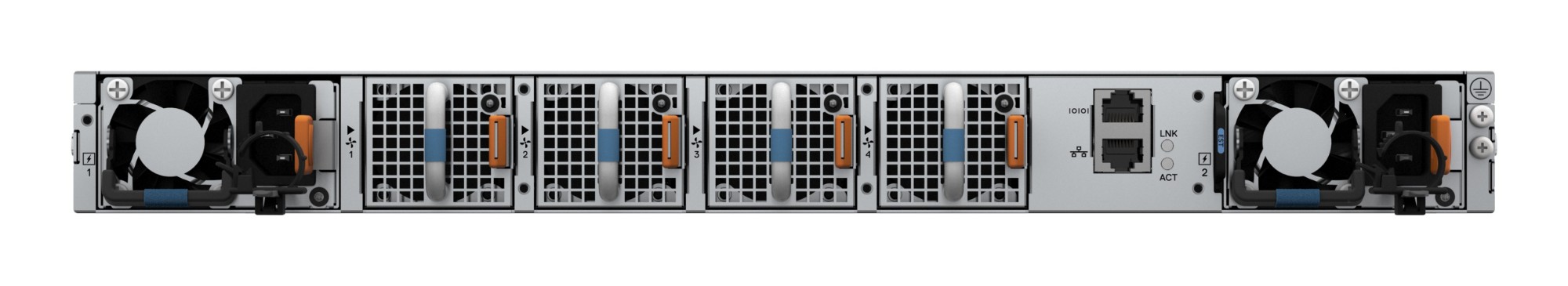

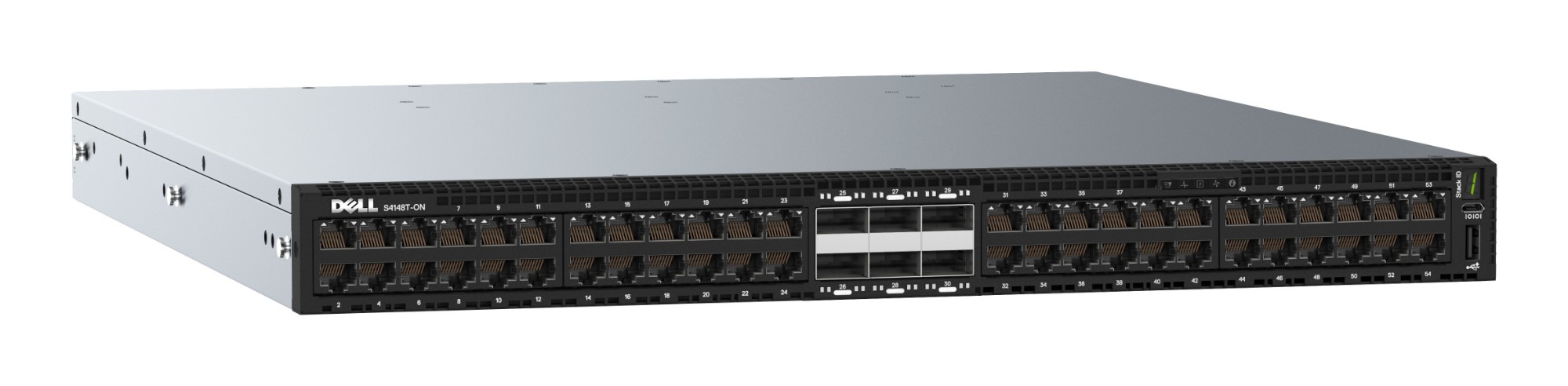

Dell EMC Networking S4148T-ON
Achieve maximum density and value for 10 GbE copper terminations to servers and storage devices with this ToR switch, which supports 48 x 10GBase-T ports, 2 x 40GbE QFSP+ ports, 4 x 100GbE QFSP28 ports, and ONIE for zero-touch installation of alternate network operating systems.
Developed for flexibility
The Dell EMC Networking S-Series 10/40GbE switches offer a family of products that enable you to find the ideal solution for your specific needs.<br><br>-Line-rate performance from 1/10G BASE-T to 40GbE and port densities from 28 to 48<br>-Efficient stacking offered in many S-Series models<br>-Industry-hardened and feature-rich operating system for maximum dependability and uptime with select third-party OS options<br>-Full support for iSCSI storage area networks, including DCB
Optimized for the open networking era
Get more agility, more choices and lower costs than proprietary networks with select, open-standards-based ON (open networking) switches.<br><br>-Disaggregated-hardware/software solutions bring new levels of freedom and flexibility to your data center.<br>-Support for Open Network Install Environment (ONIE) enables zero-touch installation of alternate network operating systems.<br>-Your choice of network operating system helps simplify data-center fabric orchestration and automation.<br>-A broad ecosystem of open-source and Linux-based applications and tools provides more options to optimize and manage your network.
Flexible, powerful 10GbE ToR switches for data centers of all sizes
Deploy modern workloads and applications designed for the open networking era with an optimized data center top-of-rack (ToR) networking solution that:<br><br>-Includes the 10GbE S4000-ON Series and S4100-ON Series switches,1/10G BASE-T S4048T-ON, S4128T-ON and S4148T-ON switches, and 10GbE S4148FE, S4248FB-ON, and S4248FLB-ON switch<br>-Delivers low latency, superb performance and high density with hardware and software redundancy<br>-Offers Active Fabric designs using S- or Z-Series core switches to create a two-tier 1/20/40/100GbE data center network architecture<br>-The S4148U-ON has Fibre Channel ports for connections to Storage Area Networks<br>-Provides an ideal solution for applications in high-performance data center and computing environments
Description
Designed for flexibility and high performance for today's demanding modern workloads and applications.
Specifications
Management features | |
---|---|
Multicast support | Yes |
Switch type | Managed |
Quality of Service (QoS) support | Yes |
Switch layer | L2/L3 |
Ports & interfaces | |
Copper ethernet cabling technology | 10GBASE-T |
Switching optical modules type | 100 Gigabit Ethernet |
QSFP+ module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
USB 2.0 ports quantity | 1 |
Fiber optic connector | QSFP28 |
Console port | RJ-45/micro-USB |
Power connector | AC-in jack |
Network | |
GARP VLAN Registration Protocol (GVRP) | Yes |
Copper ethernet cabling technology | 10GBASE-T |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Port mirroring | Yes |
Link aggregation | Yes |
10G support | Yes |
Address Resolution Protocol (ARP) entries (max) | 200000 |
Virtual LAN features | Tagged VLAN |
Virtual LAN features | |
VLAN support | Yes |
Virtual LAN features | Tagged VLAN |
Optical fiber | |
Fiber optic connector | QSFP28 |
Switching optical modules type | 100 Gigabit Ethernet |
Performance | |
Packet buffer memory | 12 MB |
Stackable | Yes |
Minimum system requirements | Linux Kernel 3.16 |
Internal memory | 4000 MB |
Compatible operating systems | Debian Linux version 8.4 |
List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
Built-in processor | Yes |
Harmonized System (HS) code | 85176990 |
Power | |
Power connector | AC-in jack |
Power consumption (max) | 440 W |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 320 W |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 2 |
Technical details | |
Form factor | 1U |
Product colour | Black |
Stackable | Yes |
Rack mounting | Yes |
Built-in processor | Yes |
List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
Data transmission | |
Throughput | 1320 Mpps |
Packet buffer memory | 12 MB |
MAC address table | 272000 entries |
Switching capacity | 1760 Gbit/s |
Security | |
Security algorithms | IPSec |
DHCP features | DHCP server, DHCP relay |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | CLI, SNMP, REST, API’s |
GARP VLAN Registration Protocol (GVRP) | Yes |
Memory | |
Packet buffer memory | 12 MB |
Internal memory | 4000 MB |
Design | |
Display type | LED |
Form factor | 1U |
Product colour | Black |
Stackable | Yes |
LED indicators | Yes |
Rack mounting | Yes |
Number of fans | 4 fan(s) |
Indication | |
LED indicators | Yes |
Mobile network | |
GARP VLAN Registration Protocol (GVRP) | Yes |
System requirements | |
Minimum system requirements | Linux Kernel 3.16 |
Compatible operating systems | Debian Linux version 8.4 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Operational conditions | |
Storage temperature (T-T) | -40 - 65 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 5 - 40 °C |
Operating relative humidity (H-H) | 5 - 85% |
Heat dissipation | 1500 BTU/h |
Weight & dimensions | |
Width | 431 mm |
Depth | 457 mm |
Height | 44 mm |
Weight | 10.2 kg |
Logistics data | |
Harmonized System (HS) code | 85176990 |
