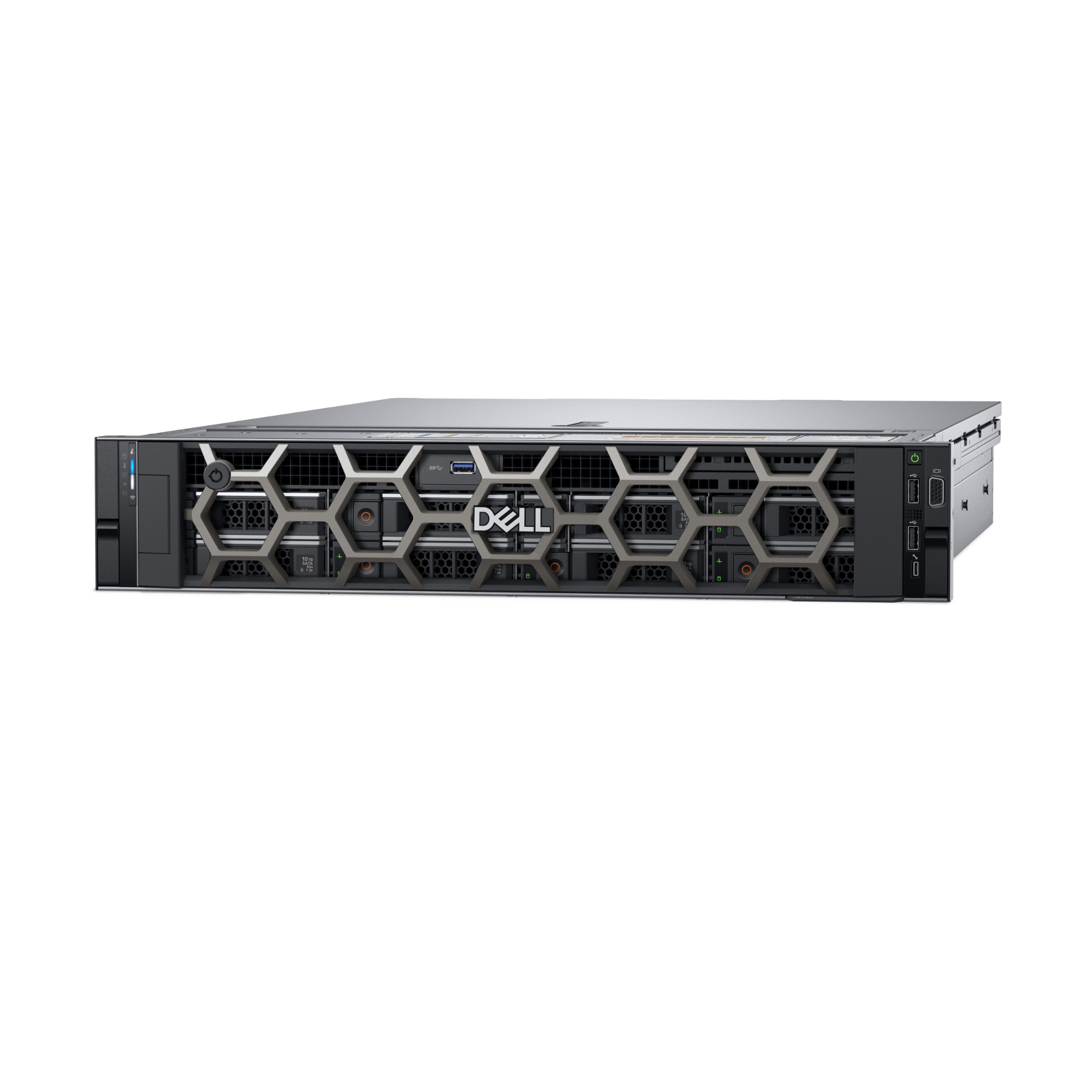

General-purpose workhorse optimized for workload acceleration
Maximize your application performance with the PowerEdge R740 server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With up to three 300W accelerator cards or six 150W cards, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The R740 offers up to 16 x 2.5” or 8 x 3.5” drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle.<br><br>Ideal workloads:<br><br>-VDI<br>-Private cloud<br>-Artificial intelligence<br>-Machine learning
Achieve IT transformation with the Dell EMC PowerEdge portfolio
The R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS).<br><br>-Simplify and accelerate VMware vSAN™ deployments with validated, pre-bundled and tailored Ready Nodes.<br>-Scale compute resources with Intel® Xeon® Scalable processors, delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors.<br>-Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.<br>-Free up storage space using internal M.2 SSDs optimized for boot.
Automate productivity with intelligent, embedded management
Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.<br><br>-Help maximize uptime and reduce the IT effort to resolve issues by up to 72% with ProSupport Plus and SupportAssist.<br>-Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®.<br>-Help improve productivity with agent-free Dell EMC iDRAC9 for automated, efficient management.<br>-Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers in rapid, scalable fashion.
Fortify your data center with comprehensive protection
Dell EMC provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data.<br><br>-Protect server configuration and firmware from malicious changes with new Configuration Lock-down.<br>-Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.<br>-Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.<br>-Take control of your firmware consoles with embedded authentication that is designed to allow only properly designed updates to run.
Description
Maximize application performance with the optimal mix of accelerator cards, storage and compute power in a 2U, 2-socket platform optimized for VDI.
Specifications
Processor | |
---|---|
Processor generation | 2nd Generation Intel® Xeon® Scalable |
Execute Disable Bit | Yes |
Embedded options available | Yes |
Processor cache | 13.75 MB |
Processor frequency | 2.2 GHz |
Processor boost frequency | 3.2 GHz |
Number of processors installed | 1 |
Processor model | 4210 |
Processor manufacturer | Intel |
Processor family | Intel Xeon Silver |
Memory | |
Internal memory | 32 GB |
Memory layout (slots x size) | 1 x 32 GB |
Memory slots | 24x DIMM |
Memory clock speed | 2400 MHz |
Maximum internal memory | 1.53 TB |
Internal memory type | DDR4-SDRAM |
Memory data transfer rate | 3200 MT/s |
Buffered memory type | Registered (buffered) |
Memory ranking | 2 |
Storage | |
Supported RAID controllers | PERC H750 |
Number of SSDs supported | 8 |
Total storage capacity | 480 GB |
SSD interface | SATA |
SSD capacity | 480 GB |
Optical drive type | No |
Number of SSDs installed | 1 |
Hot-Plug support | Yes |
SSD size | 2.5" |
Drive writes per day (DWPD) | 1 |
Supported SSD sizes | 2.5" |
Network | |
LAN controller | Broadcom 5720 |
Ethernet LAN | Yes |
Ethernet interface type | Gigabit Ethernet |
Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
VGA (D-Sub) ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Serial ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 4 |
Power cables quantity | 1 |
Expansion slots | |
PCI Express x8 slots | 4 |
Optical drive | |
Optical drive type | No |
Design | |
Rack rails | Yes |
Rack mounting | Yes |
Optical drive type | No |
Chassis type | Rack (2U) |
Product colour | Black |
Bezel | Yes |
Performance | |
Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Remote administration | iDRAC9 Enterprise |
Operating system installed | No |
Software | |
Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Operating system installed | No |
Processor special features | |
Enhanced Intel SpeedStep Technology | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel TSX-NI | Yes |
Intel Trusted Execution Technology | Yes |
Intel 64 | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Power | |
Number of main power supplies | 1 |
Number of redundant power supplies supported | 2 |
Redundant power supply (RPS) support | Yes |
Power supply | 750 W |
Power cable length | 2 m |
Power cable connector 1 | C13 coupler |
Power cable connector 2 | C14 coupler |
Power cable current | 10 A |
Technical details | |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Rack rails | Yes |
Rack mounting | Yes |
Hot-Plug support | Yes |
Ethernet interface type | Gigabit Ethernet |
Chassis type | Rack (2U) |
Management features | |
Remote administration | iDRAC9 Enterprise |
Weight & dimensions | |
Height | 86.8 mm |
Other features | |
Data transfer rate | 6 Gbit/s |
Bytes per sector | 512 |
