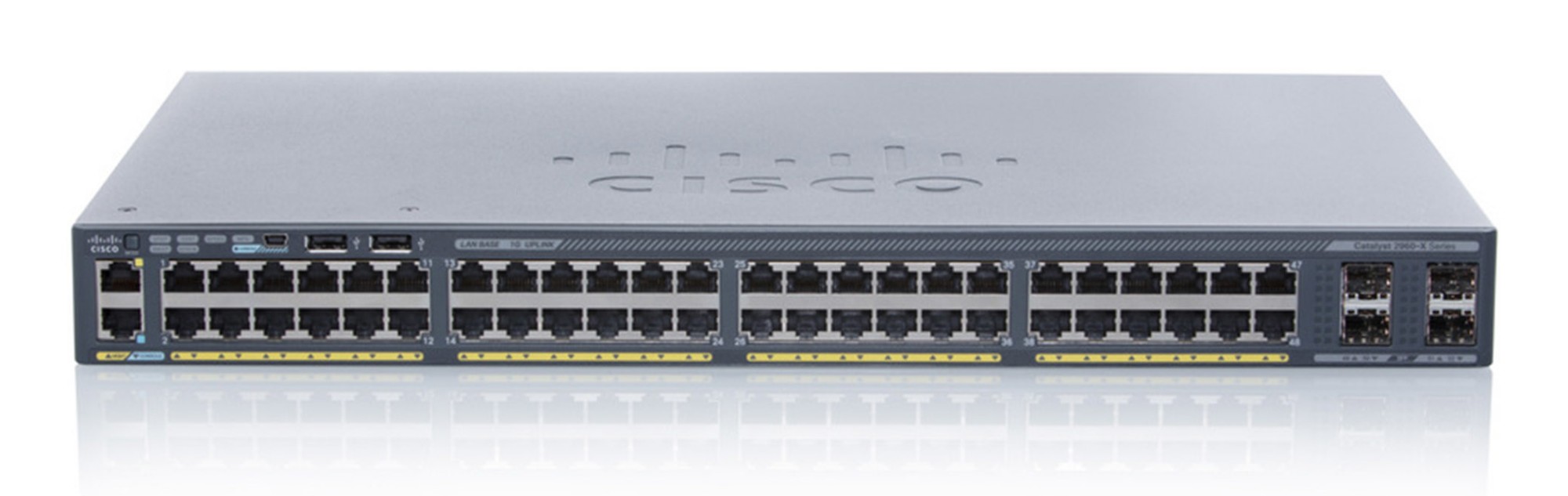

Cisco Catalyst 2960X-48FPD-L Network Switch, 24 Gigabit Ethernet Ports, 740W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-48FPD-L)
- Brand: Cisco
- Category:
- SKU: WS-C2960X-48FPD-L
- EAN: 0882658554438 4053162357266 07 ...2357266 0790145118820 8826585544386more
Catalyst 2960X-48FPD-L Network Switch, 24 Gigabit Ethernet Ports, 740W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-48FPD-L)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
- Catalyst 2960X-48FPD-L - Switch - verwaltet - 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ - Desktop an Rack montierbar - PoE+ (740 W) | WS-C2960X-48FPD-L | |||
|
Catalyst 2960-X 48 Gige | WS-C2960X-48FPD-L | |||
|
40GBASE-CR4 PASSIVE COPPER. | 677W968 | |||
|
NWork 2960-X 48 GigE PoE 740W 2 x 10G SFP+ LAN Base - New | WS-C2960X-48FPD-L |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | Used | £2,142.00 | ||
| Amazon | New | £5,376.88 | ||
| Amazon | Used | £1,500.00 | ||
| Amazon | New | £4,196.00 | ||
| Amazon | Used | £1,645.19 | ||
| Amazon | New | £4,404.94 |
Related Products
-
Category: Networking Cables -
Category: Networking Cables -
Category: Networking Cables
-
Category: Network Switches -
Category: Network Switches -
Category: Network Switches -
Category: Network Switches -
Category: Network Switches -
Category: Network Switches -
Category: Network Switches -
Category: Network Switches -
Category: Network Switches
Description
The Cisco Catalyst 2960X-48FPD-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Number of VLANs | 1023 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 1023 |
| Data transmission | |
| Number of VLANs | 1023 |
| Throughput | 130.9 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Stackable | Yes |
| Processor frequency | 600 MHz |
| Noise level | 39 dB |
| Memory type | DRAM |
| Mean time between failures (MTBF) | 233370 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Processor model | AppliedMicro APM8639 |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 600 MHz |
| Noise level | 39 dB |
| Mean time between failures (MTBF) | 233370 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Memory | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Country of origin | China |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Market segment | Business |
| Indication | |
| Power LED | Yes |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | WS-C2960X-48FPD-L Switch, Accessory Kit, 1 printed document |
| Power | |
| Power plug type | Type C |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 66 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width | 445 mm |
| Depth | 368 mm |
| Height | 45 mm |
| Weight | 5.8 kg |
| Packaging data | |
| Package width | 469.9 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 7.57 kg |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Power LED | Yes |
| Packaging content | WS-C2960X-48FPD-L Switch, Accessory Kit, 1 printed document |
| Country of origin | China |
