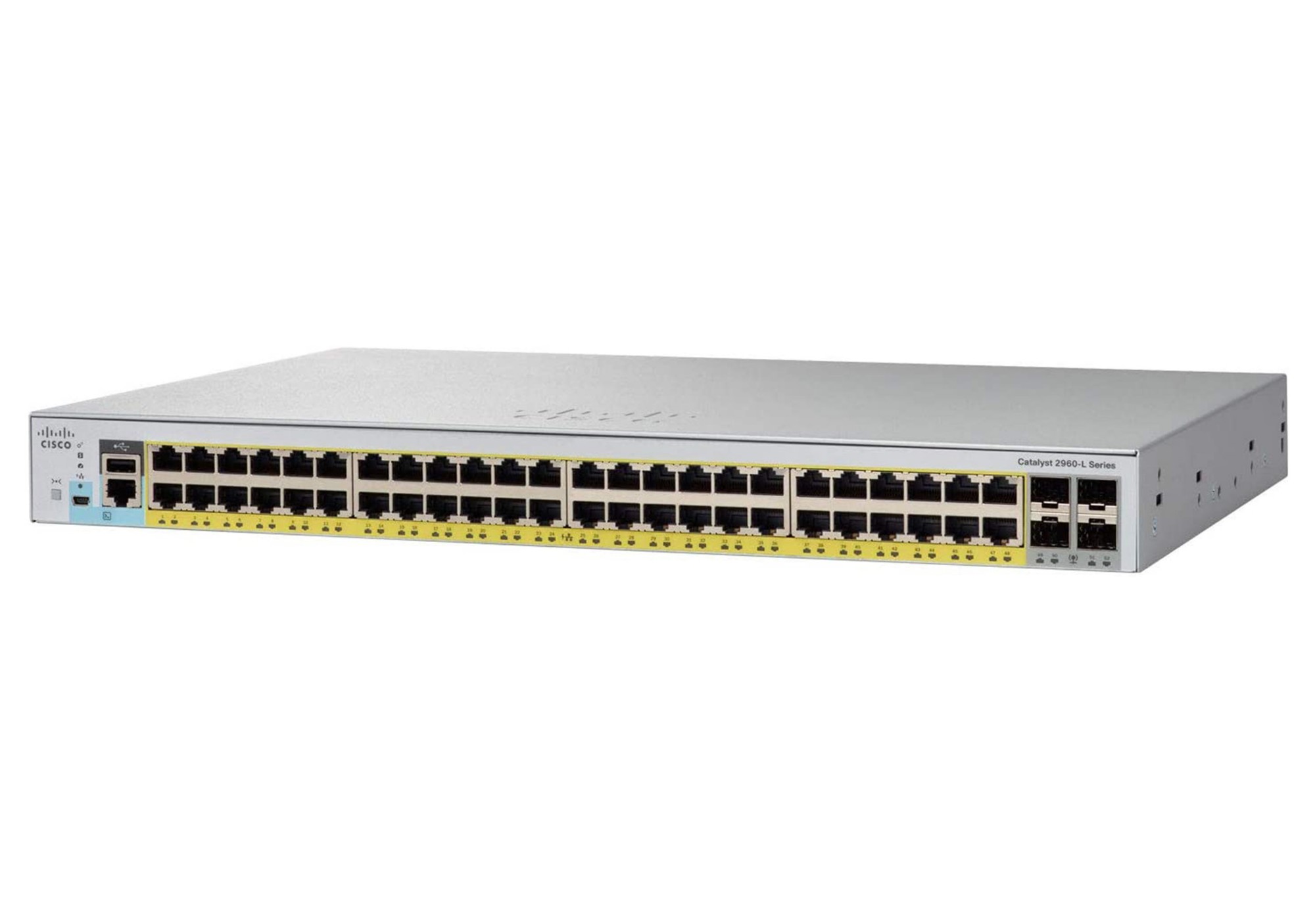

Cisco Catalyst 2960L-SM-48TS Network Switch, 48 Gigabit Ethernet Ports, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (WS-C2960L-SM-48TS)

Cisco Catalyst 2960L-SM-48TS Network Switch, 48 Gigabit Ethernet Ports, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (WS-C2960L-SM-48TS)

  • Brand: Cisco
  • Category:
  • SKU: WS-C2960L-SM-48TS
  • EAN: 0889728197144
Catalyst 2960L-SM-48TS Network Switch, 48 Gigabit Ethernet Ports, four 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (WS-C2960L-SM-48TS)

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK Catalyst 2960L-SM-48TS - Switch - L3 - smart - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ - rack-mountable 5075552 Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £1,014.30

Related Products

Description

The Cisco Catalyst 2960L-SM-48TS Network Switch is an enterprise-class, fixed Gigabit Ethernet switch designed for small and medium-sized businesses. This secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and supports simple device management using only a simple yet powerful web UI.

Specifications

Management features
Multicast supportYes
ARP inspectionYes
Switch typeManaged
Quality of Service (QoS) supportYes
MIB supportYes
Switch layerL2
Ports & interfaces
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45
Network
IGMP snoopingYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Networking standardsIEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Number of VLANs4094
Broadcast storm controlYes
Auto MDI/MDI-XYes
Virtual LAN featuresPrivate VLAN
Virtual LAN features
VLAN supportYes
Number of VLANs4094
Virtual LAN featuresPrivate VLAN
Data transmission
Number of VLANs4094
MAC address table16000 entries
Switching capacity104 Gbit/s
Jumbo frames supportYes
Technical details
Form factor1U
Product colourGrey
Processor frequency800 MHz
Mean time between failures (MTBF)1370769 h
Rack mountingYes
Built-in processorYes
Products per shipping (inner) case1 pc(s)
Security
SSH/SSL supportYes
Security algorithmsSNMP, SSH
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP server, DHCP client
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv3, Telnet, RMON
Certificates
SafetyUL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
Electromagnetic compatibility47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
Memory
Internal memory512 MB
Flash memory256 MB
Design
Country of originChina
SafetyUL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
Form factor1U
Product colourGrey
LED indicatorsActivity, Link, PoE, Speed, System
Electromagnetic compatibility47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
Rack mountingYes
Market segmentBusiness
Performance
Processor frequency800 MHz
Mean time between failures (MTBF)1370769 h
Internal memory512 MB
Flash memory256 MB
Built-in processorYes
Harmonized System (HS) code85176990
Indication
LED indicatorsActivity, Link, PoE, Speed, System
Packaging content
Packaging contentWS-C2960L-SM-48TS Switch, Accessory Kit, 1 printed document
Power
Power plug typeType C
AC input voltage110 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)41.1 W
Input current0.48 A
Operational conditions
Storage temperature (T-T)-25 - 70 °C
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)5 - 90%
Operating altitude0 - 3000 m
Non-operating altitude0 - 4500 m
Weight & dimensions
Width445 mm
Depth240 mm
Height44 mm
Packaging data
Package width336.6 mm
Package depth549.4 mm
Package height147.6 mm
Package weight5.75 kg
Logistics data
Products per master (outer) case1 pc(s)
Harmonized System (HS) code85176990
Quantity per pack1 pc(s)
Other features
Packaging contentWS-C2960L-SM-48TS Switch, Accessory Kit, 1 printed document
Country of originChina
