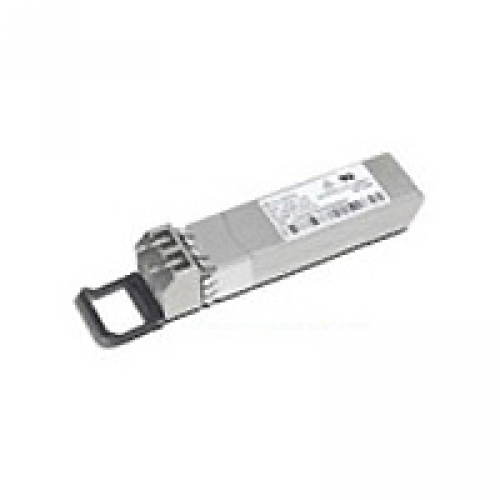

Brocade 16G FC SWL 8 Pack network transceiver module Fiber optic SFP+ 850 nm
- Brand: Brocade
- Category:
- SKU: XBR-000193
- EAN: 8592978250614
SFP+, 16Gbit/sec, MM, 850nm, LC, 8 Pack
Offer details
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £100.00 |
Related Products
Description
High Reliability and Optimized Performance
Brocade transceiver modules undergo rigorous testing and are optimized for Brocade 8Gb products to maximize performance, reduce power consumption, and help ensure the highest availability of mission-critical applications.
Brocade transceiver modules undergo rigorous testing and are optimized for Brocade 8Gb products to maximize performance, reduce power consumption, and help ensure the highest availability of mission-critical applications.
Specifications
Network | |
---|---|
SFP transceiver type | Fiber optic |
Fiber optic connector | LC |
Fiber ports quantity | 1 |
Interface type | SFP+ |
Technical details | |
Hot-swap | Yes |
Wavelength | 850 nm |
Duplex system | Full |
Compliance certificates | RoHS |
Ports & interfaces | |
Fiber ports quantity | 1 |
Performance | |
Hot-swap | Yes |
SFP transceiver type | Fiber optic |
Fiber optic connector | LC |
Wavelength | 850 nm |
Fiber ports quantity | 1 |
Duplex system | Full |
Interface type | SFP+ |
Multi-mode fiber (MMF) supported | Yes |
Features | |
Hot-swap | Yes |
Certification | UL/CSA 60950, CDRH Class 1 EN 60590, EN 60825 Class 1 |
Power | |
Input voltage | 3.3 V |
Operational conditions | |
Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions | |
Width | 14.8 mm |
Depth | 56.5 mm |
Height | 11.8 mm |
Certificates | |
Certification | UL/CSA 60950, CDRH Class 1 EN 60590, EN 60825 Class 1 |
