Blustream HEX70HDUK-KIT AV extender AV transmitter & receiver Black
- Brand: BLUSTREAM
- Category:
- SKU: HEX70HDUK-KIT
- EAN:
4x HDMI Type-A, 3x RJ-45, DisplayPort, 2x RS-232, 5x IR ports, 2x Relay Port, 5x USB Type-A, 2x USB Type-B, USB Type-C, Micro USB, 2x EDID
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Multi Format HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K60Hz 4:4:4 up to 70m (4K up to 40m), Switchable HDMI, DisplayPort and USB-C inputs with auto signal sensing, Local HDMI input on RX, USB 2.0 extension, Bi-directional IR & RS-232, Bi-directional |
HEX70HDUK-KIT |
Description

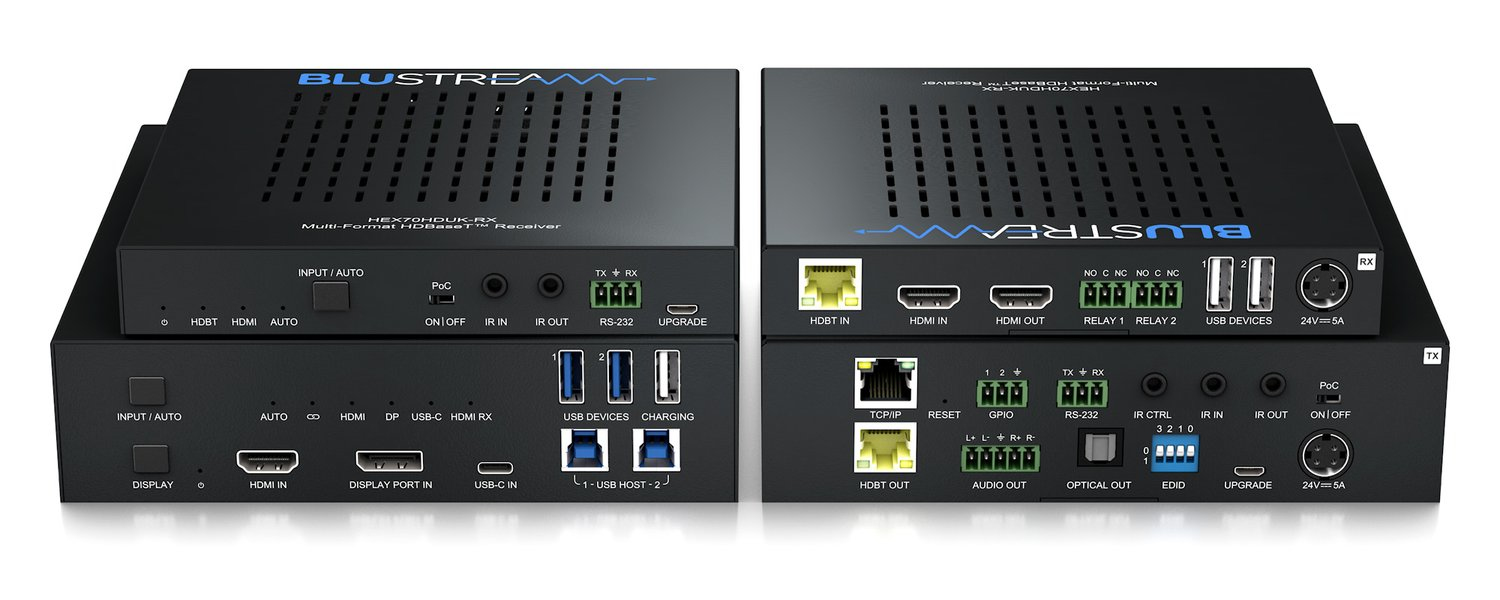

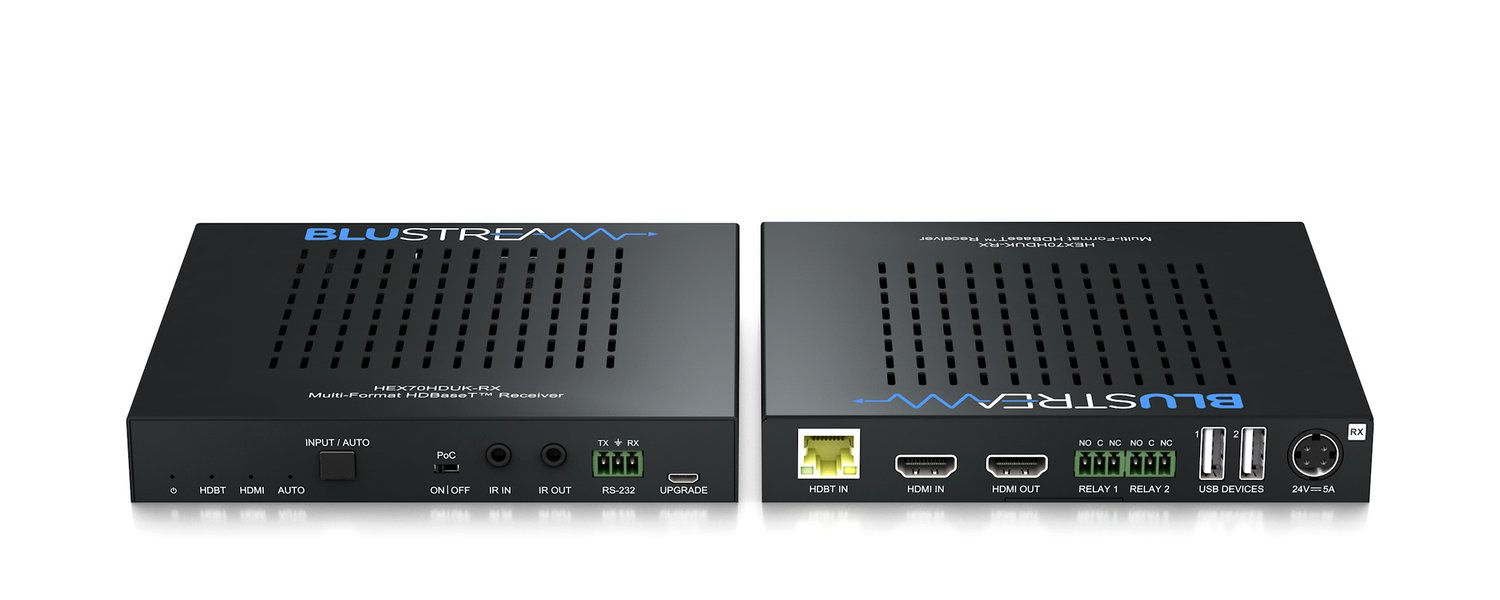

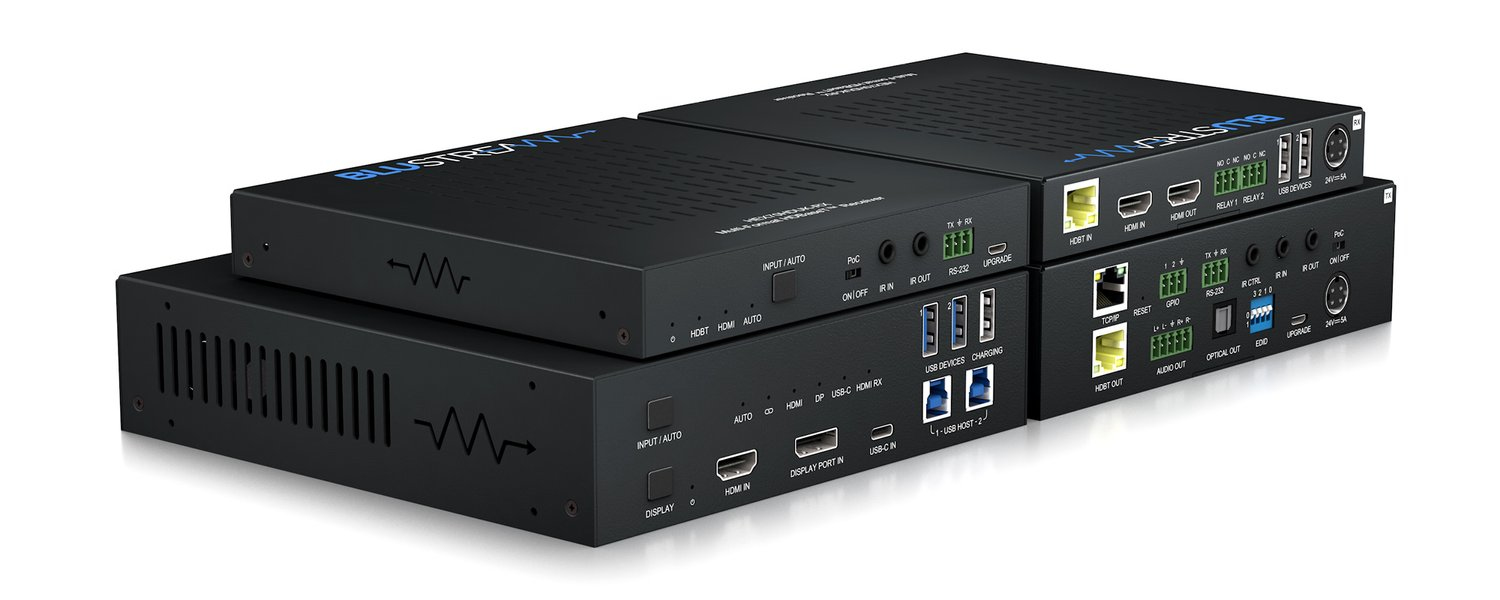

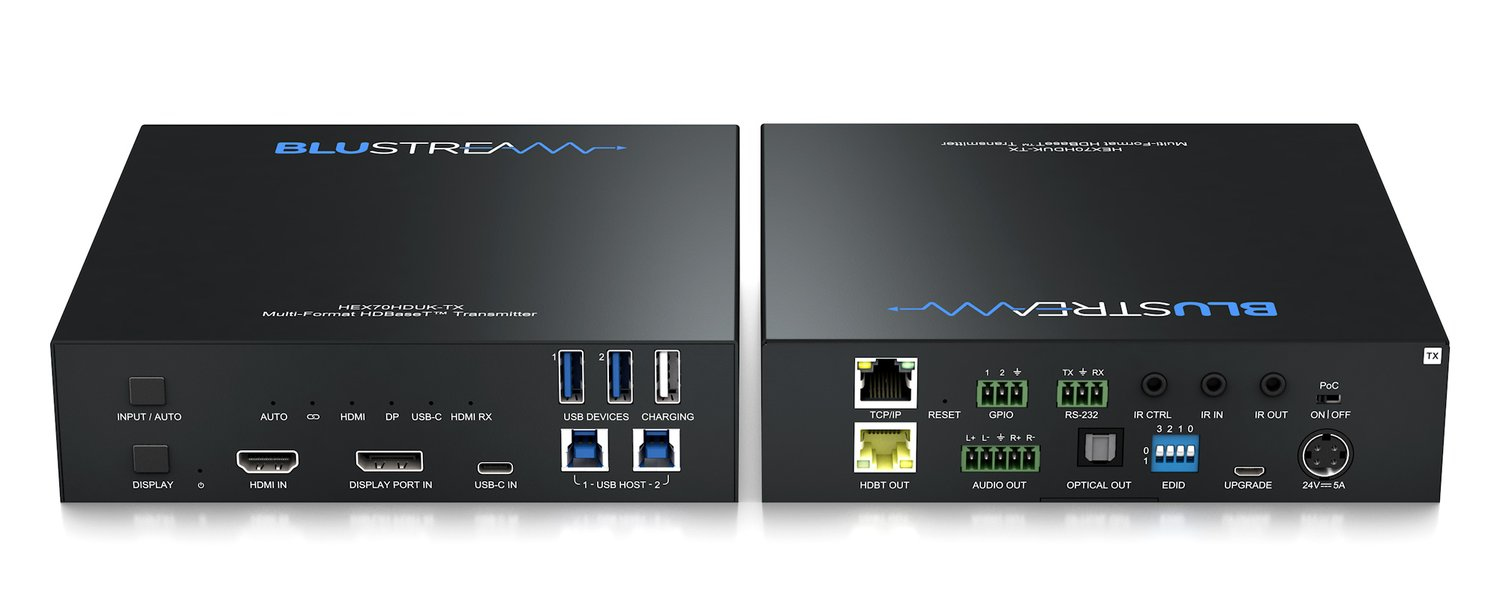

The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort™ up to lengths of 40m (70m at 1080p) over a single CAT cable.
The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.
The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.
The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.
The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.
Specifications
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | HDMI |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| Technical details | |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Cable types supported | HDMI |
| Product colour | Black |
| Connectivity technology | Wired |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| Remote (IR) output | 2 |
| Remote (IR) input | 3 |
| USB ports quantity | 11 |
| DisplayPorts in | 1 |
| RS-232 input ports | 2 |
| USB connector type | Micro-USB, USB Type-A, USB Type-B, USB Type-C |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Power | |
| Output current | 5 A |
| Operating voltage (transmitter) | 24 V |
| Operating voltage (receiver) | 24 V |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 55 °C |
| Weight & dimensions | |
| Transmitter dimensions (WxDxH) | 183 x 44 x 173 mm |
| Receiver dimensions (WxDxH) | 155 x 24 x 155 mm |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| IR receiver included | Yes |
| Mounting kit | Yes |
| Cables included | RS-232 |
| Quick start guide | Yes |
| Manual | Yes |
| IR emitter included | Yes |
