Blustream C88CS matrix switcher AV matrix switcher
- Brand: BLUSTREAM
- Category:
- SKU: C88CS
- EAN:
HDMI, RJ45, IR, RS-232, 1U, HDCP, PoC, 437 x 377 x 44 mm
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Contractor 8x8 HDBaseT™ CSC Matrix - 70m (4K 60Hz 4:4:4 up to 40m), Bi-directional IR, PoC, Simultaneous HDMI / HDBaseT™ on output 1, video down-scaling on HDBaseT outputs, RS-232 & TCP / IP Control, HDCP 2.2 compliant, Web-GUI |
C88CS |
Description

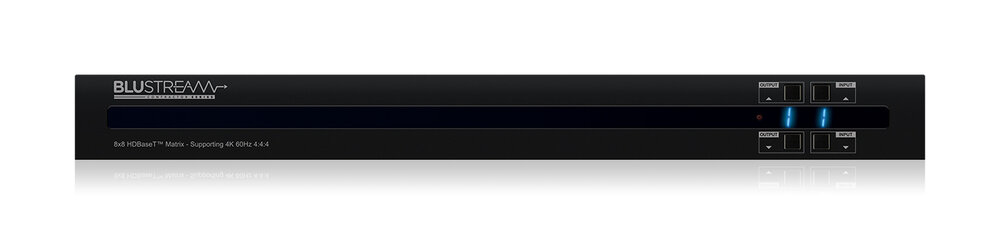

Our Contractor 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs, and a web browser interface module for control and configuration of the matrix.
- Supports bi-directional IR on all HDBaseT™ outputs
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
- Supplied with Blustream IR receivers and emitters
- 3rd party drivers available for major control brands
- 1U Design for 19" rack mount integration - mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
- Recommended receiver: RX70CS (where 18Gbps CSC support is required)
Specifications
| Features | |
|---|---|
| Product type | AV matrix switcher |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Supported resolutions | Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K |
| Supported chroma subsampling | 4:4:4,4:2:0 |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Housing colour | Black |
| Control type | Buttons |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 9 |
| Remote (IR) output | 8 |
| Remote (IR) input | 9 |
| Power | |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
| Width | 437 mm |
| Depth | 377 mm |
| Height | 44 mm |
| Package weight | 6.25 kg |
| Packaging content | |
| Cables included | RS-232 |
| Rack mount kit | Yes |
| IR receiver included | Yes |
