B-Tech SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment - 0.5m Ø50mm Pole

B-Tech SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment - 0.5m Ø50mm Pole

  • Brand: B-Tech
  • Category:
  • SKU: BT893-FD050/BB
  • EAN: 5019318759864
SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment - 0.5m Ø50mm Pole

Trade Prices

Distributor Product SKU Stock Updated Price
Midwich BTEBT893 + BTEBT7808B + BTEBT7850-05B - Bundle BTEBT893-050BB Register free see stock
Northamber BT893-FD050/BB Heavy Duty Projector Ceiling Mount with Micro-adjustment - 0.5m BTECH0807
Solstice AV SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment - 0.5m 50mm Pole BT893-FD050-BB
SquareOne Ireland BTEBT893 + BTEBT7808B + BTEBT7850-05B - Bundle BTEBT893-050BB
Audio Visual Intelligence SYSTEM 2 - Heavy Duty Projector Ceiling Mount with Micro-adjustment - 0.5m Ø50mm Pole BT893-FD050/BB

Related Products

Description

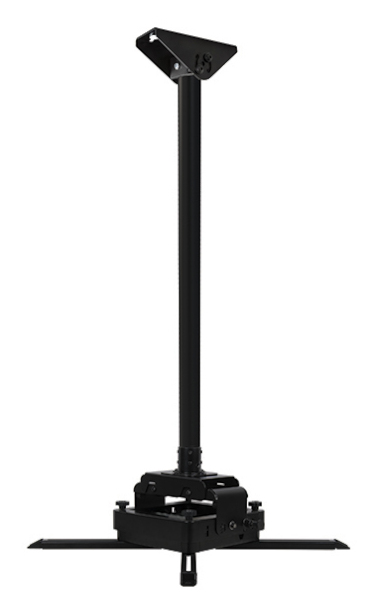

The BT893-FD is a ceiling mounted, universal projector mount designed to mount projectors up to 70kg. Suitable for use with angled ceilings, the BT893-FD features easy adjustment of tilt, yaw & roll plus additional micro-adjustment at each corner makes alignment of projections quick & simple. The projector fixes to a mounting plate that can be extended to accommodate large fixing patterns using the included extension legs. Available in a range of pole lengths to suit your requirements.

Specifications

Mounting
Mounting typeCeiling
Maximum weight capacity70 kg
Ceiling mounting tube length (max)53.4 cm
Performance
Tilt angle range-10 - 20°
Angle of rotation45°
Mounting typeCeiling
Maximum weight capacity70 kg
Product colourBlack
Ceiling mounting tube length (max)53.4 cm
Ergonomics
Tilt angle range-10 - 20°
Angle of rotation45°
Product colourBlack
Weight & dimensions
Width790 mm
Height687 mm
Depth790 mm
Technical details
Tilt angle range-10 - 20°
Angle of rotation45°
Mounting typeCeiling
Maximum weight capacity70 kg
Product colourBlack
Ceiling mounting tube length (max)53.4 cm
Logistics data
Products per master (outer) case1 pc(s)
Harmonized System (HS) code83024200
Master (outer) case 2 weight980 g
Master (outer) case 3 volume0.001 cm³
Master (outer) case 2 volume0.00154 cm³
Quantity per master (outer) case 21 pc(s)
Master (outer) case gross weight8 kg
