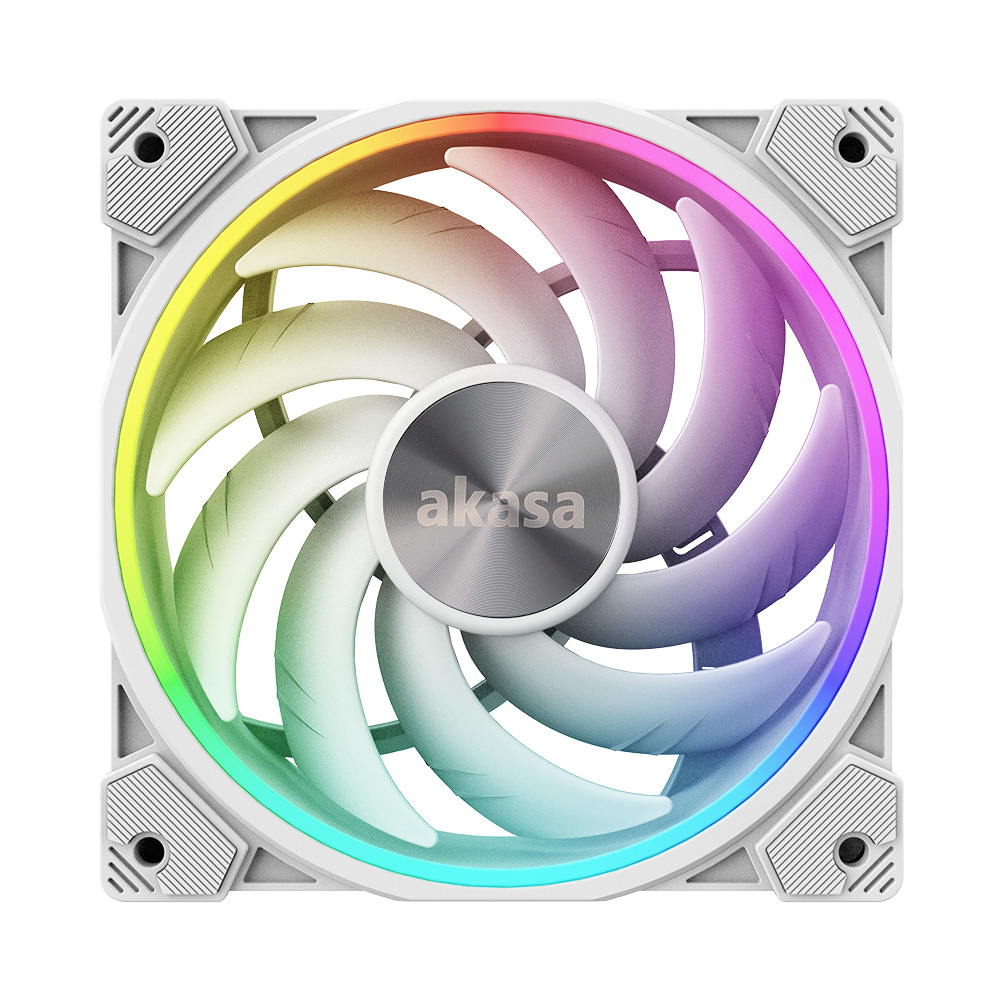

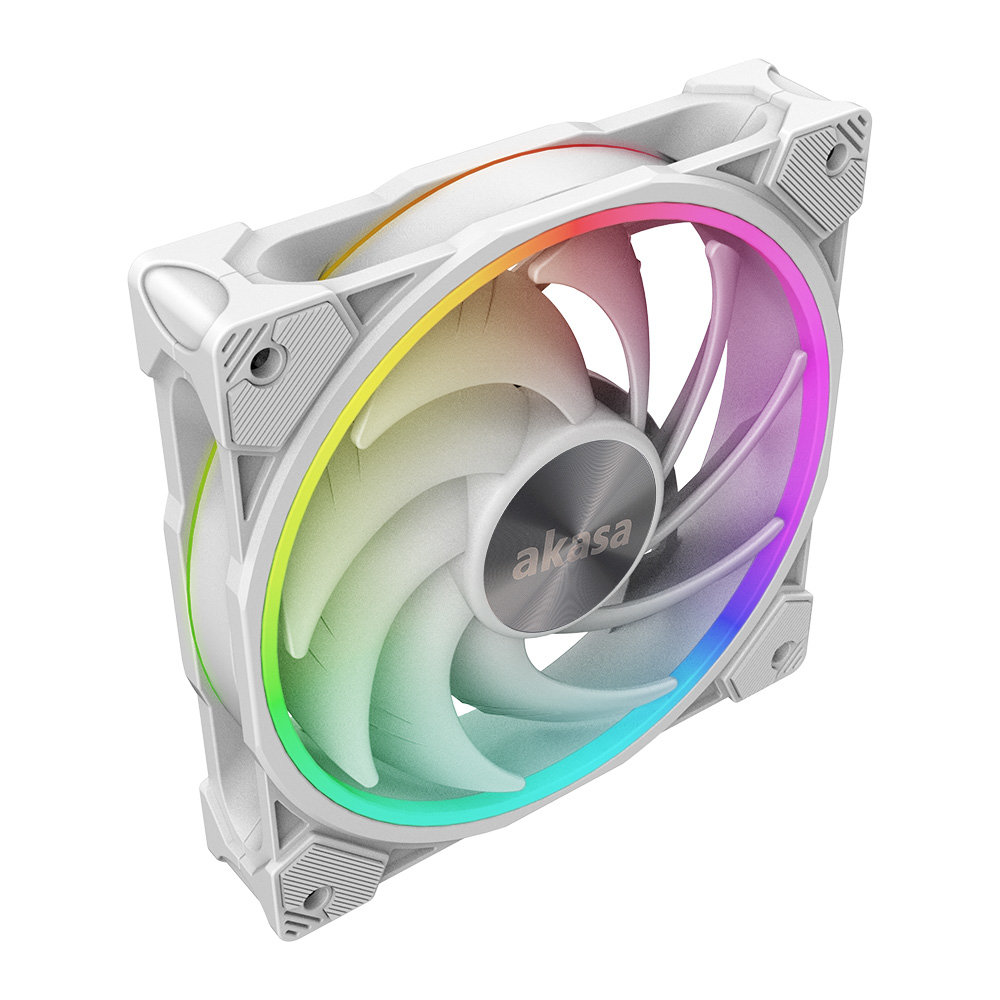

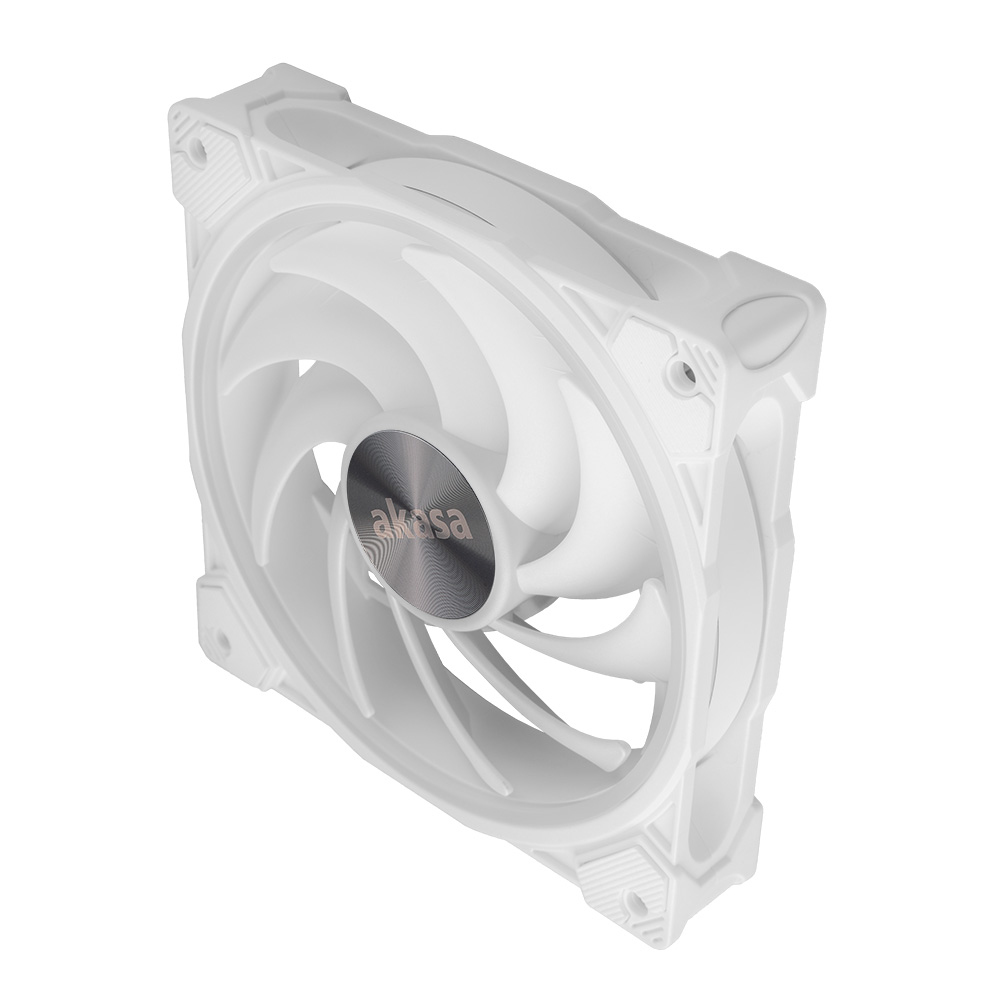

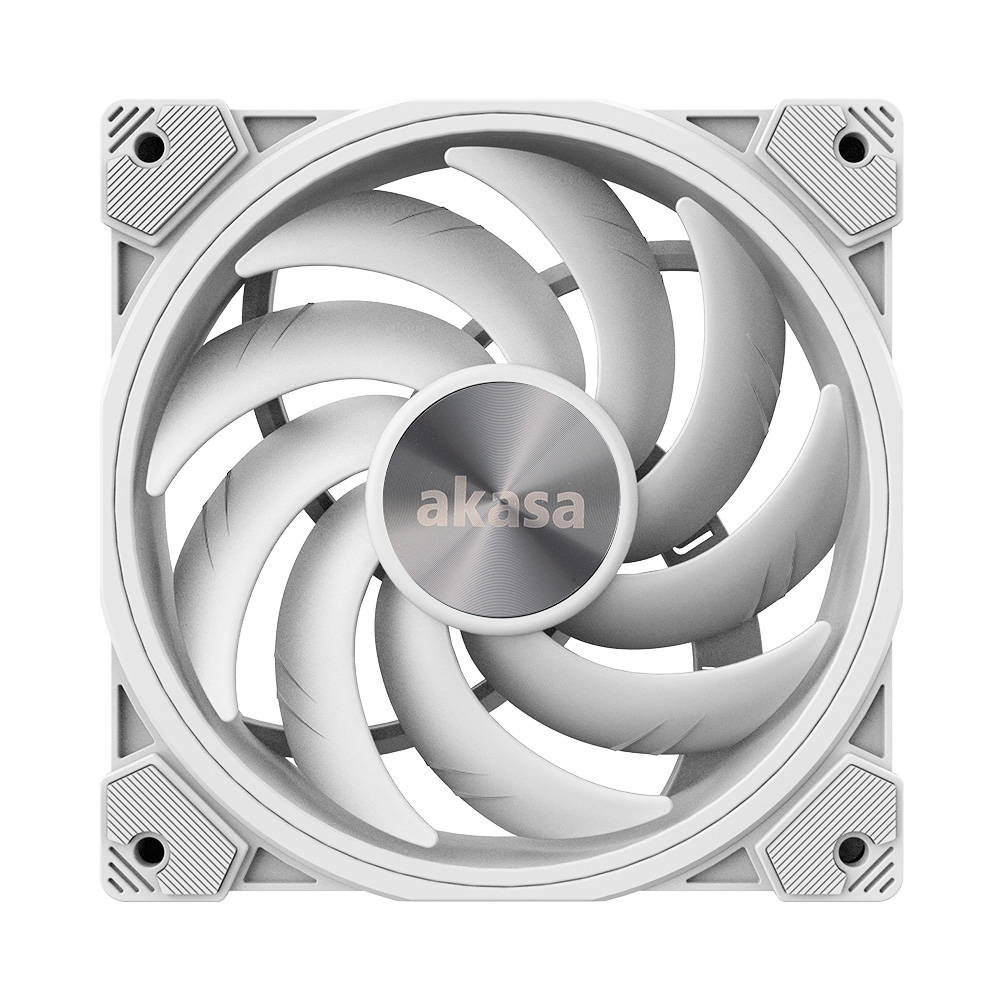

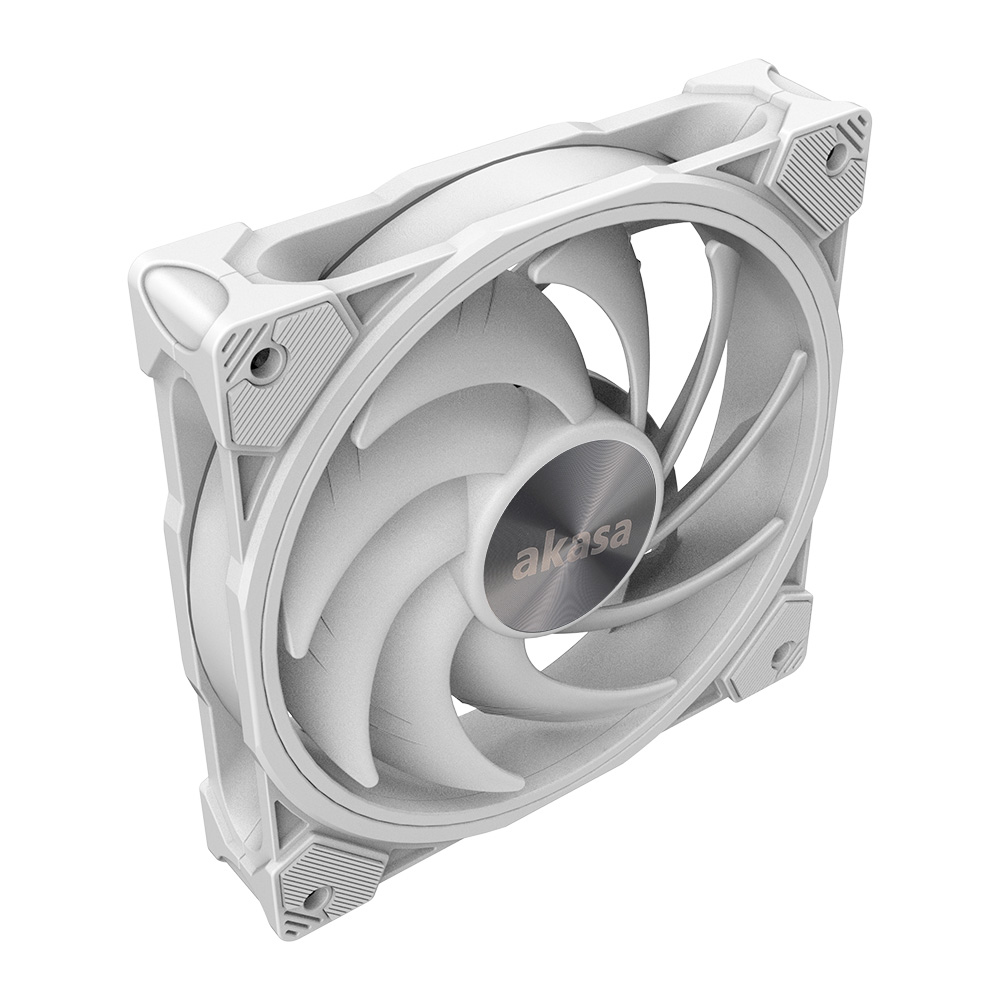

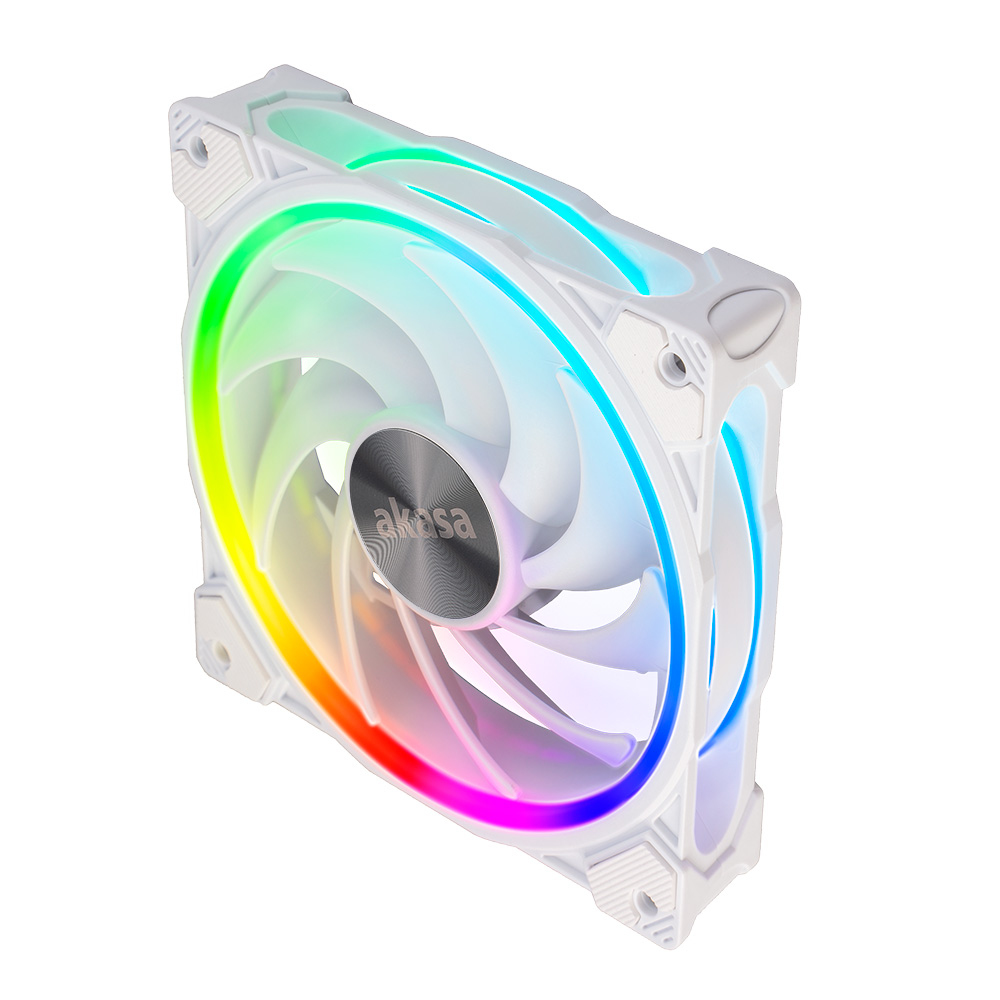

Akasa SOHO AR Computer case Heatsink/Radiator 12 cm Transparent, White 1 pc(s)

Akasa SOHO AR Computer case Heatsink/Radiator 12 cm Transparent, White 1 pc(s)

120 x 120 x 25 mm, HD Bearing, 500 - 2000 RPM

Trade Prices

Distributor Product SKU Stock Updated Price
EET

Soho Ar Computer Case

AK-FN108-WH Register free see stock
Fourcom

SOHO AR Addressable-RGB L�¼fte

448828

Retail Prices

Merchant Product Condition Updated Price
Amazon New £33.62
Amazon New £23.95
Amazon New £28.56

Description

Premium 120mm case, heatsink and radiator cooling fan featuring advanced blade technology, intelligent PWM speed control and vibrant individually aRGB LEDs. Motherboard sync with compatible common RGB software providers. Available in Dusk and Dawn editions.

The New Generation of Premium Fan
Perfectly blending advanced blade design, rotor technology and an
elegant reinforced frame, with vivid addressable RGB LED visualisation
whilst operating at low decibel levels for a quiet experience, to create
the new generation of premium Akasa fans.

Over 16 Million aRGB Lighting Combinations
Embedded with 14 individually addressable RGB LED nodes on the frame with 3
distinctive light ring zones, which enhances the fan frame and deliver
unique and futuristic radiance. Experience a multitude of visual possibilities
with over 16.8 million colour combinations for totally customisable lighting.
Motherboard sync with and certified by popular RGB software including Asus,
ASRock, Gigabyte, MSI and Razer.

Design
Advanced sickle blade design with improved blade curvature provides superb aerodynamic efficiency with excellent air flow and air pressure. Coupled with optimised rotor technology significantly reduces air turbulence for quiet operation whilst performing at full speed.

Advanced Hydro Dynamic Bearing
New MHD bearing features a Hydro Dynamic bearing with enhanced powder
metallurgy technology. MHD Bearing technology utilises increased oil capacity
which improves lubrication on the bearing, offering smoother rotation. The
improved oil distribution creates the ultimate fluidity which extends fan life and
reliability up to 40,000 hours and a lowering fan noise.

Intelligent Fan Performance
Intelligent Pulse Width Modulation (PWM) speed control ensures that the fan cools your
system efficiently, staying quiet under lower loads and performing effectively otherwise.
With a powerful airflow of up to 52.9 CFM and strong air pressure of up to
1.75mm-H2O, the Soho AR fan is the ideal solution for a case, heatsink or radiator fan.

Reinforced Frame
and Padding for
Silent Operation

Reinforced frame adds rigidity
and screams premium. Whilst
functionally, reducing turbulence
and noise . Coupled with discrete
anti-vibration mountings
attached to each corner of the fan
minimise operational noise and
transmission of vibrations to the PC
case and other components,
keeping noise in check.

Specifications

Performance
Suitable locationComputer case
Fan connector4-pin
Rotational speed (min)500 RPM
Rotational speed (max)2000 RPM
Bearing typeHydro Dynamic Bearing (HDB)
TypeHeatsink/Radiator
Fan diameter12 cm
Maximum airflow52.91 cfm
Number of fans3 fan(s)
Quantity per pack1 pc(s)
Fan noise level (min)14.2 dB
Fan noise level (max)31.8 dB
Fan static pressure1.75 mmH2O
Fan's mean time to failure (MTTF)40000 h
Design
Fan connector4-pin
Number of fans3 fan(s)
Product colourTransparent, White
Illumination LEDYes
LED connector type3-pin
Technical details
TypeHeatsink/Radiator
Fan diameter12 cm
Maximum airflow52.91 cfm
Number of fans3 fan(s)
Fan connector4-pin
Illumination LEDYes
Ports & interfaces
Fan connector4-pin
Power
LED voltage5 V
Fan voltage12 V
Fan current0.13 A
Colour
Product colourTransparent, White
Weight & dimensions
Width120 mm
Depth25 mm
Height120 mm
Other features
LED voltage5 V
