ATEN PP4.0 Secure KVM Remote Port Selector

ATEN PP4.0 Secure KVM Remote Port Selector

  • Brand: ATEN
  • Category:
  • SKU: 2XRT-0019G
  • EAN: 4710469341533 0672792013348
ATEN PP4.0 Secure KVM Remote Port Selector

Trade Prices

Distributor Product SKU Stock Updated Price
Exertis IT

PP4.0 Sec. KVM Remote Port Selector

10394165 Register free see stock
Fairline

PP4.0 Sec. KVM Remote Port Selector

2XRT-0019G
Mediatron

PP4.0 Secure KVM Remote Port Selector

2XRT-0019G
Northamber

PP4.0 Secure KVM Remote Port Selector

ATENKV268
TD Synnex UK

IOGEAR 2XRT-0019G - KVM switch remote control - for ATEN CS1142, CS1144, CS1148, CS1182, CS1184

View on InTouch open_in_new
11494632
ATEN

2XRT-0019G

2XRT-0019G

Related Products

Description

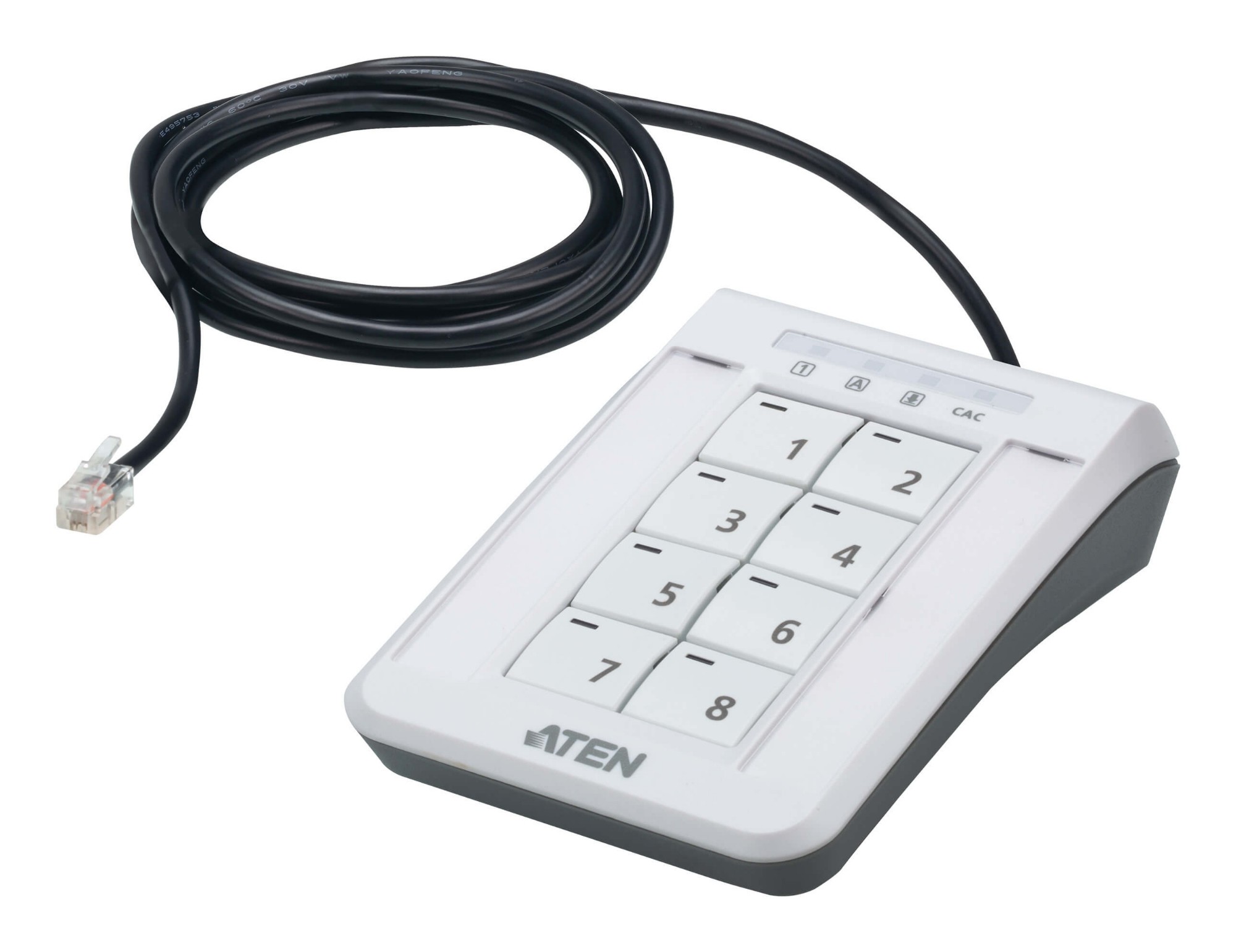

The ATEN PP4.0 Secure KVM Remote Port Selector (RPS) ,2XRT-0019G, is designed to enhance user experience and efficiency while operating ATEN PP4.0 Secure KVM Switches by providing an efficient way to switch between connected computers. Simply plug and play1 the RPS to the Secure KVM Switch2 without any additional software installation required to quickly and easily control your ATEN PP4.0 Secure KVM Switch. Once the RPS is connected, simply press the RPS pushbuttons to switch KVM focus. The status will show on both the KVM front panel LEDs and the RPS front panel LEDs. The RPS’ Tamper-Evident Label and Always-on Chassis Intrusion Detection prevent any attempt at physical tampering, helping to safeguard classified data against malicious attacks. Thanks to its compact size, the device can be placed line-of-sight on the desktop, enabling instant switching across multiple PCs and optimizing productivity while eliminating cable clutter.

Note:
1. Make sure to connect the RPS before powering on the ATEN Secure KVM Switch. If the RPS is connected after the ATEN Secure KVM Switch is powered on, the RPS will not be detected.
2. The RPS is compatible with ATEN PP4.0 2/4/8-Port Secure KVM Switches.

Specifications

Features
Product typeKeypad
Cable length1.8 m
Operating relative humidity (H-H)0 - 80%
Maximum operating temperature50 °C
InterfaceRJ-11
Product colourBlack, White
Country of originTaiwan
MaterialPlastic
Power
Input voltage5 V
Input current0.17 A
Power consumption (typical)0.15 W
Power sourceDC
Weight & dimensions
Width55 mm
Weight150 g
Height223 mm
Depth155 mm
Technical details
Cable length1.8 m
Width55 mm
Operating relative humidity (H-H)0 - 80%
Maximum operating temperature50 °C
InterfaceRJ-11
Height223 mm
Depth155 mm
Product colourBlack, White
Master (outer) case width328 mm
Master (outer) case gross weight8.49 kg
Master (outer) case length389 mm
Master (outer) case height330 mm
Country of originTaiwan
Package volume1982.179 cm³
Master (outer) case volume42192.102 cm³
Operational conditions
Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 80%
Heat dissipation1 BTU/h
Packaging data
Package weight200 g
Logistics data
Master (outer) case width328 mm
Master (outer) case gross weight8.49 kg
Master (outer) case length389 mm
Master (outer) case height330 mm
Master (outer) case net weight6.06 kg
