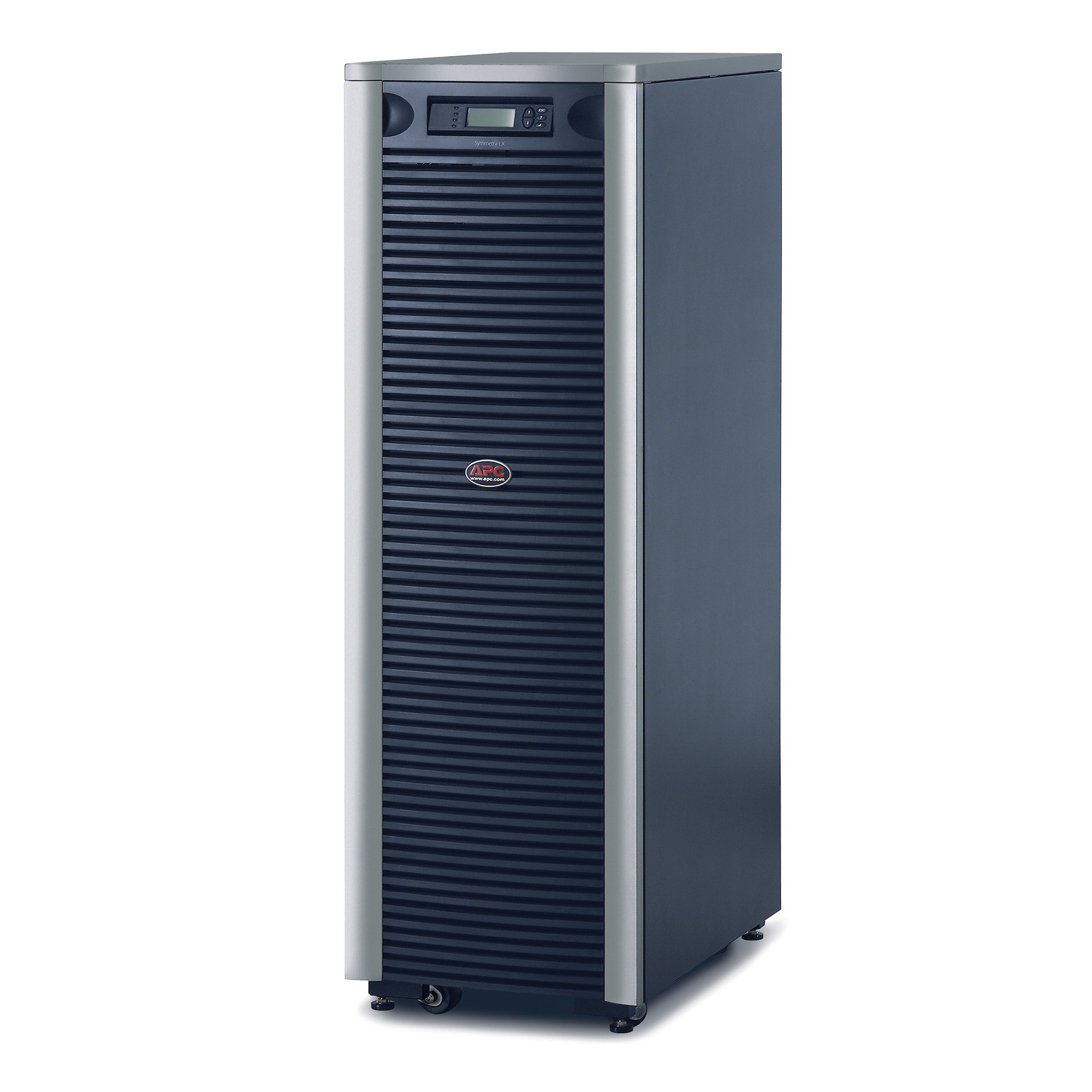

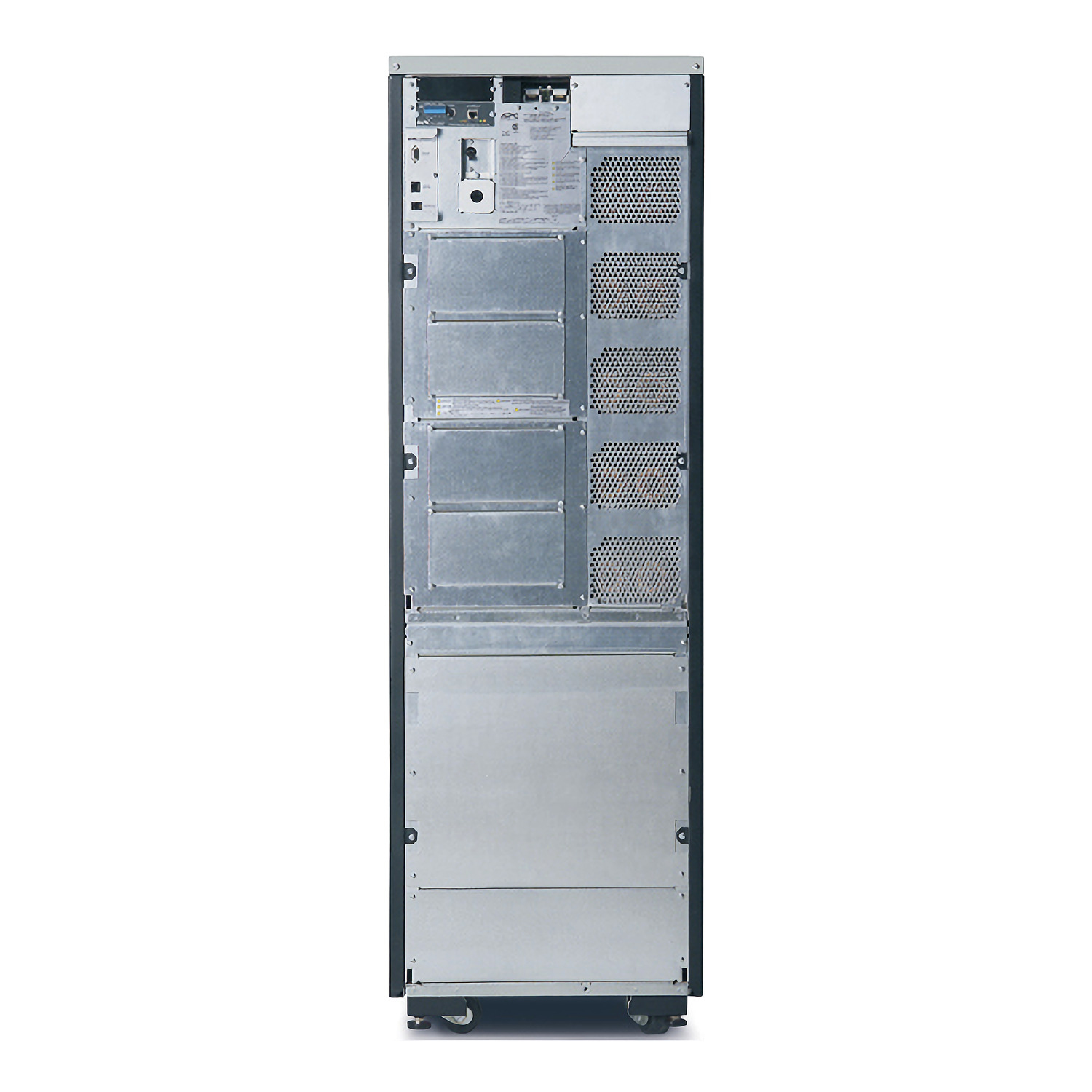

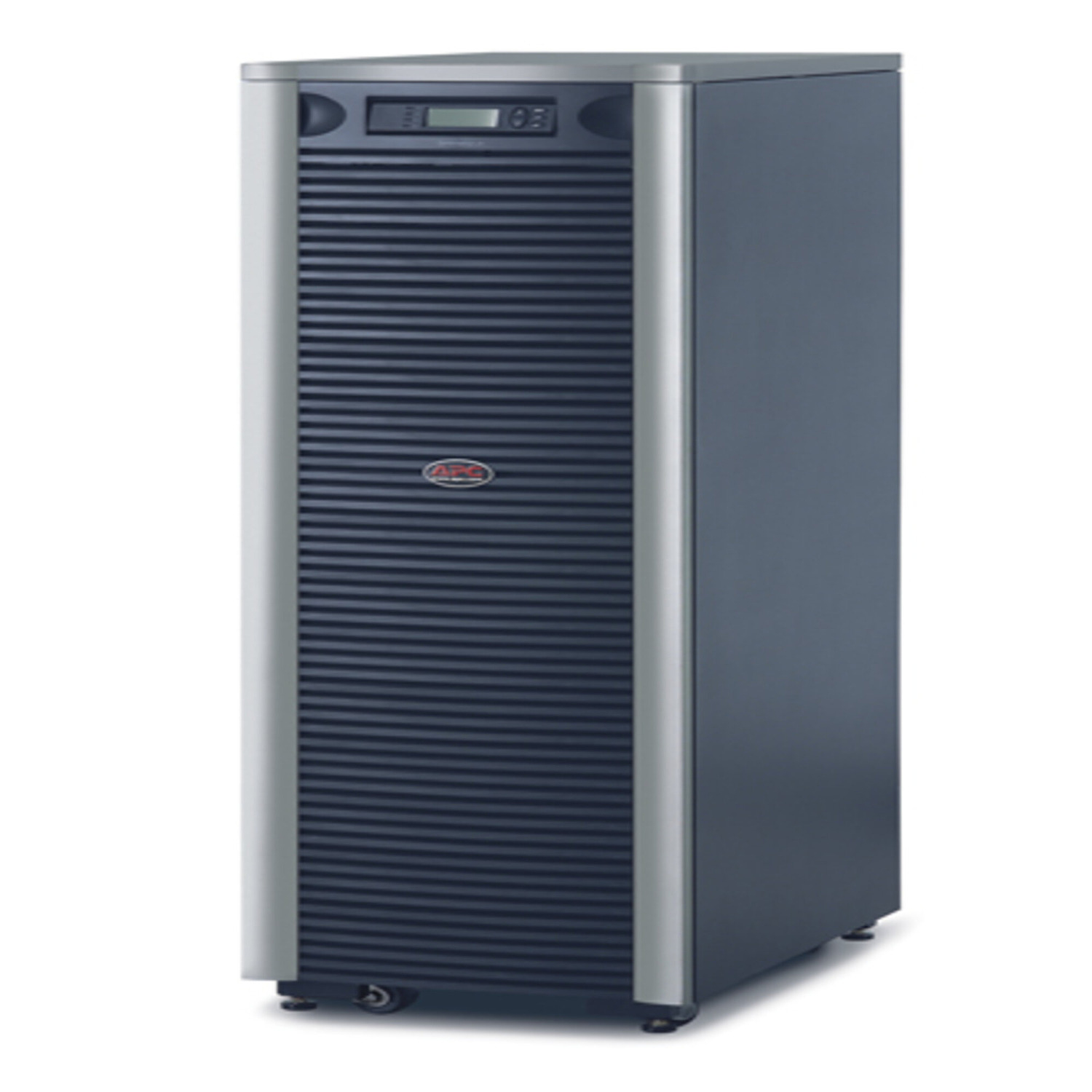

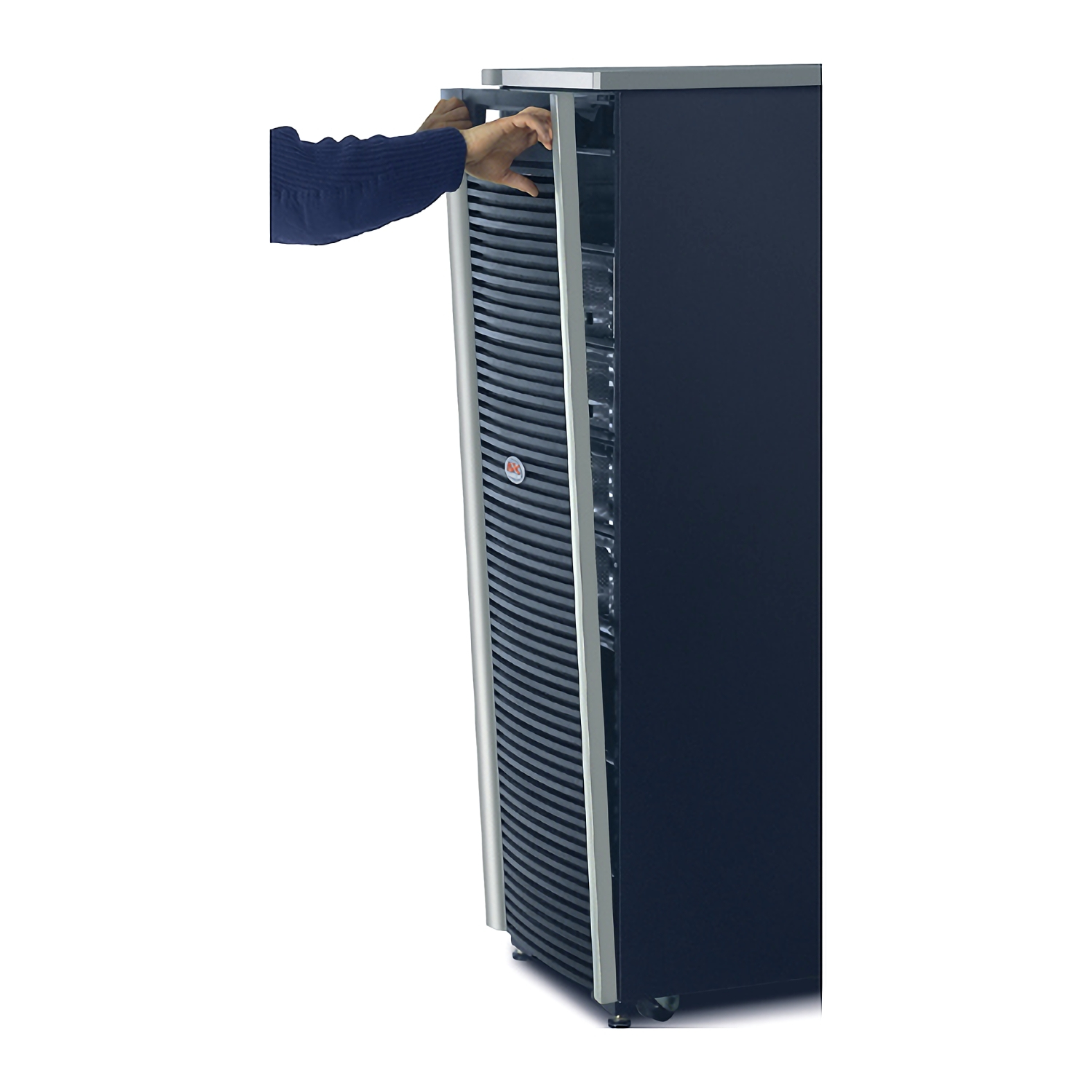

APC Symmetra LX 12kVA scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V
- Brand: APC
- Category:
- SKU: SYA12K16IXR
- EAN: 2000009255089 0731304578314 50 ...4578314 5055792367386 8592978247645 0731304308102more
Symmetra LX 12kVA scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Symmetra LX 12kVA Scalable to 16kVA | 000000000000106672 | |||
|
SYMMETRA LX 12KVA SCALABLE TO 16KVA N+1 EXT. RUN TOWER, 220/230/240V OR 380/400/415V | SYA12K16IXR | |||
|
Freight charge of 1% to be added for APC kit, Please add SKU 2550388 at 1% of total order value to your PO when placing order | 925508 | |||
|
Symmetra LX 12kVA to 16kVA N+1 Ext. N+1 Ext. Run Tower 230V or 400V | SYA12K16IXR | |||
|
Symmetra LX/12KVA<gt/>16KVA | SYA12K16IXR |
Description
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Specifications
| Power | |
|---|---|
| Output power | 8400 W |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 12 kVA |
| Battery | |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Typical backup time at half load | 77.4 min |
| Typical backup time at full load | 35.4 min |
| Replacement battery cartridge | SYBT5 |
| Features | |
| Output power | 8400 W |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 12 kVA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 489 g |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Interface | DB-9 RS-232, Smart-Slot |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 480 x 730 x 1520 mm |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Nominal output voltage | 230 V |
| Networking features | Yes |
| I/O ports | Pre-Installed SmartSlot Cards - AP9619 |
