APC Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support
- Brand: APC
- Category:
- SKU: SMV750CAI
- EAN: 0731304346562
Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
APC Easy UPS SMV 750VA | 000000000000252919 | ||||
Easy UPS SMV 750VA 230V | 10286270 | ||||
EASY UPS SMV 750VA 230V WITH | CA01818 | ||||
Easy UPS SMV 750VA 230V | SMV750CAI | ||||
APC Easy UPS SMV SMV750CAI - UPS - AC 220/230/240 V - 525 Watt - 750 VA - 7 Ah - USB, RS-232 - output connectors: 6 | 5352077 | ||||
E-UPS 1 PH LINEIN 750VA TOWER 230V | SMV750CAI | ||||
Easy UPS SMV - Line-Interaktiv - 0 75 kVA - 525 W - Sine - 160 V - 295 V | SMV750CAI | ||||
Easy UPS SMV 750VA 230V | SMV750CAI | ||||
Ingram Micro CS | EASY UPS SMV 750VA 230V WITH | CA01818 | |||
E-UPS 1 PH LINEIN 750VA TOWER 230V | CLSMV750CAI | ||||
BY SCHNEIDER ELECTRIC Easy UPS Line-interactive UPS - 750 VA/525 W - Tower - AVR | STD10063284 |
Retail Prices
Merchant | Product | Condition | Updated | Price |
---|---|---|---|---|
Amazon | New | £419.17 | ||
Amazon | New | £297.14 | ||
Amazon | New | £411.35 | ||
Amazon | New | £298.00 | ||
Amazon | New | £303.21 | ||
Amazon | New | £303.20 | ||
Amazon | New | £330.86 |
Description

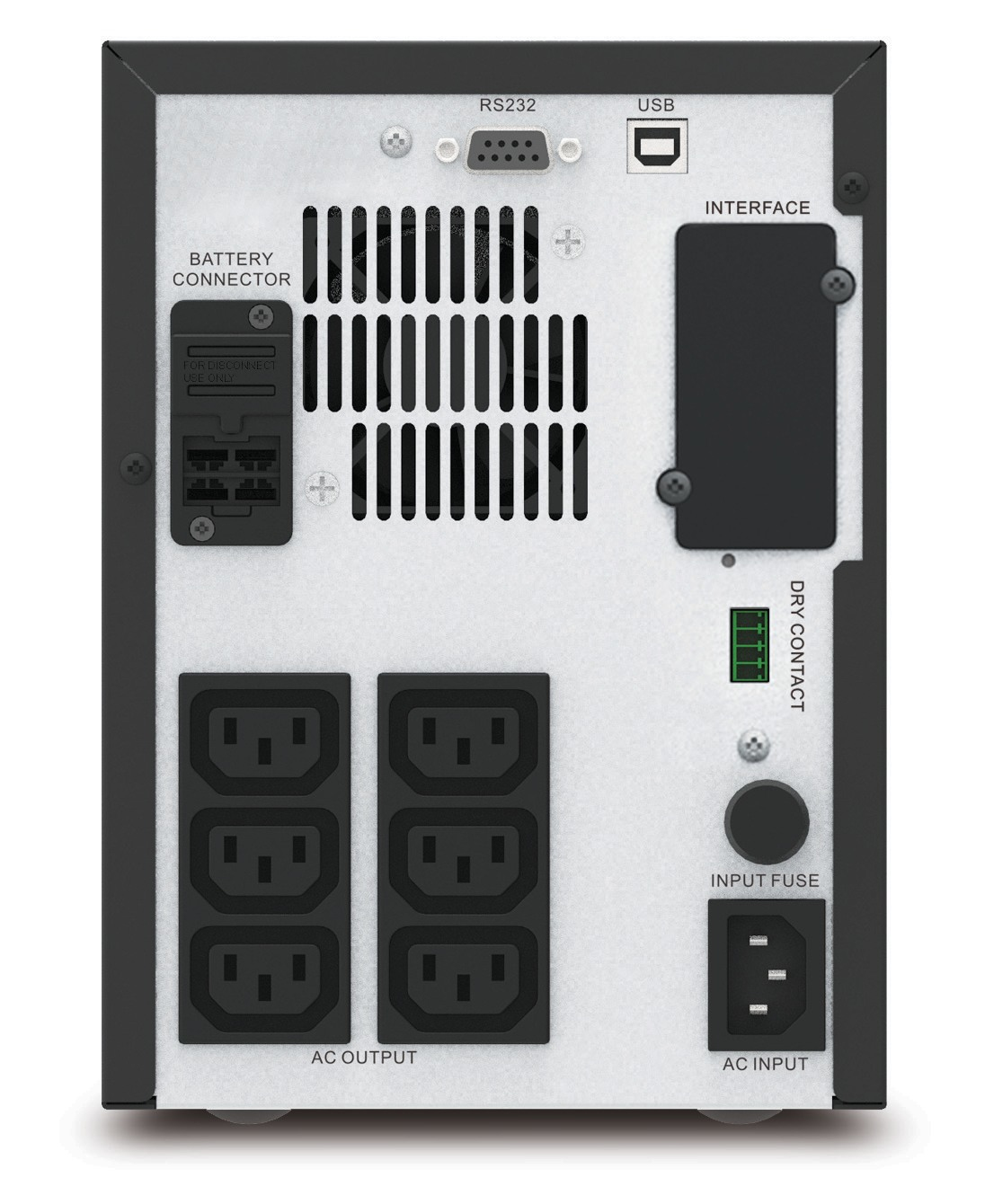

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 750VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.
Specifications
Power | |
---|---|
Output voltage regulation | -1 - 1% |
Output power | 525 W |
Input operation voltage (min) | 160 V |
Input operation voltage (max) | 295 V |
Output operation voltage (min) | 230 V |
Output operation voltage (max) | 230 V |
Maximum current | 8 A |
Crest factor | 3:1 |
Output power capacity | 0.75 kVA |
Performance | |
Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
UPS topology | Line-Interactive |
Waveform | Sine |
Automatic Voltage Regulation (AVR) | Yes |
LED indicators | Yes |
Power protection features | Overload, Short circuit |
Noise level | 45 dB |
Audible alarm(s) | Yes |
Features | |
Output frequency | 50/60 Hz |
Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
UPS topology | Line-Interactive |
Waveform | Sine |
Output voltage regulation | -1 - 1% |
Automatic Voltage Regulation (AVR) | Yes |
Output power | 525 W |
Input operation voltage (min) | 160 V |
Input operation voltage (max) | 295 V |
Output operation voltage (min) | 230 V |
Output operation voltage (max) | 230 V |
Maximum current | 8 A |
Power protection features | Overload, Short circuit |
Noise level | 45 dB |
Crest factor | 3:1 |
Audible alarm(s) | Yes |
Output power capacity | 0.75 kVA |
Input frequency | 45/65 Hz |
Ports & interfaces | |
USB port | Yes |
AC outlets quantity | 6 AC outlet(s) |
AC outlet types | IEC 320 |
Battery | |
Battery life (max) | 5 year(s) |
Number of batteries supported | 2 |
Battery voltage | 12 V |
Battery capacity | 7 Ah |
Battery technology | Sealed Lead Acid (VRLA) |
Battery recharge time | 4 h |
Cold start | Yes |
Design | |
International Protection (IP) code | IP20 |
Form factor | Tower |
LED indicators | Yes |
Product colour | Black |
Display type | LCD |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 40 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Technical details | |
Output frequency | 50/60 Hz |
Harmonized System (HS) code | 85078000 |
Weight & dimensions | |
Weight | 13.6 kg |
Width | 160 mm |
Height | 220 mm |
Depth | 410 mm |
Battery width | 27.2 cm |
Battery depth | 50.8 cm |
Battery height | 33.9 cm |
Battery weight | 16.6 kg |
Packaging data | |
Cables included | USB cable |
Manual | Yes |
Logistics data | |
Harmonized System (HS) code | 85078000 |
Packaging content | |
Cables included | USB cable |
Manual | Yes |
