APC Easy UPS 1 Ph Line Interactive, 3kVA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support
- Brand: APC
- Category:
- SKU: SMV3000CAI
- EAN: 0731304346555
Easy UPS 1 Ph Line Interactive, 3kVA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
APC Easy UPS SMV 3000VA 230V | 000000000000253648 | |||
|
Easy UPS SMV 3000VA 230V | 10286274 | |||
|
EASY UPS SMV 3000VA 230V WITH | CA01822 | |||
|
Easy UPS SMV SMV3000CAI - UPS - AC 220/230/240 V - 2100 Watt - 3000 VA - 4 x battery - 9 Ah - USB, RS-232 - output connectors: 6 | 5352076 | |||
|
E-UPS 1 PH LINEIN 3KVA TOWER 230V 6 | SMV3000CAI | |||
|
Easy UPS SMV SMV3000CAI - USV - Wechselstrom 220/230/240 V - Line-Interactive-USV | SMV3000CAI | |||
|
Easy UPS SMV 3000VA 230V | SMV3000CAI | |||
| Ingram Micro CS | EASY UPS SMV 3000VA 230V WITH | CA01822 | |||
|
E-UPS 1 PH LINEIN 3KVA TOWER 230V 6 | CLSMV3000CAI |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,261.00 | ||
| Amazon | New | £1,890.13 |
Related Products
-
Category: Power Distribution Units (PDUs) -
Category: Power Distribution Units (PDUs) -
Category: Power Distribution Units (PDUs)
Description

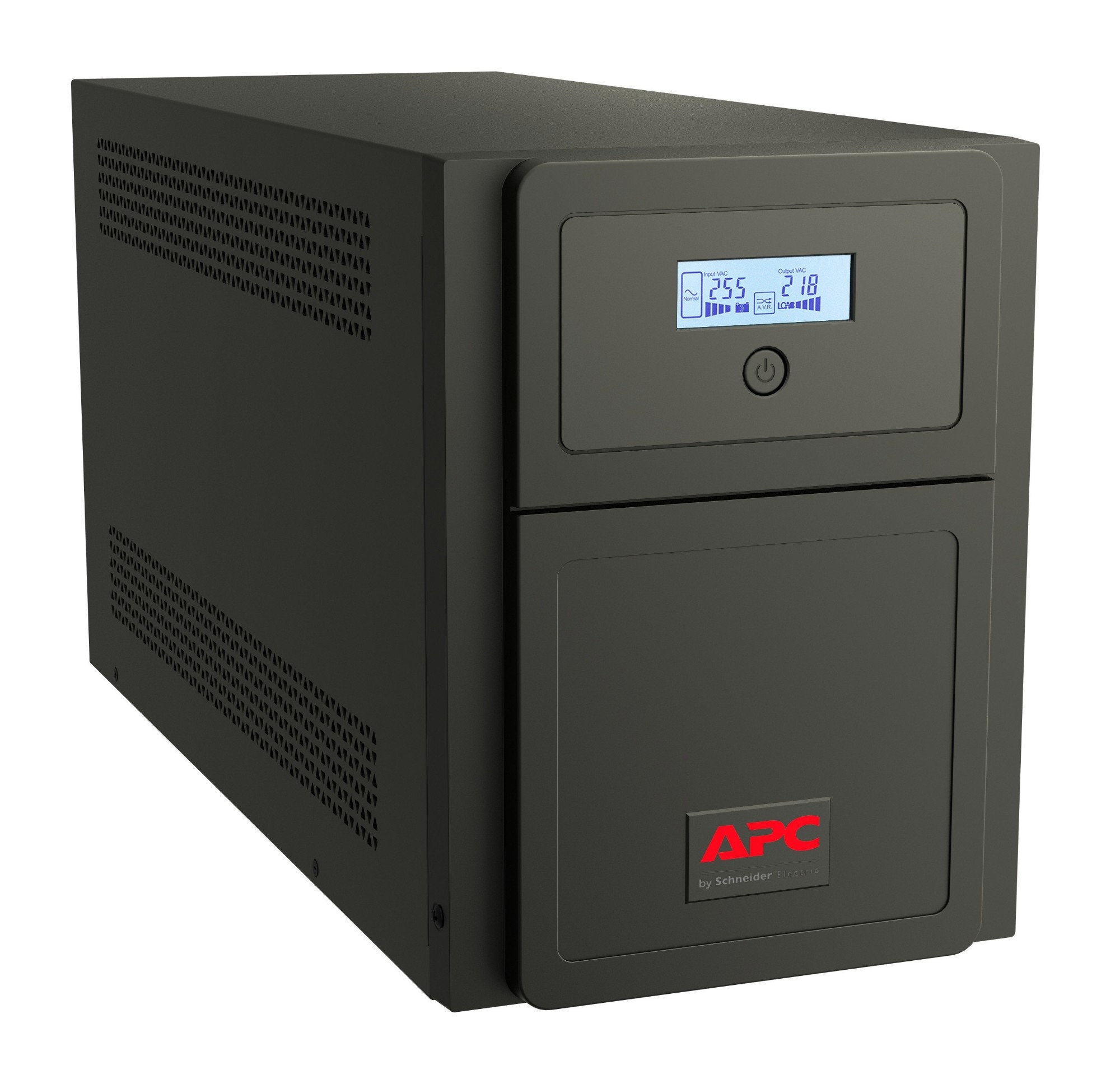

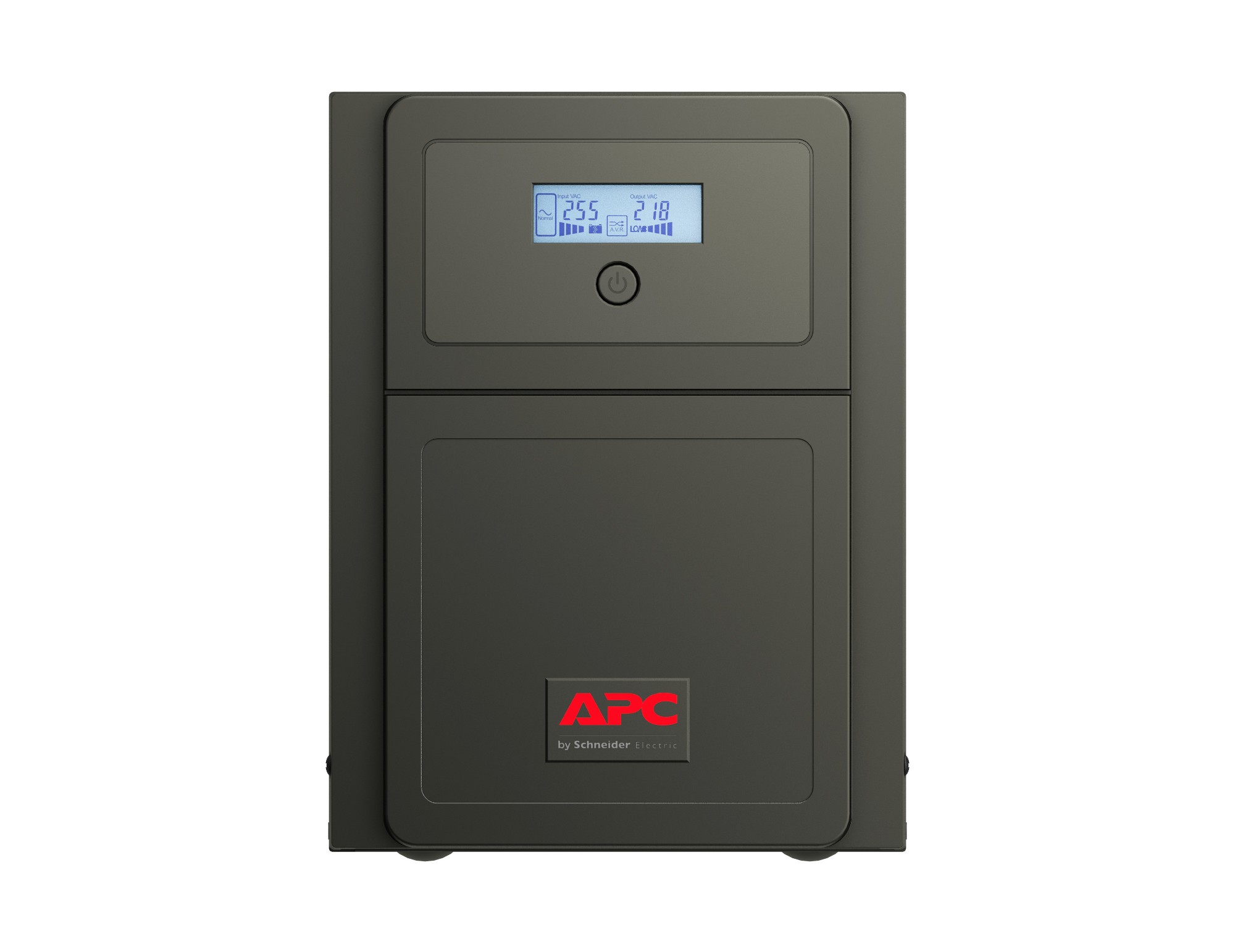

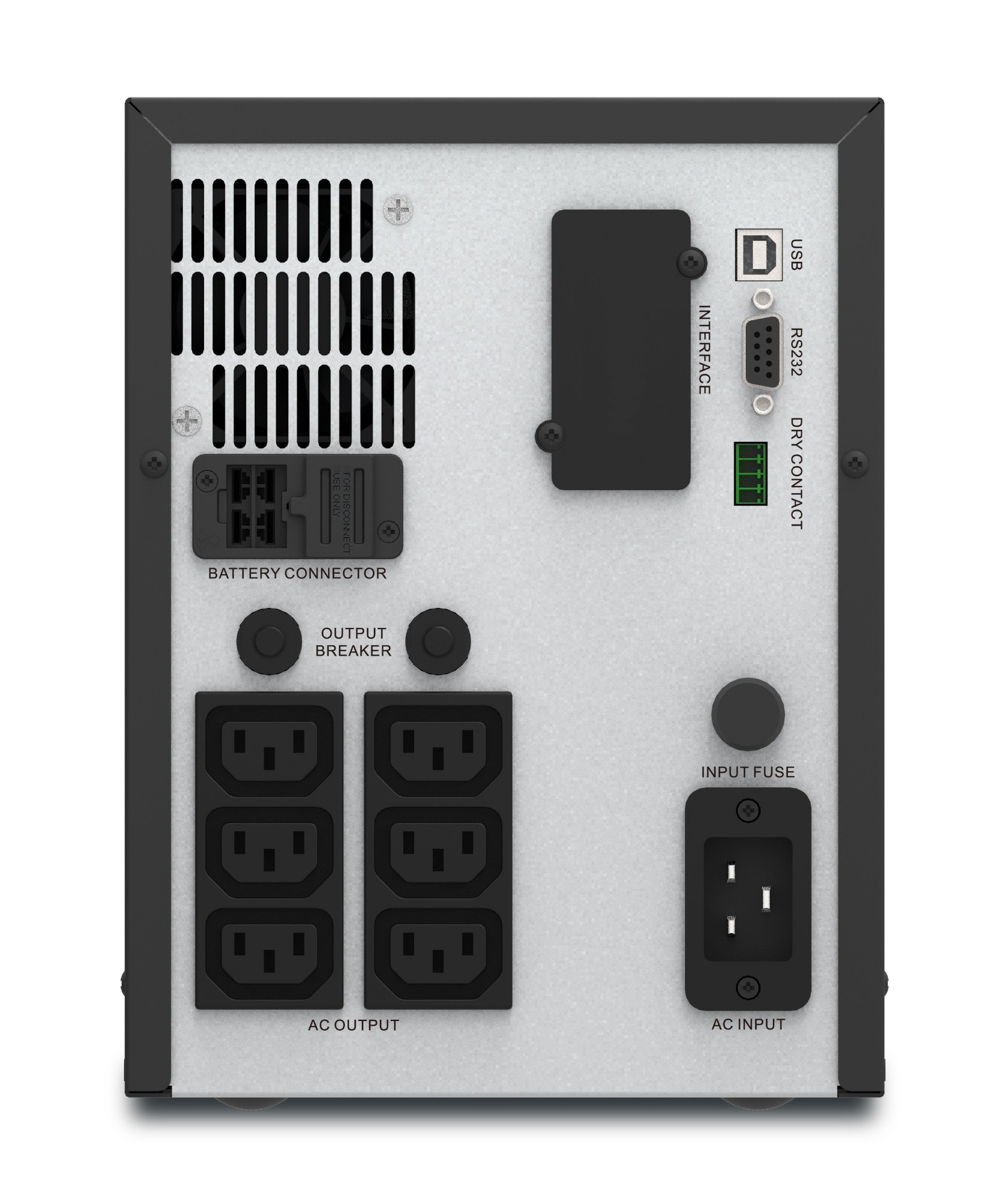

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 3kVA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C20 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV209.
Specifications
| Power | |
|---|---|
| Output voltage regulation | -1 - 1% |
| Output power | 2100 W |
| Input operation voltage (min) | 157 V |
| Input operation voltage (max) | 303 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Maximum current | 25 A |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Yes |
| Power protection features | Overload, Short circuit |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output voltage regulation | -1 - 1% |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 2100 W |
| Input operation voltage (min) | 157 V |
| Input operation voltage (max) | 303 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Maximum current | 25 A |
| Power protection features | Overload, Short circuit |
| Noise level | 45 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Input frequency | 45/65 Hz |
| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | IEC 320 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 4 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Cold start | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Weight | 25.2 kg |
| Width | 180 mm |
| Height | 240 mm |
| Depth | 455 mm |
| Battery width | 32.6 cm |
| Battery depth | 60.1 cm |
| Battery height | 41 cm |
| Battery weight | 28.9 kg |
| Packaging data | |
| Cables included | USB cable |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | CE |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
